FOOD MACHINERY, INC.

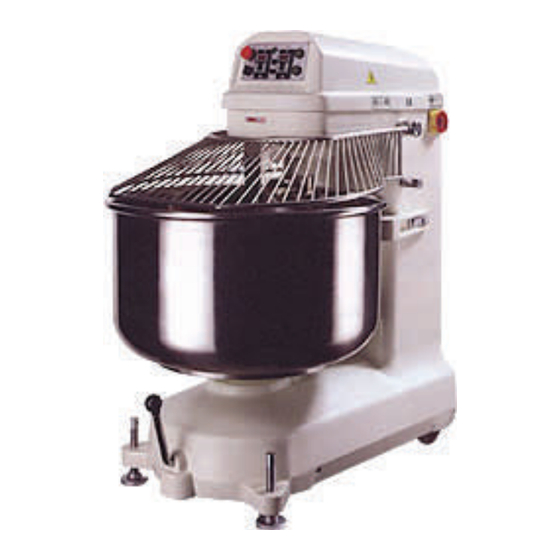

Spiral Mixer
Owner's Operating Manual
AE-3050, AE-4065, AE-5080, AE-75K, & AE-100K
A M E R I C A N E A G L E F O O D M A C H I N E RY, I N C .
3 5 5 7 S H A L S T E D S T. C H I C A G O , I L 6 0 6 0 9
T E L : 7 7 3 - 3 7 6 - 0 8 0 0 ٠ FA X : 7 7 3 - 3 7 6 - 2 0 1 0
W E B : w w w. A m E a g l e . b i z
i n f o @ a m e a g l e . b i z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE-3050 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Eagle AE-3050

  • Page 1 Spiral Mixer Owner’s Operating Manual AE-3050, AE-4065, AE-5080, AE-75K, & AE-100K A M E R I C A N E A G L E F O O D M A C H I N E RY, I N C .
  • Page 2: Table Of Contents

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual CONTENTS Features Safety Precautions Specifications Installation Diagram Installation Cleaning Electrical Connections Moving The Mixer Electrical Parts Diagram &...
  • Page 3: Features

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 1. FEATURES Heavy-duty, stainless steel spiral agitator and bowl complies with Baking Industry Sanitation Standards.
  • Page 4: Specifications

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 3. SPECIFICATIONS MOTOR Three phase motor. Separate motors drive bowl and spiral agitator. ELECTRICAL 200V/60HZ, three phase.
  • Page 5: Installation Diagram

    AE-75K 5. INSTALLATION Your American Eagle® SPIRAL MIXER is shipped fully assembled, and ready for installation. The machine must be installed on a horizontally level floor. It should be placed in a location that is convenient for both operation and maintenance. The machine’s safety features make it possible to...
  • Page 6: Cleaning

    Rinse thoroughly with a clean damp cloth. Clean under machine occasionally. To clean American Eagle® models, disconnect power cord, raise stabilizing feet and move machine. 7. ELECTRICAL CONNECTIONS...
  • Page 7: Moving The Mixer

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 8. MOVING THE MIXER To move the mixer, push down the ball-knob lever until the front wheel touches the front so that the mixer may be moved.
  • Page 8: Technical Notes

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 10. TECHNICAL NOTES DRIVEN BELT The drive belt should be installed with sufficient tension to avoid excessive slack.
  • Page 9: Panel Operation

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 11. PANEL OPERATION FUNCTION DESIRED DO THIS RESULT Manual (Continuous) Mixing Turn TOGGLE SWITCH to MANUAL...
  • Page 10: Troubleshooting After Mixing

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual Set Timer (HIGH SPEED) to desired Time is set. time and set Timer (LOW SPEED) to...
  • Page 11: Electric Wiring Diagram

    AMERICAN EAGLE FOOD MACHINERY, INC. 3557 South Halsted Street // Chicago, Illinois 60609-1606 Tel (773) 376-0800 • Fax (773) 376-2010 • www.AmericanEagleMachine.com Spiral Mixer Operating Manual 13. ELECTRICAL WIRING DIAGRAM...
  • Page 12: Warranty Information

    LABOR: American Eagle Food Machinery, Inc. will, during its normal business hours. or through an authorized service representative repair or replace inside gear box and electricity and motor parts found to be defective under this warranty without charge for labor for a period of ninety (90) days from the date of acquisition.
