M A D D O G G AT H LE TI C S , I N C .
2111 Narcissus Court • Venice, CA 90291 • USA
TEL 1 800 847 SPIN (7746) • TEL 1 310 823 7008 • FAX 1 310 823 7408
M A D D O G G AT H L E T I C S E U R O P E , B V
Industrieweg 20A • 3144 CH Maassluis • The Netherlands
TEL +31 (0) 10 590 4508 • FAX +31 (0) 10 590 0054
M A D D O G G AT H L E T I C S S R L
Via G. Ferraris 12 • 56121 - Pisa • Italy
TEL +39 (0) 50 314 0198 • FAX +39 (0) 50 316 3819
WWW.SPINNING.COM
© SPIN®, Spinning®, Spinner® and the Spinning logo are registered trademarks of Mad Dogg Athletics, Inc.
OWNER'S MANUAL
PARTS LIST
BIO™ and BIO HR™

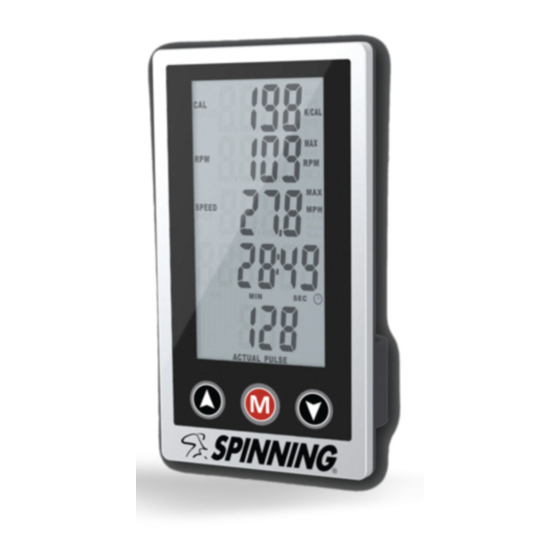

• Computer Monitor/Display
• (2) Triple AAA Batteries for Display
• Cadence Sensor–Includes CR2032 Battery
• (2) Zip ties for Cadence Sensor
• Round Handlebar Mount for Monitor
• Oval Handlebar Mount for Monitor
• Rubber Insert for Oval Mount
• Handlebar Mount Screw/Nut
INSTALLING BATTERIES IN COMPUTER DISPLAY
• Open the battery cover by flexing the tab at the top as shown.
• Insert 2 Triple AAA batteries as shown. Make sure each
battery is installed with correct +/- polarity.
• Snap battery cover back into place.
If the display is only partially visible, please reset the device by
removing the batteries for at least 15 seconds and then reinstall
them. Note that previous exercise data will be lost when
batteries are removed.
INSTALLING MOUTING BRACKET ON BICYCLE HANDLEBARS
• Mounting adapters for all Spinner® bikes are included with the computer.
• Select the proper mount for your bike from the list below.
• Stretch mount over handle bar in desired location and secure with
provided screw and nut. The screw and nut work with either mount.
Round adapter
Oval Adapter
For Sport, FIT, Pace, Ascent, and
For Edge, Aero, and Pro
Sprint Spinner® Bikes
Spinner Bikes
BIO
COMPUTER
BIO HR
COMPUTER
For BIO HR™ only
• Heart Rate Strap–Includes CR2032 Battery
Rubber Insert
For NXT, NXT
, and Blade
SR
Spinner Bikes
