User's Guide
MODELS : D46**A, D55**A
D46**B, D55**B
D46**P, D55**P
D46**L, D55**L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D46**A and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai D46**A

Summary of Contents for Hyundai D46**A

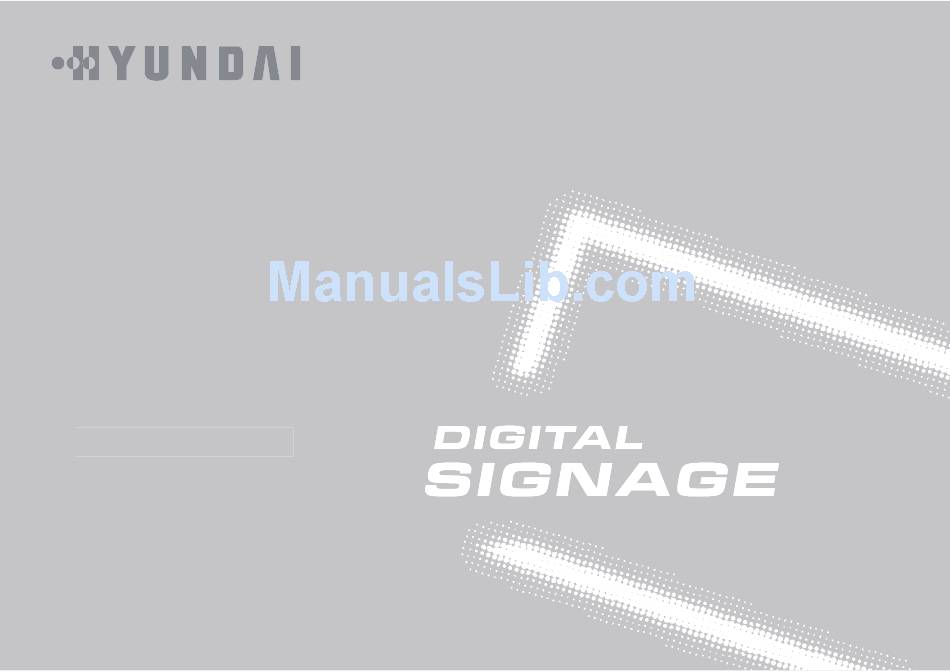

  • Page 1 User’s Guide MODELS : D46**A, D55**A D46**B, D55**B D46**P, D55**P D46**L, D55**L...

  • Page 2: Table Of Contents

    DIGITAL SIGNAGE Contents Major features ......................2 Safety Information ....................2 Be sure to understand ....................5 Check the product list ....................6 Proper location for product installation ..............7 Portrait Mode ......................8 Storage Method For Panel Protection ..............8 Installing a Bracket ....................

  • Page 3: Major Features

    DIGITAL SIGNAGE Major features This product has been designed to enable the user ease of use, and display information effectively and conveniently. The functions may vary depending on models. Safety Information This product is designed to ensure user's safety. Avoid the following items to prevent serious electric shock and other dangers. high humidity, dust etc.
  • Page 4 DIGITAL SIGNAGE call service engineer for replacement as it may cause electric shock or fire. seriously damage the special coatings on the screen. Only use water to dampen a soft cloth and lightly clear the screen. thus causing premature malfunction or fire. Please do not attempt to clean the inside of the product yourself, please contact the local service agent.
  • Page 5 DIGITAL SIGNAGE not to move itself or fall down. instructions for touch screen and/or touch screen itself. liquids, such as vases, shall be placed on the apparatus. manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury...

  • Page 6: Be Sure To Understand

    DIGITAL SIGNAGE Be sure to understand Image quality of the product CAUSE Due to the nature of LCD's property, Afterimage can occur. Afterimage appears when identical frames / images are displayed continuasly. If displayed for prolonged periods of time this can become permanent. PREVENTION When you display a freeze frame for a long time, lower the brightness and contrast COUNTERMEASURES...

  • Page 7: Check The Product List

    DIGITAL SIGNAGE Check the product list Please check the following components provided with the product after you open the box. Remote control Audio cable Power Cord HDMI cable CD Manual &Sheet RS232C Cable please check the following components provided with the product after you open the box and contact the dealer if any missing.

  • Page 8: Proper Location For Product Installation

    DIGITAL SIGNAGE Proper location for 1. Locate the product at least 30cm away from the electric appliance or heating product. 2. The product must be placed at least 10cm away from the wall and ground. product installation 4. Make sure the mounting rack firmly tightened before installation. 5.

  • Page 9: Portrait Mode

    DIGITAL SIGNAGE Portrait Mode Storage Method For Panel Protection Panel Panel Panel If the product needs to be set upright, When laying down the product, lay a If there is not a cushion available, ensure hold both sides of the product, and tilt cushion on a flat floor.

  • Page 10: Installing A Bracket

    DIGITAL SIGNAGE Installing a Bracket Bracket Vertical Bracket Corner Bracket Horizontal...

  • Page 11: Title And Function Of Each Part

    DIGITAL SIGNAGE Title and function of each Power button ; to turn the power on or off. To move down in OSD menu. part Input selection button : to select other connected To move up in OSD menu. device. To move left and control the volume down in OSD menu. Menu button : to display menu or exit from the menu.
  • Page 12 DIGITAL SIGNAGE - MODELS : D46**A, D55**A & 678 90 ! 7 0 ! UPGRADE Port : * this port is used for upgrade service HDMI IN and not for general users. & DVI OUT CVBS IN AC POWER SWITCH...
  • Page 13 DIGITAL SIGNAGE - MODELS : D46**B, D55**B D46**P, D55**P & 6 7 8 HDMI IN At the end of the model name “P” is the DVI IN DisplayPort default. DVI OUT & UPGRADE Port : This port is used for upgrade service and not AC POWER SWITCH for general users.
  • Page 14 DIGITAL SIGNAGE - MODELS : D46**L, D55**L & ** The locations of connectors may vary depending on models. When you select the "Source"button on the remote control, the "Source"menu of the "Option" item is displayed. AC IN AC POWER SWITCH UPGRADE CVBS IN HDMI IN...
  • Page 15 DIGITAL SIGNAGE Remote control ï å ç To turn the power on or off. Move up in OSD menu. é è To move left or control the volume down in OSD menu. To move right or control the volume up in OSD menu. ë...

  • Page 16: Support Timing For Hdmi/Dvi

    DIGITAL SIGNAGE Support timing for Horizontal frequency Vertical frequency Resolution HDMI/DVI 480p 640 x 480p 576p 720 x 576p 720p 1280 x 720p 50 / 60 1080i 1920 x 1080i 50 / 60 640 x 480 31.47 59.94 800 x 600 37.88 60.32 1024 x 768...

  • Page 17: Support Timing For Analog Rgb

    DIGITAL SIGNAGE Support timing for Horizontal frequency Vertical frequency Resolution Analog RGB 640 x 480 31.47 59.94 800 x 600 37.88 60.32 1024 x 768 48.36 60.00 1360 x 768 47.71 60.00 1280 x 1024 63.98 60.00 1920 x 1080 67.50 60.00 Support timing for...

  • Page 18: Adjusting Osd And Explanation Of Its Function

    DIGITAL SIGNAGE Users can automatically adjust the picture mode according to the input mode. Adjusting OSD and explanation of its 1. Press Menu button. Picture Menu items appear on the screen. function Picture Mode Custom 2. Press ↲ button to select “Picture” Icon. “Picture mode” is How to Select the Picture ÑÑ...
  • Page 19 DIGITAL SIGNAGE Users can manually adjust their desired picture How to Set the Desired Picture 1. Press Menu button. Custom Menu items appear on the screen. Brightness 2. Press ↲ button to select "Picture" Icon. Contrast "Picture mode" is highlighted. 3.
  • Page 20 DIGITAL SIGNAGE Users can adjust Color as users want. How to Select a Colour Tone 1. Press Menu button. Colour Tone Menu items appear on the screen. Colour Tone Normal 2. Press ↲ button to select "Picture" Icon. "Picture Mode" is highlighted. Green 3.
  • Page 21 DIGITAL SIGNAGE How to Set the Display Size Users can adjust the display scale as they want Picture Picture HDMI Picture Mode Picture Mode ÑÑ Custom ÑÑ Custom ÑÑ Colour Tone Wide ÑÑ Colour Tone Wide Size 4 : 3 Size 4 : 3 ÑÑ...
  • Page 22 DIGITAL SIGNAGE 1. Press Menu button. How to set image adjustment Picture Menu items appear on the screen. in PC mode 2. Press ↲ button to select "Picture" Icon. ÑÑ Auto Adjust Phase "Picture Mode" is highlighted. 3. Press ▲ / ▼ buttons to move to PC and press ▶...
  • Page 23 DIGITAL SIGNAGE Users can adjust sound mode automatically as they want. How to Select the Audio 1. Press Menu button. Menu items appear on the screen. Mode Sound 2. Press ▲ / ▼ buttons to move to “Sound” Icon. Mode Custom 3.
  • Page 24 DIGITAL SIGNAGE How to Adjust the Desired Users can adjust sound mode automatically as they want. Audio Mode Sound Sound Mode Standard Volume Balance L50 R50 ÑÑ Equalizer Auto Volume 300Hz Sound Mode Stereo 100Hz HDMI Sound HDMI U Move L Adjust Menu U Move...
  • Page 25 DIGITAL SIGNAGE How to Select Auto Volume This function will automatically give a similar volume size to each channel. 1. Press Menu button. Sound Menu items appear on the screen. Mode 2. Press ▲ / ▼ buttons to move to "Sound" Icon. Volume 3.
  • Page 26 DIGITAL SIGNAGE How to Select HDMI Sound 1. Press Menu button. Sound Menu items appear on the screen. Mode 2. Press ↲ button to select “Sound” Icon. Volume “Mode” is highlighted. Balance 3. Press ▲ / ▼ buttons to move to “HDMI Sound”. ÑÑ...
  • Page 27 DIGITAL SIGNAGE How to Reset Setup 1. Press Menu button. Menu items appear on the screen. ÑÑ Reset 2. Press ↲ button to select "Setup" Icon. ÑÑ Time "Reset" is highlighted. Language 3. Press ▶ or ↲ buttons to select to "Reset". OSD Tone 4.
  • Page 28 DIGITAL SIGNAGE Time 6. Press ▲ / ▼ buttons to move to "On or Off Timer". Clock 05 : 00 7. Press ▶ or ↲ buttons to select "On or Off Timer" . On Timer 00 : 00 8. Press ◀ / ▶ buttons to move between Hour, Minute and on/ Off Timer 00 : 00 off and Press ▲...
  • Page 29 DIGITAL SIGNAGE 1. Press Menu button. How to set OSD Setup Transparency Menu items appear on the screen. ÑÑ Reset 2. Press ↲ button to select "Setup" Icon. ÑÑ Time "Reset" is highlighted. Language 3. Press ▲ / ▼ buttons to move to "OSD Tone" OSD Tone 4.
  • Page 30 DIGITAL SIGNAGE How to select DCR 1. Press Menu button. Setup Menu items appear on the screen. ÑÑ Reset 2. Press ▲ / ▼ button to move to “Setup” Icon. ÑÑ Time 3. Press ↲ button to select "Setup" Icon. Language "Reset"...
  • Page 31 DIGITAL SIGNAGE How to select Pixelshift 1. Press Menu button. Setup Menu items appear on the screen. ÑÑ Reset 2. Press ▲ / ▼ button to move to “Setup” Icon. ÑÑ Time 3. Press ↲ button to select "Setup" Icon. Language "Reset"...
  • Page 32 DIGITAL SIGNAGE How to Set the Multi Multi Multi Function ÑÑ Temp Control H Set Count ÑÑ Multi Function V Set Count Display Sequence H Edge ADJ V Edge ADJ SET ID Master Compensation U Move U Move Menu Enter Menu Adjust 1.
  • Page 33 DIGITAL SIGNAGE Set up Value installation item Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 H Set Count V Set Count Display Sequence H Edge ADJ / V Edge ADJ It can be adjustable according to the contents SET ID Master you are using...
  • Page 34 DIGITAL SIGNAGE To connect multiple monitors HDMI Cable to the PC in HDMI/DVI mode HDMI-IN DVI-OUT HDMI-IN DVI-OUT HDMI-IN DVI-OUT HDMI-IN Product 1 Product 2 Product 3 To connect multiple monitors to the PC in RGB mode - Terminal panel : A-type, L-type PC-IN PC-OUT PC-IN...
  • Page 35 DIGITAL SIGNAGE To connect multiple monitors to the Video in Component mode Component Cable C OMPONENT T - - IN N PONENT T IN N CVBS-IN CVBS O MPONENT-OUT C OMP ONENT-O O UT O MP NENT - OU CVBS-OUT CVBS- - OUT V BS...
  • Page 36 DIGITAL SIGNAGE This function emphasizes the signal level to prevent the signal loss when the displays are chained by HDMI How to select Compensation cable. Multi Multi ÑÑ Temp Control H Set Count ÑÑ Multi Function V Set Count Display Sequence H Edge ADJ V Edge ADJ SET ID...
  • Page 37 DIGITAL SIGNAGE How to check the currently Multi Multi temperature ÑÑ Temp Control Fan Control Auto ÑÑ Multi Function Fan Active Temp 38 °C Hysteresis 5 °C Temprature U Move U Move Menu Menu Enter Enter 1. Press Menu button. Menu items appear on the screen. 2.

  • Page 38: Diagnosis

    DIGITAL SIGNAGE Diagnosis When the product is not working properly, please check before you call customer center. Symptoms How to solve the problem It happens not to show the screen noise when the power is on. Therefore it is not a Screen displays late defect.
  • Page 39 DIGITAL SIGNAGE Symptoms How to solve the problem The screen displays check the volume up and down with remote control and audio connection cable without the sound. No sound from either Confirm the status of the sound balance on OSD menu and check the connection right speaker or left of speaker cable.

  • Page 40: Specifications

    DIGITAL SIGNAGE Specifications D46KF*, D46CF* : - MODELS : D558F*, D552F* : D46**A, D55**A, D46**B, D55**B, Recommended resolution 1920 x 1080 @60Hz D46**P, D55**P Input PC Audio, Component, CVBS, Component Audio, CVBS Audio PC Audio, Component, CVBS, Component Audio, CVBS Audio...
  • Page 41 DIGITAL SIGNAGE Specifications D46**L : 1366 x 768 Pixel D55**L : - MODELS : D46**L, D55**L D46**L : D55**L : D46**L : 1360 x 768 @60Hz Recommended resolution D55**L : 1920 x 1080 @60Hz Input Output Speaker Out L/R, RS232C Power D468FL : 260 W D462FL : 220 W...
  • Page 42 < REMOTE CONTROL SPEC > 1. REMOTE CONTROL WAVE FORM 2. REMOTE CONTROL KEY CODE TABLE 1) Remote Control System Infrared rey system Custom Code : 7788H fosc=455KHZ fc=fosc/2=37.917KHZ DATA POWER 0x80 2) Signal code MUTE 0x81 • Transmission MENU 0x95 - One pulse EXIT...
  • Page 43 < RS232C COMMAND SPEC > 1. CONFIGURATION input hdmi 0x73 0x64 1) SPEED : 9600 Baud/s, 8 bit, No parity, 1 Stop bit. input dvi 0x73 0x76 2) Cable Connection input pc 0x73 0x70 input component 0x73 0x63 Input - Source input av 0x73 0x61...
