Hyundai D46KFA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Guide
MODELS : D46KFA, D46CFA,
D558FA, D552FA

Advertisement

Table of Contents
loading

Related Manuals for Hyundai D46KFA

Summary of Contents for Hyundai D46KFA

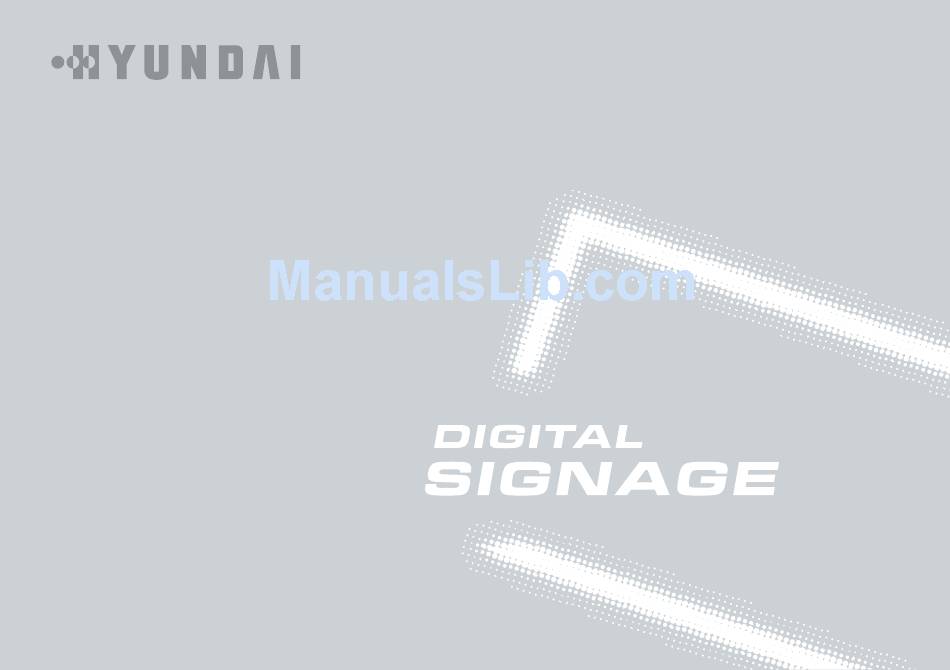

  • Page 1 User’s Guide MODELS : D46KFA, D46CFA, D558FA, D552FA...
  • Page 2 U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Declaration Of Conformity

    Manufactured at : (factory name, address) Hyundai IBT Co., Ltd. 106, Apogongdan-gil, Gimcheon-si, Gyeongsangbuk-do, 740-862 Republic of Korea We herewith confirmed to comply with the requirements set put in the Council Directive on the Approximation of the Lows of the Member States relating to Electromagnetic Compatibility Directive (89/336/EEC), Low-Voltage Directive(73/23/EEC , 93/68/EEC) .

  • Page 4: Table Of Contents

    DIGITAL SIGNAGE Contents Major features ......................2 Safety Information ....................2 Be sure to understand ....................5 Check the product list ....................6 Proper location for product installation ..............7 Installing a Bracket ....................8 Title and function of each part ................10 Adjusting OSD and explanation of its function ...........

  • Page 5: Major Features

    DIGITAL SIGNAGE Major features This product has been designed to enable the user ease of use, and display information effectively and conveniently. • TFT LCD Module adopted • Vivid digital color display • OSD control function • Automatic Image control •...
  • Page 6 DIGITAL SIGNAGE - Do not touch the power cord with wet hands, it may cause electric shock. - Overloaded AC outlets and extension cables are as dangerous as the power cord being damaged, call service engineer for replacement as it may cause electric shock or fire. - Do not use multiple devices in a single power outlet, it may cause overheating or fire.
  • Page 7 DIGITAL SIGNAGE - In case of Kiosk Model, keep installing the product on the flat location and fixing the wheels not to move itself or fall down. - On Kiosk Model, make sure to turn off the power before connecting cables. - This manual contains general instructions for the display products only so refer to the provided CD-ROM manual and the driver installation manual for the driver installation instructions for touch screen and/or touch screen itself.

  • Page 8: Be Sure To Understand

    DIGITAL SIGNAGE Be sure to understand Image quality of the product CAUSE Due to the nature of LCD's property, Afterimage can occur. Afterimage appears when identical frames / images are displayed continuasly. If displayed for prolonged periods of time this can become permanent. PREVENTION When you display a freeze frame for a long time, lower the brightness and contrast (Brightness, 70/ Contrast, 80).

  • Page 9: Check The Product List

    DIGITAL SIGNAGE Check the product list Please check the following components provided with the product after you open the box. Remote control Power Cord HDMI cable HDMI to DVI Cable (Option) CD Manual &Sheet D-SUB Cable RS232C Cable (Option) please check the following components provided with the product after you open the box and contact the dealer if any missing.

  • Page 10: Proper Location For Product Installation

    DIGITAL SIGNAGE Proper location for 1. Locate the product at least 30cm away from the electric appliance or heating product. 2. The product must be placed at least 10cm away from the wall and ground. product installation 3. Keep the product out of direct ray of light and locate screen not to be reflected by the sunlight.

  • Page 11: Installing A Bracket

    DIGITAL SIGNAGE Installing a Bracket - The contents may vary depending on models - A type...
  • Page 12 DIGITAL SIGNAGE Installing a Bracket - The contents may vary depending on models - B type...

  • Page 13: Title And Function Of Each Part

    DIGITAL SIGNAGE Title and function of each Power button ; to turn the power on or off. To move down in OSD menu. part Input selection button : to select other connected To move up in OSD menu. device. To move left and control the volume down in OSD menu. Menu button : to display menu or exit from the menu.
  • Page 14 DIGITAL SIGNAGE Terminal panel & 678 90 ! PIR SENSOR IN (Option) 7 8 ! UPGRADE Port : SPEAKER OUT * this port is used for upgrade service HDMI IN COMPONENT IN (Y/Pb/Pr) and not for general users. DVI OUT &...
  • Page 15 DIGITAL SIGNAGE Remote control    To turn the power on or off. Move up in OSD menu.   To move left or control the volume down in OSD menu.  To move right or control the volume up in OSD menu. ...
  • Page 16 DIGITAL SIGNAGE Support timing for HDMI/DVI Horizontal frequency Vertical frequency Resolution (KHz) (Hz) 480p 640 x 480p 576p 720 x 576p 720p 1280 x 720p 50 / 60 1080i 1920 x 1080i 50 / 60 640 x 480 31.47 59.94 800 x 600 37.88 60.32...
  • Page 17 DIGITAL SIGNAGE Support timing for analog RGB Horizontal frequency Vertical frequency Resolution (KHz) (Hz) 640 x 480 31.47 59.94 800 x 600 37.88 60.32 1024 x 768 48.36 60.00 1360 x 768 47.71 60.00 1280 x 1024 63.98 60.00 1920 x 1080 67.50 60.00...

  • Page 18: Adjusting Osd And Explanation Of Its Function

    DIGITAL SIGNAGE Adjusting OSD and Users can automatically adjust the picture mode according to the input mode. explanation of its 1. Press Menu button. Picture Menu items appear on the screen. function Picture Mode Custom 2. Press ↲ button to select “Picture” Icon. “Picture mode” is How to Select the Picture Custom ...
  • Page 19 DIGITAL SIGNAGE How to Set the Desired Users can manually adjust their desired picture Picture 1. Press Menu button. Custom Menu items appear on the screen. Brightness 2. Press ↲ button to select "Picture" Icon. Contrast "Picture mode" is highlighted. 3.
  • Page 20 DIGITAL SIGNAGE Users can adjust Color as users want. How to Select a Colour Tone 1. Press Menu button. Colour Tone Menu items appear on the screen. Colour Tone Normal 2. Press ↲ button to select "Picture" Icon. "Picture Mode" is highlighted. Green 3.
  • Page 21 DIGITAL SIGNAGE How to Set the Display Size Users can adjust the display scale as they want 1. Press Menu button. Menu items appear on the screen. Picture 2. Press ↲ button to select “Picture” Icon. “Picture Mode” is Picture Mode highlighted.
  • Page 22 DIGITAL SIGNAGE 1. Press Menu button. How to set image adjustment Picture Menu items appear on the screen. in PC mode 2. Press ↲ button to select "Picture" Icon. (Supported only in PC mode) Auto Adjust  Phase "Picture Mode" is highlighted. H-Posilion 3.
  • Page 23 DIGITAL SIGNAGE Users can adjust sound mode automatically as they want. How to Select the Audio 1. Press Menu button. Menu items appear on the screen. Mode Sound 2. Press ▲ / ▼ buttons to move to “Sound” Icon. 3. Press ↲ button to select “Sound” Icon. “Mode” is Mode Custom Volume...
  • Page 24 DIGITAL SIGNAGE Users can adjust sound mode automatically as they want. How to Adjust the Desired Audio Mode Sound Sound Mode Standard 10KHz Volume 3KHz Balance L50 R50 Equalizer  1KHz Auto Volume 300Hz Sound Mode Stereo 100Hz HDMI Sound HDMI ...
  • Page 25 DIGITAL SIGNAGE How to Select Auto Volume This function will automatically give a similar volume size to each channel. 1. Press Menu button. Sound Menu items appear on the screen. Mode 2. Press ▲ / ▼ buttons to move to "Sound" Icon. Volume 3.
  • Page 26 DIGITAL SIGNAGE How to Select HDMI Sound 1. Press Menu button. Sound Menu items appear on the screen. Mode 2. Press ↲ button to select “Sound” Icon. Volume “Mode” is highlighted. Balance 3. Press ▲ / ▼ buttons to move to “HDMI Sound”. Equalizer ...
  • Page 27 DIGITAL SIGNAGE How to Reset Setup 1. Press Menu button. Menu items appear on the screen. Reset  2. Press ↲ button to select "Setup" Icon. Time  "Reset" is highlighted. Language 3. Press ▶ or ↲ buttons to select to "Reset". OSD Tone Key Lock 4.
  • Page 28 DIGITAL SIGNAGE <Go to step 6 if you need to set the "On or Off Timer"> Time 6. Press ▲ / ▼ buttons to move to "On or Off Timer". Clock 05 : 00 7. Press ▶ or ↲ buttons to select "On or Off Timer" . On Timer 00 : 00 8.
  • Page 29 DIGITAL SIGNAGE How to set OSD 1. Press Menu button. Setup Transparency Menu items appear on the screen. Reset  2. Press ↲ button to select "Setup" Icon. Time  "Reset" is highlighted. Language 3. Press ▲ / ▼ buttons to move to "OSD Tone" OSD Tone 4.
  • Page 30 DIGITAL SIGNAGE How to select DCR 1. Press Menu button. Setup Menu items appear on the screen. Reset  2. Press ▲ / ▼ button to move to “Setup” Icon. Time  3. Press ↲ button to select "Setup" Icon. Language "Reset"...
  • Page 31 DIGITAL SIGNAGE This function prevents image burn-in problem on LCD screen. How to select Pixelshift 1. Press Menu button. Setup Menu items appear on the screen. Reset  2. Press ▲ / ▼ button to move to “Setup” Icon. Time ...
  • Page 32 DIGITAL SIGNAGE How to Set the Multi Multi Multi Function Temp Control  H Set Count Multi Function  V Set Count Display Sequence H Edge ADJ V Edge ADJ SET ID Master Compensation     U Move Menu U Move Menu...
  • Page 33 DIGITAL SIGNAGE Set up Value installation item Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 H Set Count V Set Count Display Sequence H Edge ADJ / These are the set up value to make up the un-displayed area of Bezel Part. V Edge ADJ It can be adjustable according to the contents It is necessary to control via RS232 communication port on PC.
  • Page 34 DIGITAL SIGNAGE To connect multiple monitors HDMI Cable to the PC in HDMI/DVI mode HDMI-IN DVI-OUT HDMI-IN DVI-OUT HDMI-IN DVI-OUT DVI-HDMI Cable (not included) Product 1 Product 2 Product 3 * When multi-connecting in/out cascade format, loss of display quality can happen. We recommend using a cable distributor.
  • Page 35 DIGITAL SIGNAGE How to select Compensation This function emphasizes the signal level to prevent the signal loss when the displays are chained by HDMI cable. Multi Multi Temp Control  H Set Count Multi Function  V Set Count Display Sequence H Edge ADJ V Edge ADJ SET ID...
  • Page 36 DIGITAL SIGNAGE How to check the currently Multi Multi temperature Temp Control  Fan Control Auto Multi Function  Fan Active Temp 38 °C Hysteresis 5 °C 32 ℃ Temprature     U Move Menu U Move Menu Enter Enter 1.

  • Page 37: Diagnosis

    DIGITAL SIGNAGE Diagnosis When the product is not working properly, please check before you call customer center. Symptoms How to solve the problem It happens not to show the screen noise when the power is on. Therefore it is not a Screen displays late defect.
  • Page 38 DIGITAL SIGNAGE Symptoms How to solve the problem The screen displays check the volume up and down with remote control and audio connection cable without the sound. No sound from either Confirm the status of the sound balance on OSD menu and check the connection right speaker or left of speaker cable.

  • Page 39: Specifications

    DIGITAL SIGNAGE Specifications 1920 x 1080 Pixel (Full HD) Model List D46KFA, D46CFA : 1018.08(H) x 572.67(V) - D46KFA Screen size (HxV/mm) D558FA, D552FA : 1209.6(H) x 680.4(V) D46CFA D558FA Recommended resolution 1920 x 1080 @60Hz D552FA PIR(option), HDMI, DVI-D(HDMI Connector), D-Sub, PC Audio L/R, RS232C,...

  • Page 40: Remote Control Spec

    < REMOTE CONTROL SPEC > 1. REMOTE CONTROL WAVE FORM 2. REMOTE CONTROL KEY CODE TABLE 1) Remote Control System Infrared rey system Custom Code : 7788H fosc=455KHZ fc=fosc/2=37.917KHZ DATA POWER 0x80 2) Signal code MUTE 0x81 • Transmission MENU 0x95 - One pulse EXIT...
  • Page 41 < RS232C COMMAND SPEC > 1. CONFIGRATION Example. 1 To power on Set ID No 1 1) SPEED : 9600 Baud/s, 8 bit, No parity, 1 Stop bit. Item HEADER SET ID COMMAND 2) Cable Connetion askii did: hexa 0x64 0x69 0x64 0x3A 0x30 0x31 0x2D 0x70 0x6E 0x2E...
  • Page 42 Item Command Description hexa Item Command Description hexa factory reset picture mode custom 0x70 0x6D 0x63 0x66 0x72 factory option view picture mode high 0x70 0x6D 0x68 “lp:?, am:?, av:?, si:?, pwm:?, mot:?.” picture mode middle 0x70 0x6D 0x68 0x66 0x6F - last power, aging, av enable, source, pwm, motion picture mode low...
  • Page 43 Item Command Description hexa Item Command Description hexa picture size center 0x70 0x63 left 0x6A picture size wide 0x70 0x77 right 0x6B osd tone off 0x6F 0x74 0x66 enter 0x65 Picture osd tone on 0x6F 0x74 0x6E menu 0x6D Option auto adjust 0x61 0x74 exit...
