Summary of Contents for MaxLab 500134
-
Page 1: Installation Guide
Passive CCTV Hub Plus (500134) Installation Guide P/N: 94-000690-A, SE-000690-A... - Page 2 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide Copyright Notice : Copyright © 2010 MuxLab Inc. All rights reserved. Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author.
-
Page 3: Table Of Contents
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Table of Contents Overview ........................4 1.1. Description......................4 1.2. Features......................4 Technical Specifications...................5 Installation Procedure....................6 3.1. Parts List ......................6 3.2. Product Overview .....................6 3.3. Pre-Installation Checklist .................7 3.4. Physical Installation..................8 3.5. Installation Procedure ..................9 Troubleshooting......................18 Distance Tables.......................19 Product Warranty Policy..................21... -
Page 4: Overview

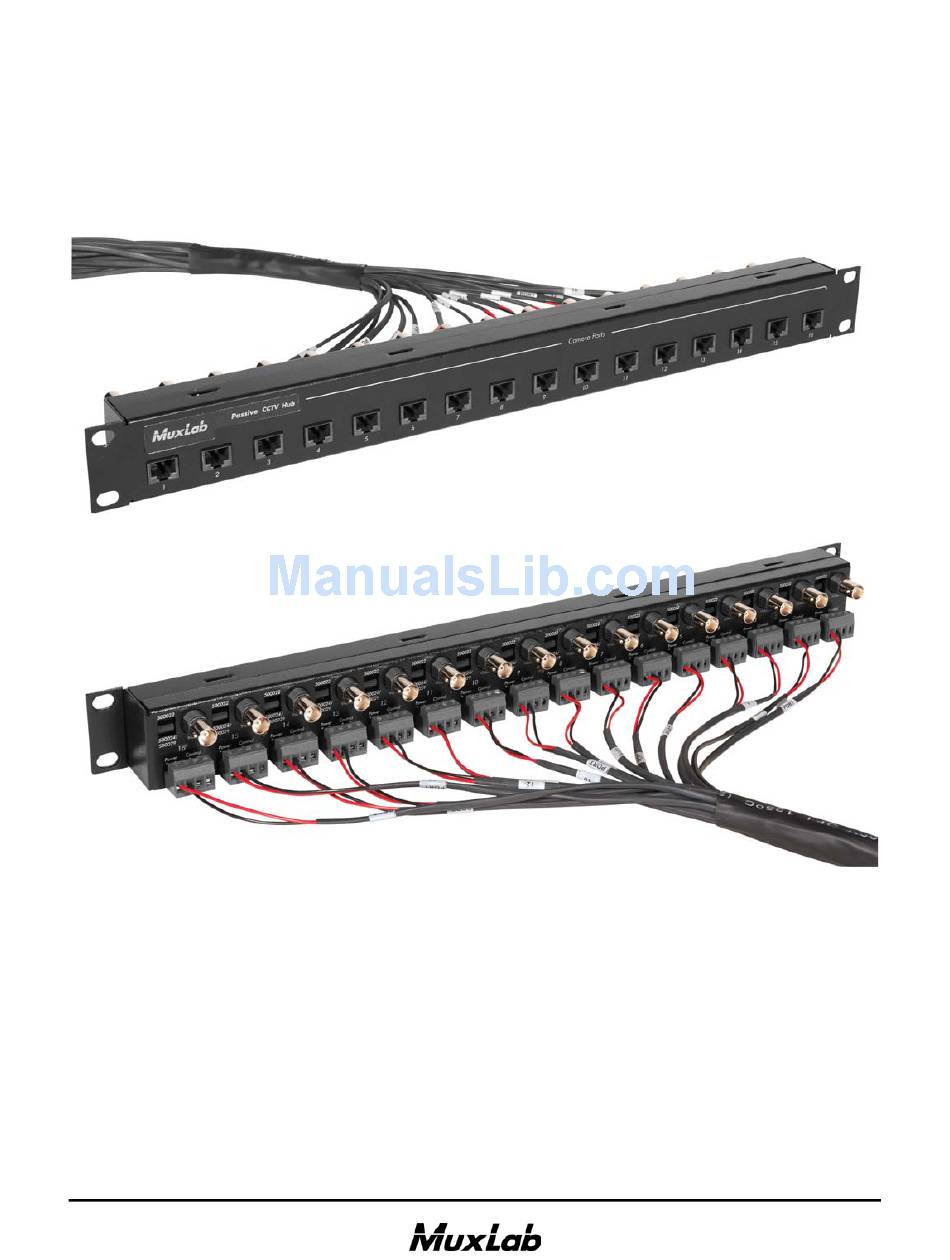

Overview 1.1. Description The Passive CCTV Hub Plus (500134) allows video, remote power and PTZ control to be transmitted via one Cat5e/6 cable, thus eliminating the need to install multiple cables for more efficient cabling in the security video environment. The hub features a detachable, factory-installed, 16-channel power cable assembly that allows the hub to be connected to a 16-channel CCTV power supply for greater ease of installation. -
Page 5: Technical Specifications
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95% Temperature Black, anodized aluminum Enclosure 19” (48.26 cm) W x 1.75” (4.4 cm) H x 2.0” ( 5.1 cm) D Dimensions Weight 2.6 lbs. (1.2kgs) Warranty Lifetime Order Information 500134 Passive CCTV Hub Plus Page 5... -
Page 6: Installation Procedure
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Installation Procedure 3.1. Parts List The Passive CCTV Hub Plus comes with the following parts. Please verify that all pieces are present before proceeding. • Base Unit (Factory configuration: Power-Thru Mode (500022) •... -
Page 7: Pre-Installation Checklist
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide 3.3. Pre-Installation Checklist The Passive CCTV Hub Plus provides a centralized sixteen (16) port CCTV copper twisted pair cabling solution. 1. The Passive CCTV Hub Plus is used in a CCTV installation to manage the video, power and control connections between the CCTV cameras and the head-end. -
Page 8: Physical Installation
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide 3.4. Physical Installation The Passive CCTV Hub Plus is a 1U, 19” rackmount unit. The factory default switch settings of each port is Pass-Thru Mode (500022). 1. Select the final destination for the product in the relay rack and install the unit using standard rackmount screws. -
Page 9: Installation Procedure
3.5. Installation Procedure The Passive CCTV Hub Plus (500134) features BNC connectors on the video portion of the device, thereby allowing it to be connected directly to the DVR via coaxial cable. In order to install the product in this configuration, please follow the steps below: 1. - Page 10 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide Port Switch Settings: 4. For each camera port, determine whether video, power and/or control is to be transmitted via the same Cat5 cable. If only video is to be transmitted, then the Power/Control terminals and port switch may be disregarded. 5.
- Page 11 16- channel CCTV power supply. 9. The lengths of wire leads are different for each port in order to provide neater cable termination on the 500134. Therefore the overall length of each 2-wire lead is as follows: Ports Total length 8 &...
- Page 12 CCTV power supply (fig 9). It is recommended to use a Class II power supply with fuse protection on each output port. Cable Assembly Rackmount 16-channels CCTV PSU Power terminals on PSU Port 16 Port 1 500134 Figure 9: Remote power connection Page 12...
- Page 13 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide PTZ Control: 12. If PTZ Control is to be transmitted to the camera, verify that the distance between the camera and the hub is within the distance specifications for sending PTZ control over twisted pair. Consult the PTZ equipment vendor for maximum distances.
-
Page 14: Troubleshooting
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Troubleshooting The following chart describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, please contact MuxLab Technical Support at 877-689-5228 (North America) or at (+1) 514 905-0588 (International) or via e-mail at videoease@muxlab.com. -
Page 15: Distance Tables
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Distance Tables The following tables provide the maximum distances for remote power via Cat5 twisted pair when a port on the Passive CCTV Hub Plus is set to Pass-Thru Mode (500022) or Power-Thru Mode (500024/500029). -
Page 16: Muxlab Inc
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Power-Thru Mode (500024/500029) Voltage Pcam (W) Vcam min (V) Dist Spec max (Feet) Dist Spec max (m) 12 VDC/AC 10.80 12VDC 10.80 AC camera 10.80 10.80 10.80 10.80 24 VAC 21.60 24VAC camera 21.60 21.60... -
Page 17: Product Warranty Policy
© MuxLab Inc. Passive CCTV Hub Plus Installation Guide Product Warranty Policy Items under warranty - Company Policy MuxLab guarantees its products to be free of defects in manufacturing and workmanship for the warranty period from the date of purchase. If this product fails to give satisfactory performance during this warranty period, MuxLab will either repair or replace this product at no additional charge, except as set forth below. - Page 18 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide Page 18...
- Page 19 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide Page 19...
- Page 20 © MuxLab Inc. Passive CCTV Hub Plus Installation Guide MuxLab Inc. 8495 Dalton Road, Mount Royal Quebec, Canada, H4T 1V5 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com Page 20...
