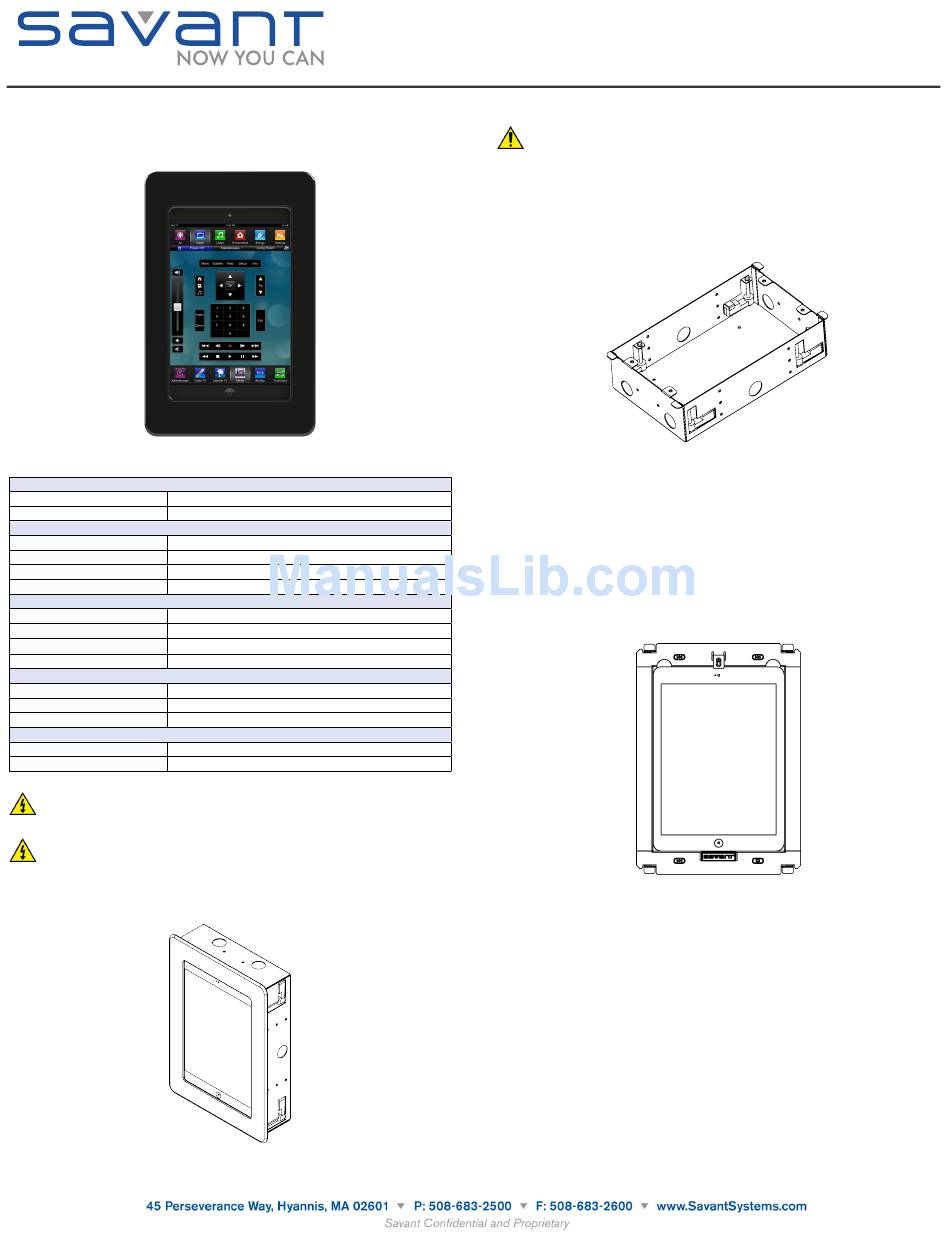

Savant IDC-20LA Quick Reference Manual

The Savant® In-Wall Wireless Charging Dock (IDC-20LA) for Apple® iPad Air Quick Reference
Guide includes information to install the IDC-20LA, IBB-200L (Back Box) and IDC-2MPLA
(Mounting Plate). The IDC-20LA is charge only and can control the system over a Wi-Fi®
connection. The IDC-20LA is comprised of one and one IBB-200L (Back Box). The ICC-20LA
dock is compatible with the iPad Air (A1474, A1475).
IDC-20LA with Bezel and TrueControl® App

Specifications

Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight (without bezel) Dimensions and Weight (without bezel)
Height 11.86in / 30.13cm
Width 8.38in / 21.29cm
Depth 2.51in / 6.37cm
Weight 5.0lb / 2.27kg (shipping weight)
Dimensions and Weight of Bezel (sold separately) Dimensions and Weight of Bezel (sold separately)
Height 12.00in / 30.48cm
Width 8.52in / 21.64cm
Depth 0.17in / 0.44cm
Weight 1.5lb / 0.680kg (shipping weight)
Power Power
Supply 24V DC, 60 watts, 100-240V AC, 50/60 Hz
Maximum Power 18 Watts
Power Cable Length 330ft / 100m maximum (AWG 22 minimum)
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
NOTE: Overall dimensions for dock, not cut out dimensions.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring
100-240V AC, 50/60 Hz source power.
ELECTRIC SHOCK: The 100-240V AC, 50-60 Hz source power poses an electric
shock hazard that has the potential to cause serious injury to installers and end
users.
ELECTRICAL DISCONNECT: Remove power before working on the dock.
IDC-20LA with Bezel and Back Box
In-Wall Wireless Charging Dock
Quick Reference Guide
Document based upon target specifications. Specifications subject to change prior to final product release.
for iPad Air TM

Back Box - IBB-200L

Important: Always locate the studs and utilities (electrical wires, ducts, water
and gas pipes) before cutting an opening in the wall. Ensure all required power
and control cables have been routed to the site of back box.
Savant requires that the Back Box be installed in the wall before installing the iOS device in the
Mounting Plate.
NOTE: The In-Wall Dock assembly is not a weather resistant unit. Do not locate in a damp or
humid area.
Angled View of IBB-200L
Box Contents
(1) Back Box
(1) Cut out template (009-0926-xx)
(1) Quick Reference Guide (this document)

Installation of the Back Box

1. Align the box to the stud, if available. Back box can be either horizontal or vertical.
2. Attach the box to the stud using nails/screws provided by the installer or use the flags that
are attached to the Back Box. Do not use a powered screwdriver to tighten the tabs; the tabs
can be easily over tightened.
3. Feed power cable through selected knockout and tie off rough wires, as required.

Mounting Plate - IDC-2MPLA

Front View of IDC-2MPLA
Box Contents
(1) Mounting Plate for In-Wall Wireless Charging Dock (168-0016-xx)
(1) Installation Kit (075-0150-xx)
(1) 24V DC 60 Watt Power Supply (025-0046-xx)
(1) Power Cable (2 ft) (064-0048-xx) or appropriate International cord
(2) 2-position Phoenix Connector (028-9160-xx)
(4) 6-32 x ½" Phillips Flat Screws (039-0262-xx)
(1) Tamper Resistant Screw
(1) Tamper Resistant Screw Bit
(1) Quick Reference Guide (this document)

Accessories

In-Wall Dock Bezel (BXX-100LX-xx)
See Tech Specs for style, color options, and quantity for bezels.
009-1146-00
IDC-20LA-00
IDC-2MPLA-00
IBB-200L-00
030314
