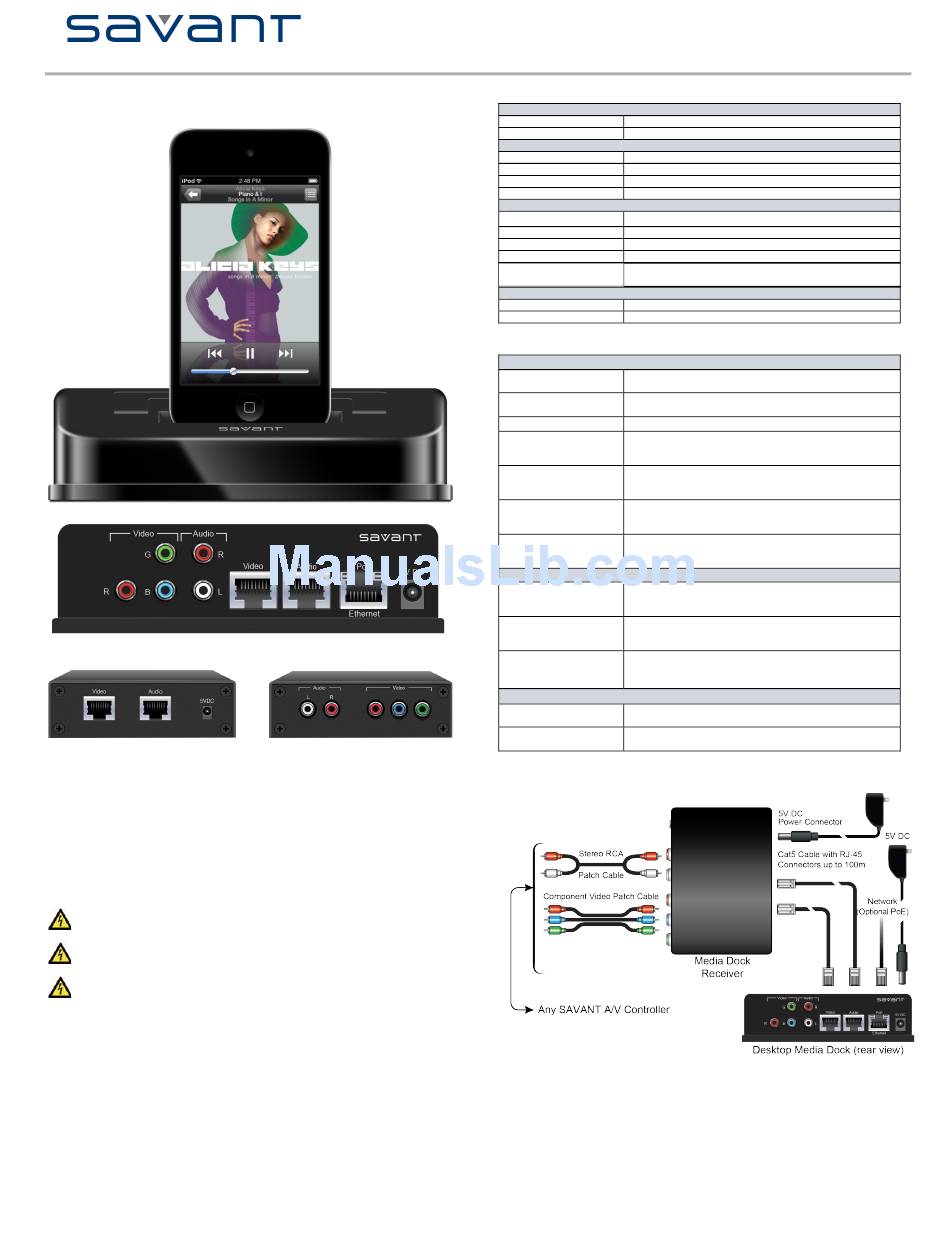

Savant DDS-P20B Quick Reference Manual

The Savant® Desktop Media Dock Solution (Black DDS-P20B or White DDS-P20W) Quick
Reference Guide provides the information necessary to install the Desktop Media Dock
Solution for Apple iOS devices.
Desktop Media Dock - Rear View
Media Dock Receiver – Front and Rear View

Box Contents

(1) Desktop Dock (DDS-P20B/DDS-P20W)
(1) 5V DC 2.5 Amps Power Supply (025-0098-xx)
(1) Media Dock Receiver (068-0305-xx)
(1) Installation Kit for MDR (075-0122-xx)
(1) 5V DC 2.5 Amps Power Supply (025-0098-xx)
•
(2) Mounting Bracket (071-0494-xx)
•
(8) #6 x 1/4 Screw (039-0143-xx)
•
(1) Quick Reference Guide (this document)
ELECTRICAL DISCONNECT: The 5V DC power adapter connected to the Desktop
Media Dock should be easily accessible in the event of an electrical malfunction.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring 120V
AC, 50/60 Hz source power.
ELECTRICAL DISCONNECT: The 120V AC, 50/60 Hz source power outlet and input
power sockets should be easily accessible in the event of an electrical hazard or
malfunction condition.
Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
Apple®, iTunes®, iPod touch®, iPod® classic and iPod nano® are registered trademarks or trade names of Apple Inc.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
45 Perseverance Way, Hyannis, MA 02601
Desktop Media Dock Solution
(DDS-P20B/DDS-P20W)
Quick Reference Guide

Specifications

Environmental
Operating Temperature
Operating Humidity
Desktop Dock – Dimensions, Weight and Power
Dimensions (H x W x D)
Weight
Power Supply
Maximum Power Draw
Media Dock Receiver – Dimensions, Weight and Power
Dimensions (H x W x D)
Weight
Power Supply
Maximum Power Draw
PoE Optional
Compliance
Safety and Emissions
RoHS
Connections
Desktop Media Dock - Rear
5VDC (input power)
Video R, B, G (Output)
For Local use only
Audio R, L (Output)
Video
Audio
PoE/
Ethernet
Link/Activity LED
(On Ethernet)
Media Dock Receiver - Front
Video
(Input from Media Dock)
Audio
(Input from Media Dock)
5VDC
(Input power from power
source)
Media Dock Receiver - Rear
Audio L, R
(Output)
Video R, B, G
(Output)
Typical Configuration
Phone 508.683.2500 Fax 508.683.2600
32º to 104º F (0º to 40º C)
10% to 90% Non-condensing
1.67 in x 5.95 in x 4.15 in (4.23 cm x 15.11 cm x 10.54 cm)
1.0 lb/0.45kg
5V DC, 120-230V AC, 50/60 Hz
8 Watts
1.27 in x 4.23 in x 6.20 in (3.23 cm x 10.73 cm x 15.74 cm)
1.5 lb/0.68 kg
5V DC, 120-230V AC, 50/60 Hz
2 Watts
RJ-45 10/100 Base-T, Power over Ethernet using the PoE
IEEE 802.3af standard.
FCC Part 15 /CE Mark/C-Tick
Compliant
Port Type: 4 mm x 1.35 mm 5V DC barrel power jack
connector, 120V AC, 50/60 Hz
Port Type: RCA (Component)
Port Type: RCA (Stereo)
Port Type: RJ-45
Up to 100 meters
Used in conjunction with MDR-2000
Port Type: RJ-45
Up to 100 meters
Used in conjunction with MDR-2000
Port Type: RJ-45
Cable: Cat 5, use for system control (data) and PoE IEEE
8.3af standard
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.
Port Type: RJ-45
Cable: Cat 5, use for video transmission
Up to 100 meters
Port Type: RJ-45
Cable: Cat 5, use for audio transmission
Up to 100 meters
Port Type: 4 mm x 1.35 mm 5V DC barrel power jack
connector
120-240V AC, 50/60 Hz
Port Type: RCA (Stereo)
Port Type: RCA (Component)
Savant Confidential and Proprietary
SavantSystems.com
009-0501-00
DDS-P20B-00
DDS-P20W-00
031312
