Tornado Cloud Traveler CT300 User Manual

Portable wireless router/hotspot/repeater
Hide thumbs Also See for Cloud Traveler CT300:
Table of Contents

Advertisement

Quick Links

Cloud
Traveler
Laptop
Smartphone
Tablet
USB File Sharing
Portable Wireless Router/Hotspot/Repeater
1. Extends the coverage of wireless networks
2. Wireless access to USB storage devices
3. High Power charger for Smartphones and Tablets
4. Can be controlled via Smartphones and Tablets
™
1
User Manual
FREE
FREE
APP
TORNADO Cloud Traveler CT300 User Manual 1.0
PP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cloud Traveler CT300 and is the answer not in the manual?

Questions and answers

Related Manuals for Tornado Cloud Traveler CT300

Summary of Contents for Tornado Cloud Traveler CT300

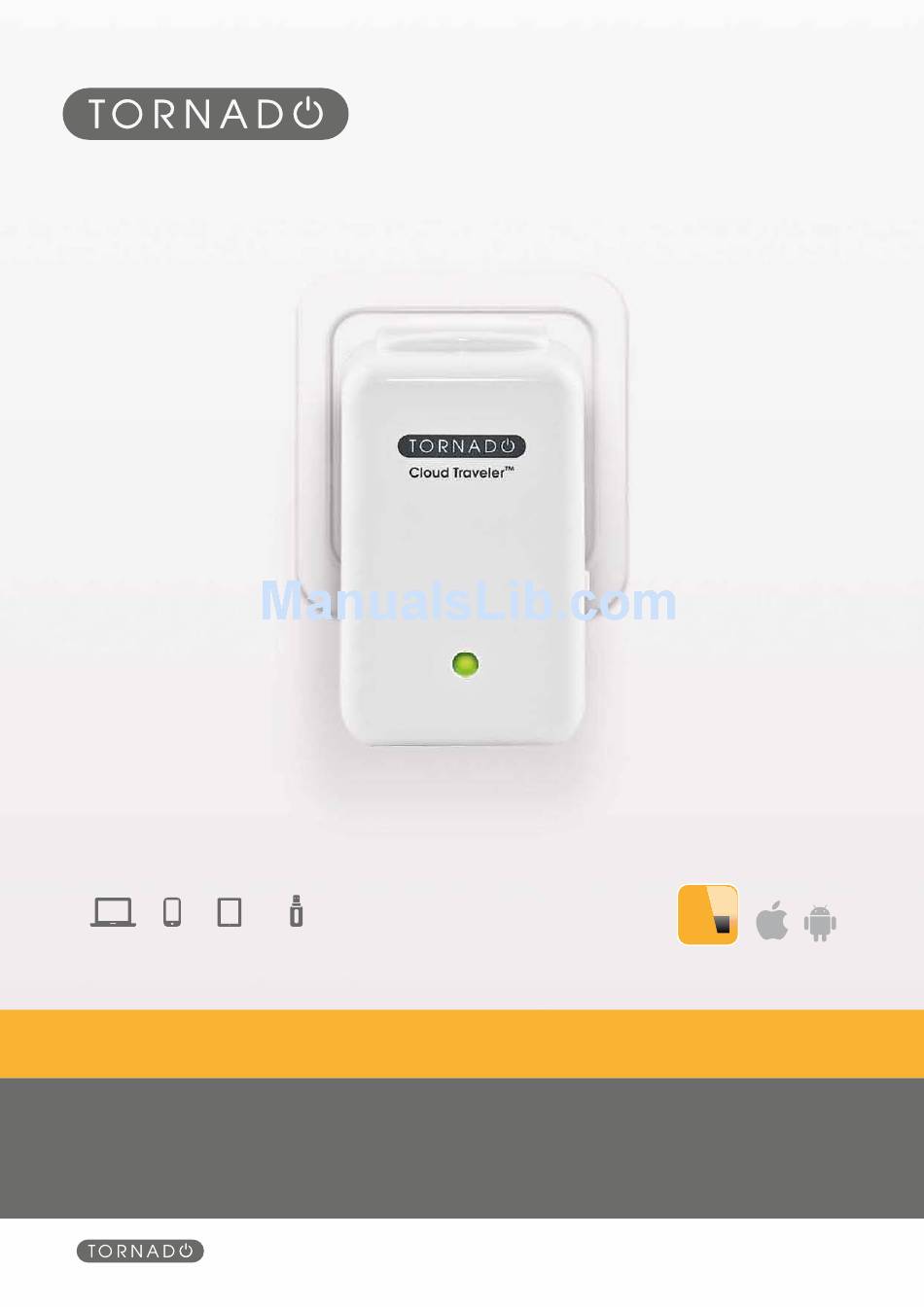

  • Page 1 Portable Wireless Router/Hotspot/Repeater 1. Extends the coverage of wireless networks 2. Wireless access to USB storage devices 3. High Power charger for Smartphones and Tablets 4. Can be controlled via Smartphones and Tablets TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 2 CAUTION! The Federal Communication Commission warns the user that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 3: Table Of Contents

    ............................48 4.2 Setting ................................49 4.2.1 Gateway Mode ............................49 4.2.2 Hotspot Mode ............................50 4.2.3 Wireless Setting ............................. 51 4.3 Access USB Device ............................52 Appendix A: Troubleshooting ........................54 TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 4: Introduction

    1.3 Package Contents The Cloud Traveler™ package contains the following items: - Cloud Traveler™ - AC plug (x 3) If any of the above items are damaged or missing, please contact your dealer immediately. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 5: Knowing Cloud Traveler

    Support DC5V up to 2.1A. The lower USB Port (red Circle) is only for charging. Do not plug any USB device to this charging port. 2.3 Power ON/OFF The Power ON/OFF Button of Cloud Traveler™. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 6: Hardware Connection

    3. Configure your Cloud Traveler™ to Android Mobile mode. 4. Now Wi-Fi devices can access the Internet over your Smartphone 3G network. Figures on the following page show the overall hardware connection mechanism of your Cloud Traveler™. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 7 Home / Media Hotspot mode Media Cloud for wider WiFi coverage Wireless xDSL WiFi Internet Laptop Smartphone Tablet HDD/Flash Drive Studio / SME Personal Cloud WiFi Internet Laptop Smartphone Tablet Studio Internet ETHERNET TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 8: Configuration Via Pc

    This chapter will explain the functions in the Web GUI. Please turn ON the wireless adapter on the PC first. 3.1 Connecting to Cloud Traveler Step 1: Open Control Panel -> Network and Sharing Center. Step 2: Click on the Connect to a network. Step 3: Choose TORNADO CLOUD TRAVELER and connect. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 9: Connecting To Cloud Traveler

    Password: admin. Then press OK to login. 3. There are Wizard, WAN, System Setting, Wireless and FileServer icons to help you to configure the Cloud Traveler™ easily. Wizard Settings Wireless FileServer TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 10: Wizard

    Cloud Traveler ™ 3. Configuration via PC 3.3 Wizard Click on Wizard and the following screen will pop-up: Click Next >> button to continue. Choose Gateway or Hotspot or Repeater mode. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 11: Gateway Mode

    WiFi Internet Laptop Smartphone Tablet ETHERNET Internet ADSL / Cable Modem Select WAN access from the drop-down list. - DHCP: If you are using DHCP client, just click Apply changes to save the setting. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 12 - Static IP: Please fill in IP address, subnet mask, Default Gateway, DNS IP address if you are using a Static IP. - PPPoE: Please enter the username and password if you are using a PPPoE connection. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 13 3G USB Modem Please enter the information of APN service name, PIN code, dial number, account name and password if you choose USB3G if you want to use your 3G USB card to access Internet. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 14 Android Mobile Cloud Traveler ™ WiFi Internet Laptop Smartphone Tablet Android Mobile Select Android Mobile in WAN Access Type then click Apply Changes. Click Next >> button to continue. Enter a wireless SSID. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 15 Select Encryption and key. - None - WEP-64bits - WEP-128bits - WPA PSK - WPA2 PSK - WPA2 Mixed Click Finished button to accept the settings. Enter status page to check the information in Gateway mode. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 16: Hotspot Mode

    It also extends the range of the wireless network coverage. WiFi Internet Wireless xDSL Laptop Smartphone Tablet To configure the Cloud Traveler™ to Hotspot mode: 1. Click Scan network button and select a root AP router to connect. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 17 ™ 3. Configuration via PC Select Encryption and key of the root AP router and click the Finished button to save the settings. Enter Status page to check the information in Hotspot mode. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 18: Repeater Mode

    It extends the range of the wireless network coverage. WiFi Internet Wireless xDSL Laptop Smartphone Tablet To configure the Cloud Traveler™ to Repeater mode: 1. Click Scan network button and select a root AP router to connect. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 19 ™ 3. Configuration via PC Select Encryption and key of the wireless AP router and click the Finished button to save the settings. Enter Status page to check the information in Repeater mode. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 20: Wireless

    The selections are Auto, 1M, 2M, 5.5M, 11M, 6M, 9M, 12M, 18M, 24M, 36M, 48M, 54M, MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6 and MCS7. Apply Changes Change the settings. New parameters will take effect after save into flash memory and please reboot device. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 21: Wan

    This page is used to configure the parameters for an Internet network which connects to the WAN port or USB port of the Cloud Traveler™. Here you may change the access type to static IP, DHCP, PPPoE, USB3G or Android Mobile by choosing the value of the desired WAN Access type. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 22: File Server

    Android Phone to enable USB storage. Flash Drive Cloud Traveler ™ USB Hard Drive WiFi Internet Laptop HDD/Flash Drive Smartphone Tablet HDD/Flash Drive Card Reader Cloud Traveler ™ WiFi Internet Laptop Smartphone Tablet SD Card Reader TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 23 Click the Upload icon and choose a file to upload to the flash drive which that is connected to the Cloud Traveler™. - Refresh Refresh the contents of the USB disk. Click Eject U-disk to eject your USB disk safely. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 24: System Setting

    Click the System Setting icon and you can view the wireless link in the left navigation bar. Following are the options available under wireless: - Basic Settings - Active Clients - Advanced Settings - Security - Hotspot Mode TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 25: Basic Settings

    The selections are Auto, 1M, 2M, 5.5M, 11M, 6M, 9M, 12M, 18M, 24M, 36M, 48M, 54M, MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6 and MCS7. Apply Changes Change the settings. New parameters will take effect after save into flash memory and please reboot device. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 26: Active Clients

    This page is for advanced users who have sufficient knowledge of wireless LAN settings. These settings must not be changed unless you know exactly what the effect of these changes in the network settings will be. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 27 20MHz and 40MHz bandwidth will coexist when enabled. - RF Output Power RF Output power level 100%, 70%, 50%, 35%,15% Apply Changes Change the settings. New parameters will take effect after save into flash memory and please reboot device. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 28: Security

    8 to 63 bytes long; or if the “Pre-Shared Key Format” is specified as PassPhrase, then it indicates a 64-hexadecimal number. Apply Changes Change the settings. New parameters will take effect after save into flash memory and please reboot device. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 29: Hotspot Mode

    ™ 3. Configuration via PC 3.7.1.5 Hotspot Mode To configure the Cloud Traveler™ to Hotspot mode: 1. Click Scan network button and select a root AP to connect. Click Connect button to continue. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 30 Cloud Traveler ™ 3. Configuration via PC 2. Select Encryption and fill in the key of the root AP and click the “Finished” button to save these settings. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 31: Tcp/Ip Settings

    Click to show the DHCP clients. - Set Static DHCP Click to set static DHCP. - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 32 Function buttons for the Static DHCP list:: - Delete Selected Delete the selected entries from the list. - Delete All Flush the list. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 33: Wan Interface

    - Enable Web Server Access on WAN Click to enable Web remote management from WAN. Function buttons for this settings block: - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 34 Click to enable Web remote management from WAN. Access on WAN Function buttons for this settings block: - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 35 Maximum Transmission Unit. The largest size packet that can be sent by the modem. If the network stack of any packet is larger than the MTU value, then the packet will be fragmented before the transmission. Default is 1452 bytes. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 36 Click to abort change and recover the previous configuration. 3.7.2.2.4 USB3G Connect your 3G USB card to the USB port of the Cloud Traveler™. You can share your 3G Internet connection with other Wi-Fi enabled devices. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 37 Click to disconnect ISP. It is available when you choose manual in connection type. - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 38 Click to enable Web remote management from WAN. Access on WAN Function buttons for this settings block: - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 39: Management

    - Upgrade Firmware - Save/Reload Settings - Password - Reboot - Logout 3.8.1 Statistics This page shows the packet counters for transmission and reception regarding to the Wireless LAN and Ethernet WAN networks. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 40: Time Zone Setting

    Function buttons for this settingss block: - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. - Refresh Click to refresh the configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 41: Log

    - Log Server IP Address Fill in the IP address of Log server. Function buttons for this settings block: - Apply Changes Click to apply the new configuration. - Refresh ..- Clear ..TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 42: Upgrade Firmware

    1. Click the Browse button to select the firmware file. 2. Confirm your selection. 3. Click the Upload button to start upgrading. IMPORTANT! Do not turn off your device or press the Reset button while this procedure is in progress. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 43: Save/Reload Setting

    1. Click the Browse button to select the setting file. 2. Confirm your selection. 3. Click the Upload button to start uploading. - Reset Click to reset settings to default. The Cloud Traveler™ will reboot. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 44: Password

    Fill in new password again to confirm. Function buttons for this settings block: - Apply Changes Click to apply the new configuration. - Reset Click to abort change and recover the previous configuration. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 45: Reboot

    Traveler ™ 3. Configuration via PC 3.8.7 Reboot This page is used to reboot the Cloud Traveler™. 3.8.8 Logout This page is used to logout from the web interface of the Cloud Traveler™. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 46: Configuration Via Smart Phone

    4.1.1 Android Phone/Tablet 1. Please enter the Wi-Fi Settings of your Smartphone/Tablet and connect to the Cloud Traveler™ first. 2. Tap “Play Store” and search “Cloud Traveler” APP. Tap it to download the APP. TORNADO Cloud Traveler CT300 User Manual 1.0...
  • Page 47 3. Tap “Install” to install the APP. Tap ‘Open’ to run the APP, you will see the homepage. 4. You can find the Cloud Traveler icon in the application list when you want to run this APP the next time. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 48: Iphone/Ipad

    2. Go to APP Store and fill in “Cloud Traveler” to search for the APP. Tap it to download and install the APP. After installation, there will be a Cloud Traveler™ icon on the Home screen. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 49: Setting

    4.2.1 Gateway Mode 1. Touch Setting -> Internet 2. Touch Choose and select DHCP. 3. Touch “Submit” to apply these settings. Settings are saved. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 50: Hotspot Mode

    5. When AP’s encryption is WPA/WPA2, enter the pre-shared key of the wireless AP. Touch “Join” to continue. 6. When AP’s encryption is WEP, choose Key Length, Key Format and enter the WEP key of the wireless AP. Touch “Join” to continue. 7. Settings are saved. Touch Confirm to exit. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 51: Wireless Setting

    40MHz. Fill in the SSID. Touch Submit to confirm these settings. 3. Settings are saved. Device is now rebooting and you have to reconnect to it via Wi-Fi when you have changed the SSID and/or Pre-Shared Key. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 52: Access Usb Device

    1. Touch USB Device It will show the directories and files on the USB HDD or Flash Drive. Choose the video or music file you want to stream from the Cloud Traveler™ to your iPhone/iPad. TORNADO Cloud Traveler CT300 User Manual 1.0...

  • Page 54: Appendix A: Troubleshooting

    If needed, you can now restore your saved configuration settings or apply new ones. Allied Data Technologies International BV Pascalweg 1 3208 KL Spijkenisse The Netherlands www.allieddata.com support@nl.allieddata.com Copyright 2012 - All rights reserved TORNADO Cloud Traveler CT300 User Manual 1.0...
