Tornado 251
Installation
and
User Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 251 and is the answer not in the manual?

Questions and answers

Related Manuals for Tornado 251

Summary of Contents for Tornado 251

  • Page 1 Tornado 251 Installation User Guide...

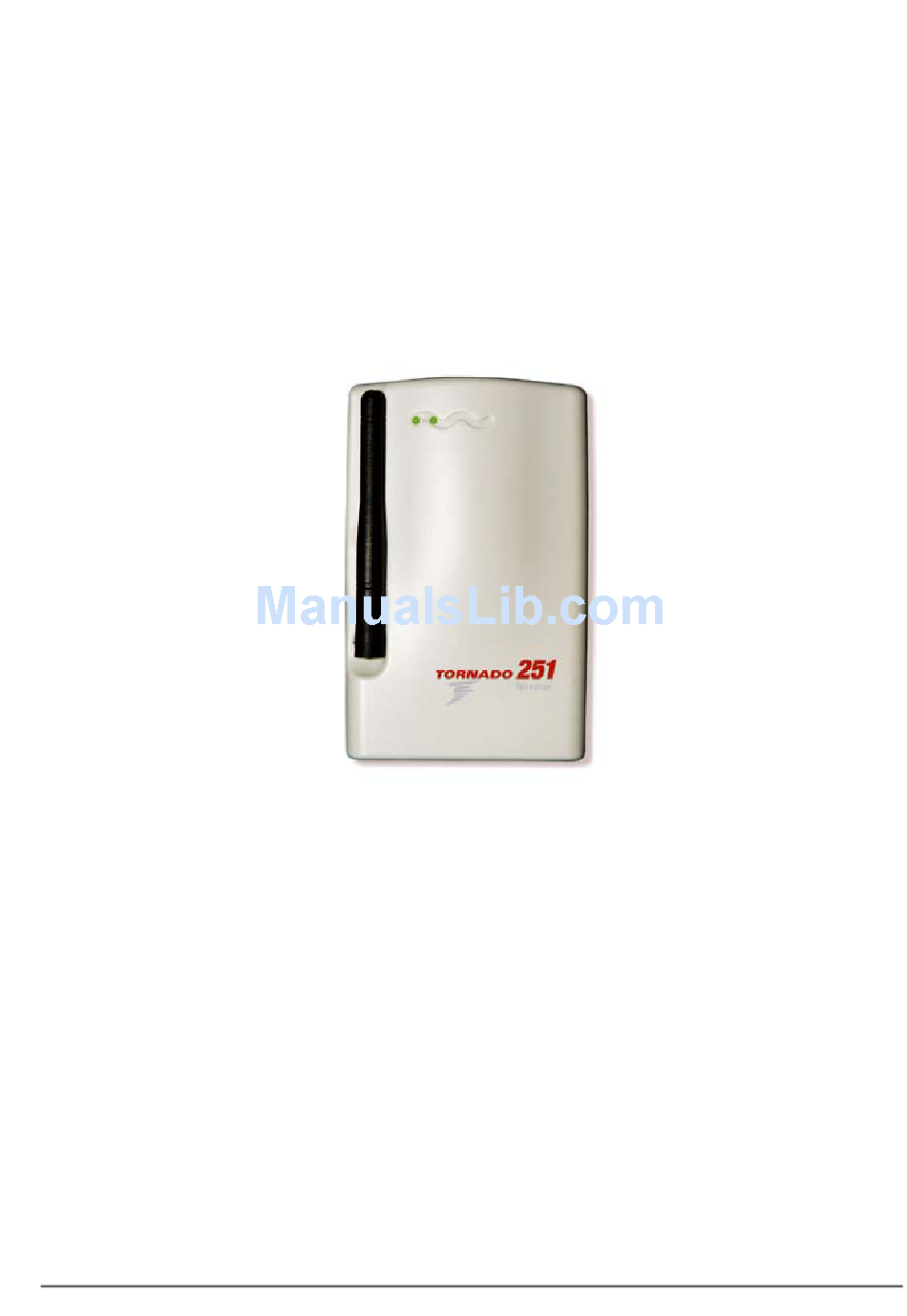

  • Page 2 Tornado 251 takes you beyond the world of cords and cables, providing you with a non-invasive, wireless, broadband home network. The Tornado 251 system consists of two outlets. The Tornado 251 INT serves as the basis of your home wireless network, while Tornado 251 XTN extend that network to every corner of your home.

  • Page 3: Preparing To Install

    * (Depends if you have an single or twin pack) Installing Tornado 251 XTN Outlets If you are installing a Tornado 251 XTN outlet, select an installation location in the area you need to boost your network’s signal strength (See figure 1).
  • Page 4 Installing your outlet Set the rotary dial on the back of your Tornado 251 XTN outlet to the channel for your network. Figure 3: Rotary Dial Channel selector WiFi channel XTN rotary Channel 1-9 Channel 1-9 Channel 10 Channel A...
  • Page 5 Figure 4: Mounting The Base Tighten the screws on the telephone jack’s wall plate. Plug the outlet into the telephone jack using the RJ-11 adapter on the back of the outlet. Figure 5: Connecting With RJ-11 Insert the tabs on the bottom of the outlet into the slots on the bottom of the base (1); then press the outlet flat against the base until it snaps into place (2).
  • Page 6 Selects power transmission and receives sensitivity levels. Default settings are Low for reduced radiation. Set to High only when large coverage area is needed. Note: If the antenna switch is in High position the distance between the Tornado 251 XTN’s must be at least 30 feet.
  • Page 7 Specifications Technical specifications for Tornado 251 XTN outlets follow: Table 1: Tornado 251 XTN Specifications INT IEEE-802.11g Standards IEEE-802.11g, IEEE-802.11b Channels 11 Channels (US and Canada) 13 Channels (Europe) 14 Channels (Japan) Telephony Interface Connections 2 x RJ-11 Telephony Functionality...
