BlueEyes iCam PRO Operation Manual

Full hd camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation Manual
VER V1.0.20-10-B853
2015/10/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the iCam PRO and is the answer not in the manual?

Questions and answers

Related Manuals for BlueEyes iCam PRO

Summary of Contents for BlueEyes iCam PRO

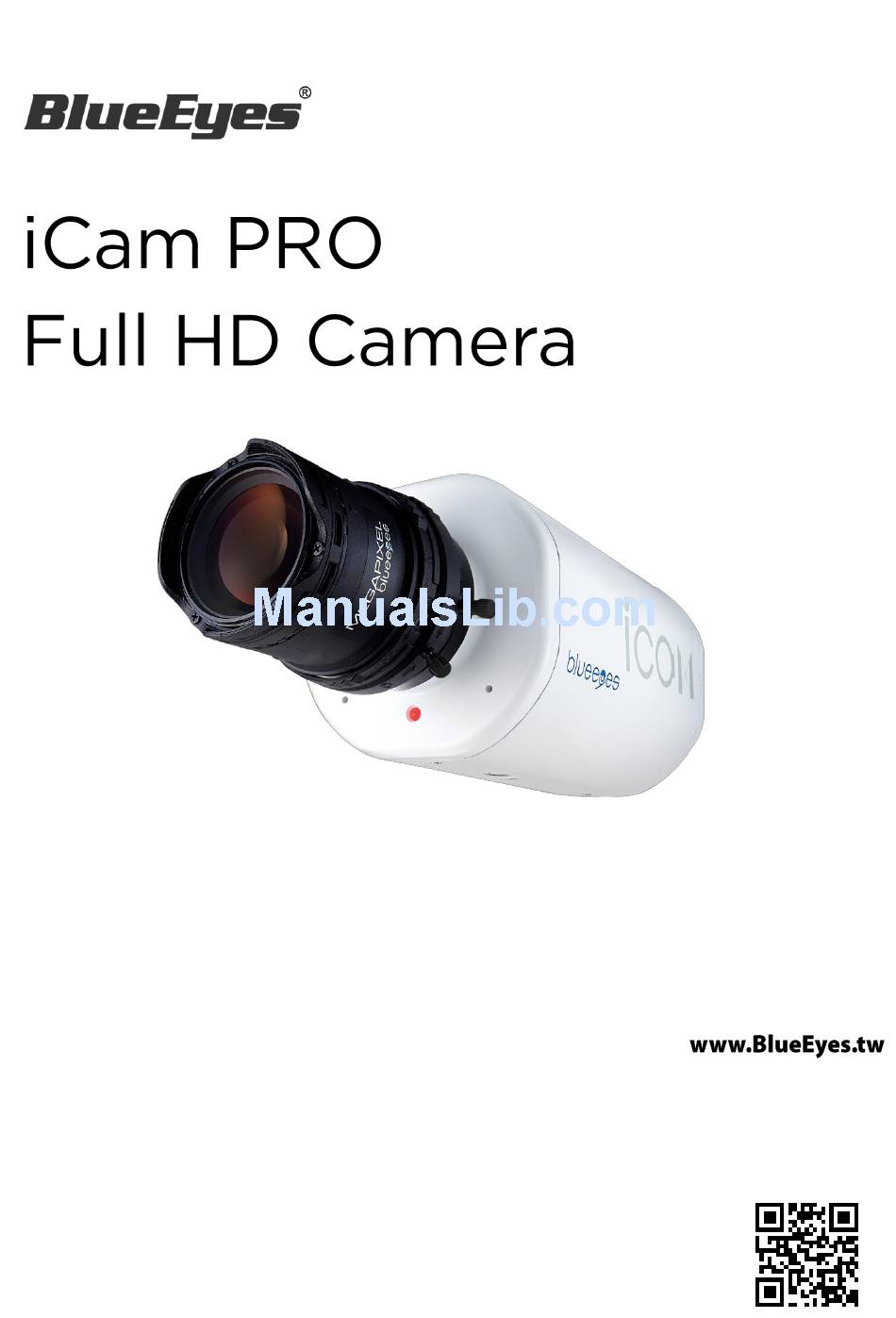

  • Page 1 Operation Manual VER V1.0.20-10-B853 2015/10/13...
  • Page 2 If you want to get the latest product information, operation manual, firmware, or you have any question to the products of BlueEyes Technology, please contact your local agent or go to the official website of BlueEyes Technology for further information.

  • Page 3: Table Of Contents

    2. Safety and Precautions ..........................6 3. Device Description ............................7 3.1 Back Panel ..............................7 3.2 Fixed iCam PRO Camera ..........................8 3.3 Scanning iCam PRO Camera ......................... 8 3.4 Live Video ..............................9 4. Location of Camera ............................. 10 4.1 Location of Camera .............................
  • Page 4 【Question 6】Ripple shows when using projector or digital board .............. 38 【Question 7】The video file cut into one or several pieces ................39 【Question 8】How to restore to default? ..................... 39 【Question 9】How to reduce background noise ................... 40 BlueEyes Technology www.BlueEyes.tw...
  • Page 5 BlueEyes Technology develops the Full HD Camera especially for the education institute environment and registers the trademark as iCam® . Now we have iCam PRO. It not only reserves the high quality of shooting, but a lso upgrades the sound receiver which build-in camera and have the best distance---38 mm between two microphones.

  • Page 6: Features

    More information and features, please check official website of BlueEyes Technology: http://www.blueeyes.com.tw/iLearning_iCam.php BlueEyes Technology www.BlueEyes.tw...
  • Page 7 – Please do not disassemble, re-design or maintain the device by yourself. – The processors and accessories all pass the safety test of CE and FCC. Please turn off iCam PRO, including power, network, sound and video to avoid the damage from thunder. According to BlueEyes warranty rules, thunder is one of natural disaster which has no guarantee.

  • Page 8: Back Panel

    10/100 speeds. VIDEO Connect to video equipment, such as a monitor or projector. LINE IN Connect to an audio input source. Do not test or connect the interface not commonly used. It may cause instability of the system. BlueEyes Technology www.BlueEyes.tw...

  • Page 9: Fixed Icam Pro Camera

    – There are two control buttons on the direction controller of the scanning iCam PRO camera, and the left and right controller is for SES. If you worry that the students might drop it on the floor, you can stick it on the table with double-sided tape or silicone as some of the education institutes do.

  • Page 10: Live Video

    Choose “Live View” to watch the video. The operator username is sesuser. As a default, check the factory configured list. You can edit account name or password in setting. We recommend using Microsoft Internet Explorer version 10 or higher web browser . BlueEyes Technology www.BlueEyes.tw...

  • Page 11: Location Of Camera

    – Better install on the wall at the back of the classroom. Viewport of the location of camera If you didn’t install the camera at the location aimed the center of the blackboard, the blackboard would show as a trapezoid. BlueEyes Technology www.BlueEyes.tw...
  • Page 12 Elevation of the location of camera If you install the camera too high, the blackboard would show as a trapezoid, the bottom is shorter than the upper side. BlueEyes Technology www.BlueEyes.tw...

  • Page 13: Iris (O←→C)

    The adjust order is – IRIS(O←→C) – Focal distance(W←→T) – Focus(∞←→N) ←→ – O = Open, C = Close – IRIS controls the light amount, so the light has big influence to the shooting effect. BlueEyes Technology www.BlueEyes.tw...
  • Page 14 – The tips for adjusting is to make the left and right sides of the shooting scene justify both sides of the board, but when using scanner module, make the up and down sides of the shooting scene justify up and down sides of the board. – Fasten the nut after adjusting. BlueEyes Technology www.BlueEyes.tw...
  • Page 15 – If you use digital board or projector, turn it on to adjust focus. – The tips for adjusting is to write【正】in the center and four sides of the board. – Adjust the focus to see the words clearly. – Fasten the nut after adjusting. BlueEyes Technology www.BlueEyes.tw...
  • Page 16 – The lens is imported from Japan, it is very expensive. BlueEyes Technology www.BlueEyes.tw...
  • Page 17 Then wipe the lens clockwise from center to the outer with [lens pen]  – Do not blow with mouth or wipe with tissue. Do not remove the lens. This may make the lens stained with dust and fingerprint. BlueEyes Technology www.BlueEyes.tw...
  • Page 18 You can set the settings in “video”. Click “yes” to complete the setting. Key functions： Default is iCam. Camera BlueEyes Technology www.BlueEyes.tw...
  • Page 19 Default is OFF. Watermark Select the required option: Position X, Position Y, transparency. iCam PRO is set already. Do not edit the default unless you are trained and understand the way and the meanings of editing. We recommend using Microsoft Internet Explorer version 10 or higher web browser.
  • Page 20 BlueEyes Technology www.BlueEyes.tw...
  • Page 21 Key functions： Default is iCam PRO. Camera Enter the name of IP Camera. Default is 128. Select the required brightness level that ranges from 0 to 255. . Brightness A brighter scene appears, if you choose higher level of brightness.
  • Page 22 The steps of setting are as below: 1. Login camera IP, and enter camera account and password. 2. Click camera in the setting column. BlueEyes Technology www.BlueEyes.tw...
  • Page 23 3. Select the checkbox to enable privacy mask. 4. After enabling privacy mask, set the monitor from right to left and click “set”. 5. You can set three ranges of the privacy mask which represent by red, green and blue. BlueEyes Technology www.BlueEyes.tw...
  • Page 24 6. You can click “clear” to cancel the privacy mask. 7. You can watch the live view to check the range of the privacy mask. BlueEyes Technology www.BlueEyes.tw...
  • Page 25 Both Mic & Speaker: Enables both audio playback & capture in camera. Default is 0. Input Gain Sets the input capture gain, values set from 1-60. Encoding Default is PCM. Channels Default is 2(stereo). Sample Rate Default is 44.1Khz. Bit Rate Default is 32k bps. BlueEyes Technology www.BlueEyes.tw...
  • Page 26 Support users use IP of ADSL to connect with internet when PPPoE connect from internet. DNS Assignment Specifies the DNS server for your network. Primary DNS Server Network of preferred and alternate DNS server address. Secondary DNS Server Network of preferred and alternate DNS server address. BlueEyes Technology www.BlueEyes.tw...
  • Page 27 We recommend using Microsoft Internet Explorer version 10 or higher web browser. Please make sure “sync with NVR” is “any one”. EPTZ only support dip 1280*720. BlueEyes Technology www.BlueEyes.tw...
  • Page 28 Many education institutes want to mark their name on the videos. You can upload the trademark and name on iCam PRO. +R or [Start]  [implement] to open the implement window. Enter Click the instruction below to open Paint. %systemroot%\system32\mspaint.exe Make a trademark in Paint.
  • Page 29 Then click “Open”. Step 2: Click 【Upload】 to upload the picture. Step 3: It would show like this if it uploads successfully. You can see the watermark on the live video. BlueEyes Technology www.BlueEyes.tw...
  • Page 30 We recommend using Microsoft Internet Explorer version 10 or higher web browser.  File name is BMP file.  Dpi is 64*64.  Length and width can be individually divisible by 4 (Pixels)  Leave the white blank to avoid color confusion BlueEyes Technology www.BlueEyes.tw...
  • Page 31 Please type in the website or words you want to show after scanning QRcode. Every time you enter words or websites, you have to click it again. You can check with your cellphone to see if the QRcode is correct. BlueEyes Technology www.BlueEyes.tw...
  • Page 32 Save the file as BMP file(*.bmp). Or there are many websites to make free QRcode: http://goqr.me/ Select the URL page. Enter the website you want for QRcode. Select “not stored”. Click Download to download QRcode. BlueEyes Technology www.BlueEyes.tw...
  • Page 33 Paint.。 %systemroot%\system32\mspaint.exe Open the QRcode file in Paint: Save asBMP pictureFile type【24 bitmap】！Important！ Use IE browser to connect to iCam PRO 1080 network management. Click [Watermark] in [Maintenance]. Here are the steps: Step 1: Click【Choose file】 to choose your QRcode.
  • Page 34 Then click [Open] Step 2： Click 【Upload】 to upload the QRcode. Step 3： It would show like this if it uploads successfully. You can see the QRcode on the live video. BlueEyes Technology www.BlueEyes.tw...
  • Page 35 If you are an iPhone user, you can use Quick Scan App. If you are an Android user, you can use QR Droid App.  File name is BMP file  24 bitmap  64*64(dpi) for length and width  Leave the white blank to avoid color confusion BlueEyes Technology www.BlueEyes.tw...
  • Page 36 Step1: Open IE browser. Enter camera IP address, account and password. Step 2: Click “Alarm” on the left side of “Setting” Step 3: Click enable “Motion detection” BlueEyes Technology www.BlueEyes.tw...
  • Page 37 Step 4: Set these red boxes. The red boxes are the motion detection. Click the transparent boxes to make them become red boxes. Click the again to cancel BlueEyes Technology www.BlueEyes.tw...
  • Page 38  If the students come late or leave the seat, motion detection may misjudge teacher’s position.  If the board erasers come up to stage when lecturing, motion detection may misjudge teacher’s position. BlueEyes Technology www.BlueEyes.tw...

  • Page 39: Cleaning And Maintaining The Lens

    】 【Answer】These might be the reasons: 1. If iCam PRO is installed on the wooden wall or calcium silicate, it may cause word trembling. iCam PRO should be installed on the wall that is solid and not easy to shake. Wooden wall or calcium silicate would shake when opening and shutting the door or turning on the air conditioners.
  • Page 40 【Answer】When you use early version of projector or digital board, you might find ripple on the video. That is because the light amount is not enough. Adjust IRIS of iCam PRO lens. Turn the IRIS to O (Open) to make more light come in.

  • Page 41: Setting

    We recommend using Microsoft Internet Explorer version 10 or higher web browser. 【 】 【Answer】 There are many reasons why causes noise. You can ask for professional audio manufacturers for help. There are several ways to solve the problems: 《First way》change electric suppliers BlueEyes Technology www.BlueEyes.tw...
  • Page 42 Use Hi-Fi audio cable which is better to reduce noise and distortion. 《Third way》Use high-impedance headphone Circumambient headphones is more high-impedance than canal phone. High- impedance headphones can avoid noise but the sound would become smaller. ╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳━╳ BlueEyes Technology www.BlueEyes.tw...
  • Page 43 Note BlueEyes Technology www.BlueEyes.tw...
