Technical Manual
(Model : HMC-081 /HMK-081 / HMKP-081)
*Technical Manual = User manual
Model : HMK-081

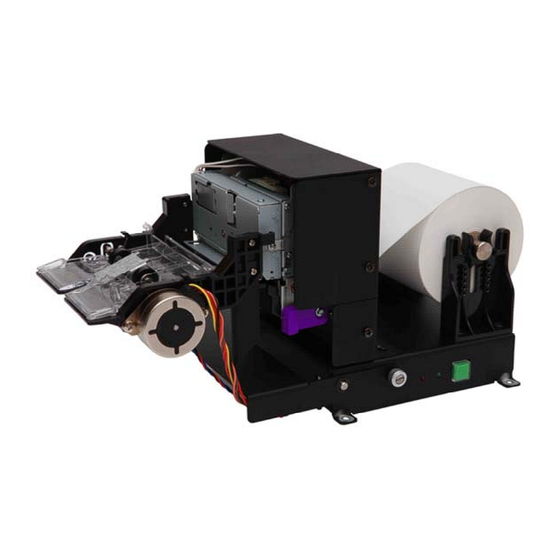

Model : HMKP-081
<NOTICE> . All features and specifications described are subject to charge without notice.
. If you have any questions, please contact us.
HWASUNG SYSTEM CO.,LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMC-081 and is the answer not in the manual?

Questions and answers

Related Manuals for Hwasung HMC-081

Summary of Contents for Hwasung HMC-081

  • Page 1 Technical Manual (Model : HMC-081 /HMK-081 / HMKP-081) *Technical Manual = User manual Model : HMK-081 Model : HMKP-081 <NOTICE> . All features and specifications described are subject to charge without notice. . If you have any questions, please contact us.
  • Page 2 • Please clear the air / open the disclosed place. • Please set the product without damage enviornment. • Please set the product at the stable place. • Pleaes keep the requires as necessary as general electrics. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 3: Table Of Contents

    5. Command 6. Windows Driver 6-1) Set up the function 6-2) Set up the paper 6-3) Set up the new paper 7. Ticket recommend 8. OCX driver(USB) 9. How to set up Ethernet 10. Revision reference Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 4: Printer Features & External Dimension

    3.Power LED. [Image1-2] 4.Feed switch. 5.Dip switch 1 6.Dip switch 2 7.DC Jack (24VDC) 8.Serial connector (RS232C, Straight ,Female 9 pin) BOTTOM 9.USB connector (USB, Type B) [Image1-3] 10.Ethernet connector (Ethernet) : Option REAR [Image1-4] Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 5: 1-2) Dimension

    1-2) Dimension [Image1-6] Standard type Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 6 [Image1-7] Presenter type Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 7: 1-3) Model Number

    1-3) Model number HM□□-081□ ※Interface (blank) : RS-232C & USB combo : Ethernet(LAN) ※Presenter (blank) : Standard type. : Presenter type. ※ Frame : Frame type. : Board type. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 8: Operation

    * The other is the paper guide for the right side. * It is the same way to adjust / screw, even it’s the left side, or it’s the right side. [Image 2-2] Paper guide Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 9: 2-2) Paper Set Up

    Please press the feed button, and make sure if the paper feeds. It is to make sure about if the paper set up correctly. Notice : If the paper doesn’t feed correctly, you open the cover and try to set up the paper again. [Image 2-9] Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 10: 2-2-2) Auto Loading

    Notice: it’s normal, even you hear the motor sound. [Image 2-10] [Image 2-11] Notice : If it is a type of presenter type, please remove the paper inside of the presenter, and set up the paper. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 11: 2-3) Paper Jam

    Cutter blade is preventing the paper from feeding and printing. 2. Please use the knob and turn one direction, and make sure about if the cutter blade is not preventing, or is preventing the paper from feeding and printing. Knob Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 12 The standard type is the same with the presenter type as image above, when you remove the paper jam. Notice Please make sure about you turn off the power, when you remove the paper jam. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 13: 2-4) Self Test

    Please turn off and on the power, while you press down the feed button. You can see the following informations are being feeded. Model. Firmware version / creare date. Interface. Dip switch. Sample. Notice Please refer to the specification of Dip switch 2-7). Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 14: 2-5) Hex Dump

    A B C D E F G H I J K L 3 4 5 6 7 8 9 . J 30 31 32 33 34 35 36 37 38 39 1B 4A ^ . i Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 15: 2-6) Onboard Update

    Please stop the update program and make sure the cable and other connections. Please return the process “1.” and follow the step again. 5) Please lift *down the eigth (8th) of Dip Switch 2, and power off/on the printer, and use the printer. *down : off. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 16: 2-7) Dip Switch

    Stop bit 1 STOP 2 STOP e)8 : Print mode Print mode HEX DUMP NORMAL 2)Dip switch 2 a)1: Realtime command valid / invalid Realtime command valid / invalid DLE Command on DLE Command off Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 17 Jam. It means it’s not workinig normally. g) 7 : Reserve Description ----- ----- h) 8 : Update / print mode Update / print mode Description Update mode Firmware update mode Print mode Standard print mode Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 18: 2-8) Memory Switch

    Page 1. Page 1. On the back Cutting Position Page.2 Black mark starting point Black mark starting point Page.2 Cutting Position Ex) SW1 = p, SW2 = 100, Ex) SW1 = m, SW2 = 100, Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 19 The factory mode is 1048(131mm), and is the black mark for the right side. Notice : Please refer to 7.Ticket recommend. Example) ABCD Page 1. Notice:Black mark for Starting point of black mark the lef side, and rear side. Page 2. [Front page,printing side] Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 20: 2-9) Internal Connector

    Cover open signal /LATCH TPH Latch Motor operation A Motor operation B /STROBE1 TPH STROBE1 Motor operation /A /STROBE2 TPH STROBE2 Motor operation /B CLOCK TPH CLOCK MARK_A Blackmark sensor power MARK_C Blackmark sensor signal Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 21 9)CN8 : Sub sensor connector (20017WS-03,Yenho or 53014-0310,Molex) Descript. Remark Sensor power Sensor output 10)CN9 : Presenter connector (20017WS-06,Yenho or 53014-0610,Molex) Descript. Remark Presenter Motor A Presenter Motor /A Presenter Motor /B Presenter Motor B Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 22 11)CN10 : Decoration LED connector (20017WS-02,Yenho or 53014-0210,Molex) Descript. Remark DECO_A Deco LED power DECO_C Deco LED operation signal 12)CN11: Ethernet connector (RB1-125BAG1A.UDE) Descript. Remark Transmit Data+ Transmit Data- None Connection None Connection Receive Data+ Receive Data- Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 23: 2-10)Presenter

    1)The partial cut is not available. The full cut is available only. 2)The maximum paper length is limited to 50cm a format. 3)The minimum paper length is limited to 7cm. 4)You have to use the paper width 72mm ~ 81mm. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 24: Genearl Specification

    3-6) Storage condition (temperature / Humid) 1)Temperature : -25∼40℃ 2)Humidity : 40∼90%RH(in not dew condensation) Notice : The printing is subjet to the storage condition. 3-7) MCBF 1)Thermal Print Head : 100Km(100 million pulse) 2)Auto cutter : 1,000,000 Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 25: Interface Specification

    : IEEE 802.3 10BASE-T 및 IEEE 802.3u 100BASE-TX 3)Connector : RB1-125BAG1A(UDE) 4)Pin Signal In/Out Description Transmit Data+ Transmit Data- None Connection None Connection Receive Data+ Receive Data- Notice : Please refer to how to set up Ethernet. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 26: Command

    Set the korean in extended graphic mode FS . Cancel the korean in extended graphic mode FS - Set the underline of Korean FS S Space Korean FS W Set the font size of Korean Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 27 Line 2 (Vertical, Horizontal) SUB W Write (Vertical, Horizontal) SUB C Clear (Vertical, Horizontal) SUB O ON (Vertical,Horizontal) SUB F OFF (Vertical, Horizontal) SUB P Print one dot line (Vertical, Horizontal) ESC t Code Page (International language) Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 28 Cancel print data in page mode [Format] ASCII Decimal [Range] [Dsecirpt] [Name] Horizontal tab [Format] ASCII Decimal [Range] [Descript] Moves the print position to the next tab poisition [Caution] Horizontal tab position are to set in ESC+’D’+n. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 29 : the feeding in reverse direction till black mark is out. n=3 : the feeding in reverse directoin till black mark is detected. [Caution] the feeding range is restricted in 30Cm. Once the detection distance is over in 30Cm, it could be jammed. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 30 Decimal n1…nk 0 [Range] 1≤n≤255, 0≤k≤32 [Descript] Set the horizontal tab position [Caution] n : Indicating the figures from the start poistion of line to set position K : indicating the total tabs per line Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 31 Decimal [Range] 0≤nL+nH×256≤65535, 0≤nL≤255, 0≤nH≤255 [Initial Value] nL=0, nH=0 [Descript] Move the position from the space of left ending to (nL+nH×256)×0.125mm. Move the position into the space of left ending, if the area is over. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 32 Dots in Dots in Data (k) vertical horizontal nL+nH×256 8dots Single Density 8dots Double Density nL+nH×256 24dots Single Density (nL+nH×256)×3 24dots Double Density (nL+nH×256)×3 • 8dots mode Single Twice Three Three times times Single Double Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 33 Set underline in thick 0.125mm Set underline in thick 0.25mm Set underline in thick 0.375mm Set underline in thick 0.5mm Set underline in thick 0.625mm Set underline in thick 0.75mm Set underline in thick 0.875mm Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 34 [Range] 0≤n≤255, [Descript] Clear buffer & Initialize all parameter ESC+’E’+n [Name] Set the font thick [Format] ASCII Decimal [Range] 0≤n≤255, [Initial Value] [Descript] n=0, cancel the font in thick n=1, set the font in thick Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 35 Notice : If it’s the big font 56x88, you can enlarge the font up to double each width / height. For other fonts, you can enlarge the font up to eightfold each width / height. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 36 Germany England Denmark1 Sweden Italian Spain1 Japanese Norway Denmark2 Spain2 Latin America Korea ESC+’a’+n [Name] Align the printing [Format] ASCII Decimal [Range] 0≤n≤2 [Initial Value] [Descript] Align the printing position Printing Position Left Middle Right Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 37 [Name] Partial Cutting [Format] ASCII Decimal [Descript] Cutting the paper partially [Caution] If it’s a kiosk printer with the dispensor, such as presenter, it wouldn’t cut the partial paper. It should cut the full paper. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 38 Cancel Korean mode (2Bytes mode) [Format] ASCII Decimal [Descript] Cancel Korean mode (2Bytes mode) [Caution] In case of cancel 2 bytes mode in extended graphic mode Appointment is not required due to auto detection in Korean mode. (Ref.SUB+’x’+n command) Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 39 Set the font size in Korean [Format] ASCII Decimal [Range] 0≤n1≤255 [Initial Value] [Descript] Set the Korean font size twice (HorizontalxVertical) in Korean n=0, Cancel the font size double. n=1, Set the font size double. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 40 1≤n≤255, 0≤m≤3 [Initial Value] [Descript.] m : printing the registered N/V in ‘m’ mode n : indicating the regsitered logo in the ‘n’. Printing mode Standard Horizontal extension Vertical extension Horizontal,vertical extension in the same time Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 41 Level +1 Level –4 Level +2 Level –3 Level +3 Level –2 Level +4 Level -1 Level +5 [Caution] We don’t recommend the density we don’t mention, because it damages the life of thermal print head. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 42 Select the printing position of HRI characters (Barcode) [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the printing positions of numerical value & characters Printing Position Non printing Above the barcode Below the barcode Both above & below barcode Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 43 Set printing area width from the left margin in (nL+nH×256)×0.125mm Printing area Left Margin Printing area width GS+’h’+n [Name] Select barcode height [Format] ASCII Decimal [Range] 1≤n≤255 [Initial Value] n=162 (20.25mm) [Descript] Select barcode height by n×0.125mm Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 44 : Also, you have to add the following initial code, when you start CODE A, CODE B, CODE C. It is to recognize CODE128. CODE128 Initial code For example, the barcode data ABCD. CODE A “gABCD" CODE B “hABCD" CODE C “iABCD" Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 45 Enable / Disable ASB If the status is changed after checking the printer status, the status is automatically executed. This command is executed to enable or disable. Function Disable automatic status back Enable automatic status back Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 46 Set the Standard mode [Format] ASCII Decimal [Descript] Swtiches from page mode to standard mode ESC+’L’ [Name] Select page mode [Format] ASCII Decimal [Range] 0≤n≤255 [Initial Value] [Descript] Switches from standard mode to page mode Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 47 Select print direction in page mode [Format] ASCII Decimal [Range] 0≤n≤3 [Initial Value] [Descript] Select the print direction & start position in page mode •n=0 (Left→Right), •n=1 (Bottom→Top), ABCD Feeding Feeding •n=2 (Right→Left), •n=3 (Top→Bottom), Feeding Feeding Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 48 Printing the page area. [Format] ASCII Decimal [Description] It prints the page area all at once. [Caution] Please use the command ESC+S to clear the data, Because the data is not deleted, after it printed. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 49 0 : Print complete 1 : Print or Feeding 0 : Cutter no- error (jamm) 1 : Cutter error (jamm) 0 : Not available 0 : Paper invalid at sub sensor 1 : Paper valid at sub sensor Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 50 Ex) Expansion image xL+xH×256 = 32 byte, 32 × 8 = 256 dot …… …… yL+yH×256 dot line …… …… …… …… …… …… …… k-31 k-30 k-29 …… 7 6 5 4 3 2 1 0 Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 51 [Name] Buzzer setting [Format] ASCII Decimal [Range] 0≤n1≤50 or 0≤n2≤50, [Descript] Buezzer length set as 100msec(0.1sec) (Max 5sec) n1=0 (It’s silent.) n1= the time length of Buzzer ON n2= The time length of Buzzer OFF Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 52 The all of line will be clear as 0 (zero). [Caution] Please direct ON/OFF to speed up the process. It is to write again the data of line. SUB+’O’ [Name] ON (Vertical, Horizontal) [Format] ASCII Decimal [Descript] It writes the character together. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 53 Code Page PC437(USA) Windows1250(Poland) KANA(JAPAN) PC850(Multilingual) Greece PC860(Portuguese) WPC1251 WPC1252 PC866(Cyllic #2,Russian) Iran System Encoding Standard [Caution] 1 byte will be vailid, if it’s SUB + x, or FS+”.” 2 bytes will NOT be vailid. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 54: Windows Driver

    ※ The quality of printing will be different, because it prints out as graphic. So pls try to print out as below. Printing width : 60mm -> Speed 150mm 80mm -> Speed 130mm Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 55: 6-2) Set Up The Paper

    ' dummy print for form feeding Printer.EndDoc 4) Page length Feeder : After printing, The form feeding will be conducted as long as the length is fixed. It is mostly used when the regular legnth is printed. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 56: 6-3) Set Up The New Paper

    4) Please type the width 6.0 cm / the height 15.0 cm as image. 5) Please click the ‘form install’ Ticket (Size 60 x 150mm) as image. 6) Please click the tap ‘advanced’ and set the paper Ticket(Size 60 x 150mm). Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 57 Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 58: Ticket Recommend

    L+B < 15 It should range L < 15 – B. [*Notice2] Forepart cutting position blackmark *It is the same condition with Notice 1. [*Notice3] It is the case if the cutting position is behind of blackmark. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 59 L+B < 15 It should range L < 15 – B. [*Notice2] Forepart cutting position blackmark *It is the same condition with Notice 1. [*Notice3] It is the case if the cutting position is behind of blackmark. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 60: Ocx Driver(Usb)

    You can check the printer status, and transfer / receive the data without Window driver, since that we provide the USB interface OCX driver (HwasUSB.OCX) 8-1) How to use Please follow the image steps of visual basic as below. ② ① Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 61 Please ask the person in charge about the sample program. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 62 Reading normal : The value of printer status Reading error : -1 (minus) [Caution] Please do not use the function we don’t provide, because it causes the function damage. Please contact us for the sample program. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 63 If you use the ocx driver together when using the windows driver, the data couldn’t be delivered (sent). We recommend you set up the function ‘you don’t use the function spool, and print’ as the image below. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 64: How To Set Up Ethernet

    Please try to set up the network to avoid with IP address. Please try to catch up IP address to avoid automatically, as you boot up DHCP mode. Please refer to the next page about DHCP mode. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
  • Page 65 We recommend Static IP Mode, when you communicate with application. Dip switch 2 Dip switch 1 Small switch 1~8 Small switch 1~8 Notice : Please see the bottom of the printer, and you can see the dip switch as image above. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...

  • Page 66: Revision Reference

    10. Revision reference It is a page for the technician to know what is the revision updated. This page is written in Korea. Date Remark Page Ver. Title Rev. Page HMK(P)-081,HMC-081 Ver1.0...
