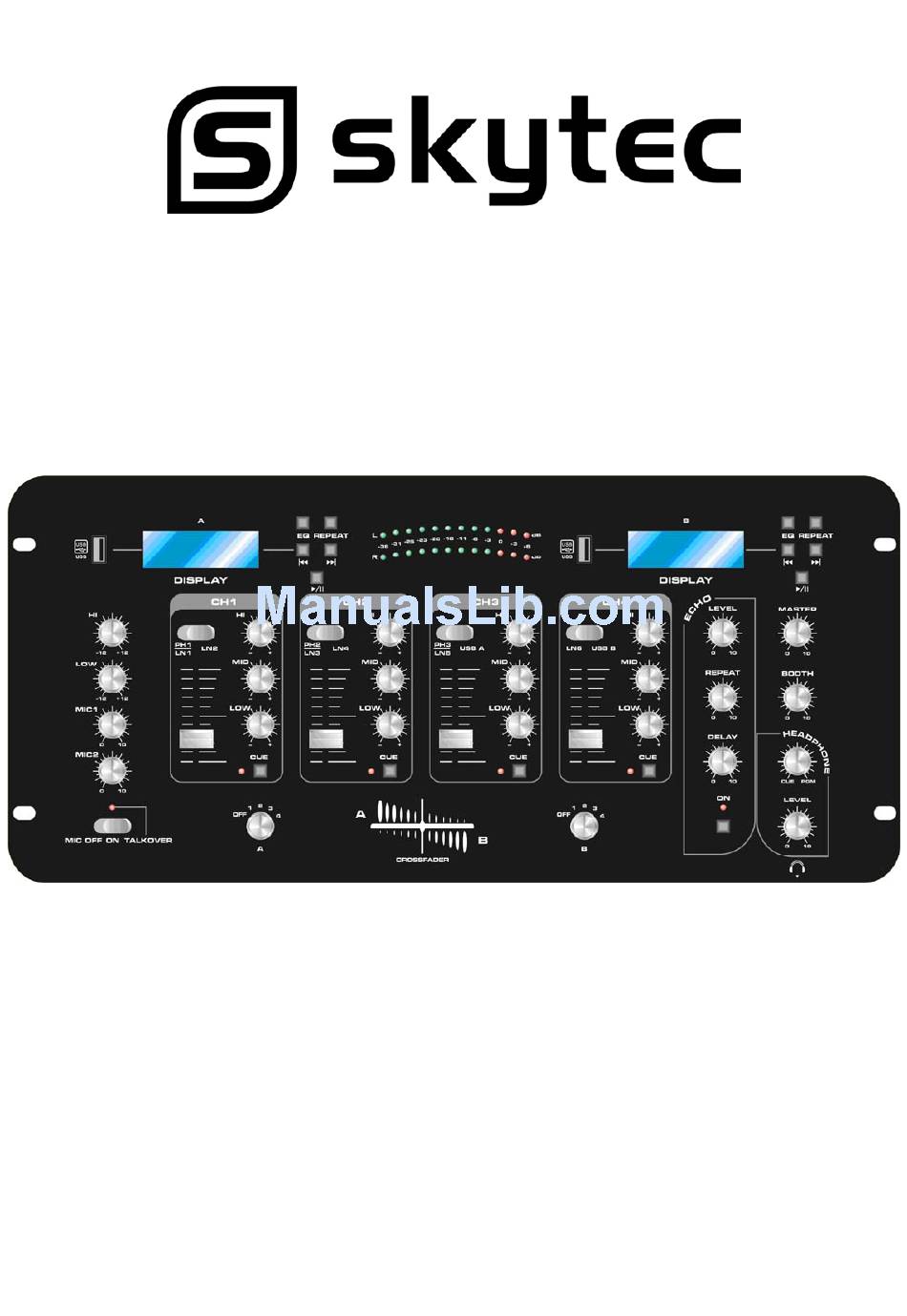

- Page 1 USER GUIDE STM-3010 INSTRUCTIONS...
- Page 3 For Your Attention Importance: 1) Read manual ---Please read through safety and operating instruction carefully before using this unit. 2) Keep manual ---Please keep this manual for future reference. 3) Attach importance to warning and note ---Please operate it according warning and bote of manual. 4) Do it according what the manual indicates ---Do it according to instruction of manual.
-

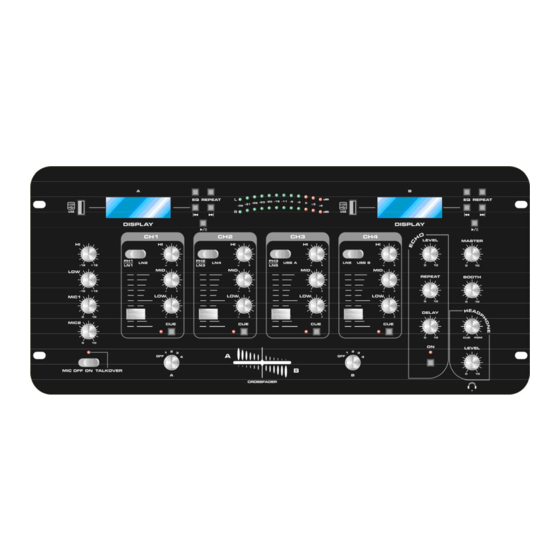

Page 4: Front Panel
Not On Use： Allow for sufficient heat dispersion when installed on a rack. 1) Handle the power cord carefully. Hold the plug when unplugging the cord. 2) Keep the set free from moisture,water and dust. 3) Unplug the power cord when not using the set for long periods of time. 4) Do not obstruct the ventilation holes.(For sets with ventilation holes.) 5) Do not let foreign objects in the set. -
Page 5: Rear Panel
Used to increase or lower the MIDS of the input channel. 10) BASS CONTROL Used to increase or lower the LOWS of the input channel. 11) CHANNEL CUE Use it to monitor the selected audio input source. 12) CHANNEL ASSIGN SELECTOR Let you select the input source to be mixed by the crossfader control. -
Page 6: Specifications
31)MIC 1 INPUT JACK Microphones with a 1/4” connector can be connected to these input terminals. 32)MIC 2 INPUT JACK Microphones with a 1/4” connector can be connected to these input terminals. 33) INPUT SELECTOR Set these swithches based on what is plugged into Phono/ Line input jacks. 34) LINE INPUTS Let you connect most high-level audio source, such as CD players, tape deck, tuner or VCR. - Page 7 MIC ------------------------------------------------------------------------------------------------------------------------------------------0.3% Phono ---------------------------------------------------------------------------------------------------------------------------------------0.5% Line ------------------------------------------------------------------------------------------------------------------------------------------0.1% MIC Tone Control Treble-----------------------------------------------------------------------------------------------------------------------10kHz; +12/-12dB MID----------------------------------------------------------------------------------------------------------------------------1kHz; +12/-12dB Bass-------------------------------------------------------------------------------------------------------------------------100Hz; +12/-12dB CHANNEL Tone Control Treble------------------------------------------------------------------------------------------------------------------------10kHz; +12/-12dB MID-----------------------------------------------------------------------------------------------------------------------------1kHz; +12/-12dB Bass---------------------------------------------------------------------------------------------------------------------------100Hz; +12/-12dB Talk over Attenuation-------------------------------------------------------------------------------------------------------------------- -15dB Echo Delay Time------------------------------------------------------------------------------------------------------------------50Ms-120Ms Headphone output power-----------------------------------------------------------------------------------------------30Mw @32 Ohms Power Source------------------------------------------------------------------------------------------------------------------AC230V, 50Hz Consumed power---------------------------------------------------------------------------------------------------------------------------20W...
