STM-2300 Mixer 2Ch/MP3
172.740
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM-2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skytec STM-2300

Summary of Contents for Skytec STM-2300

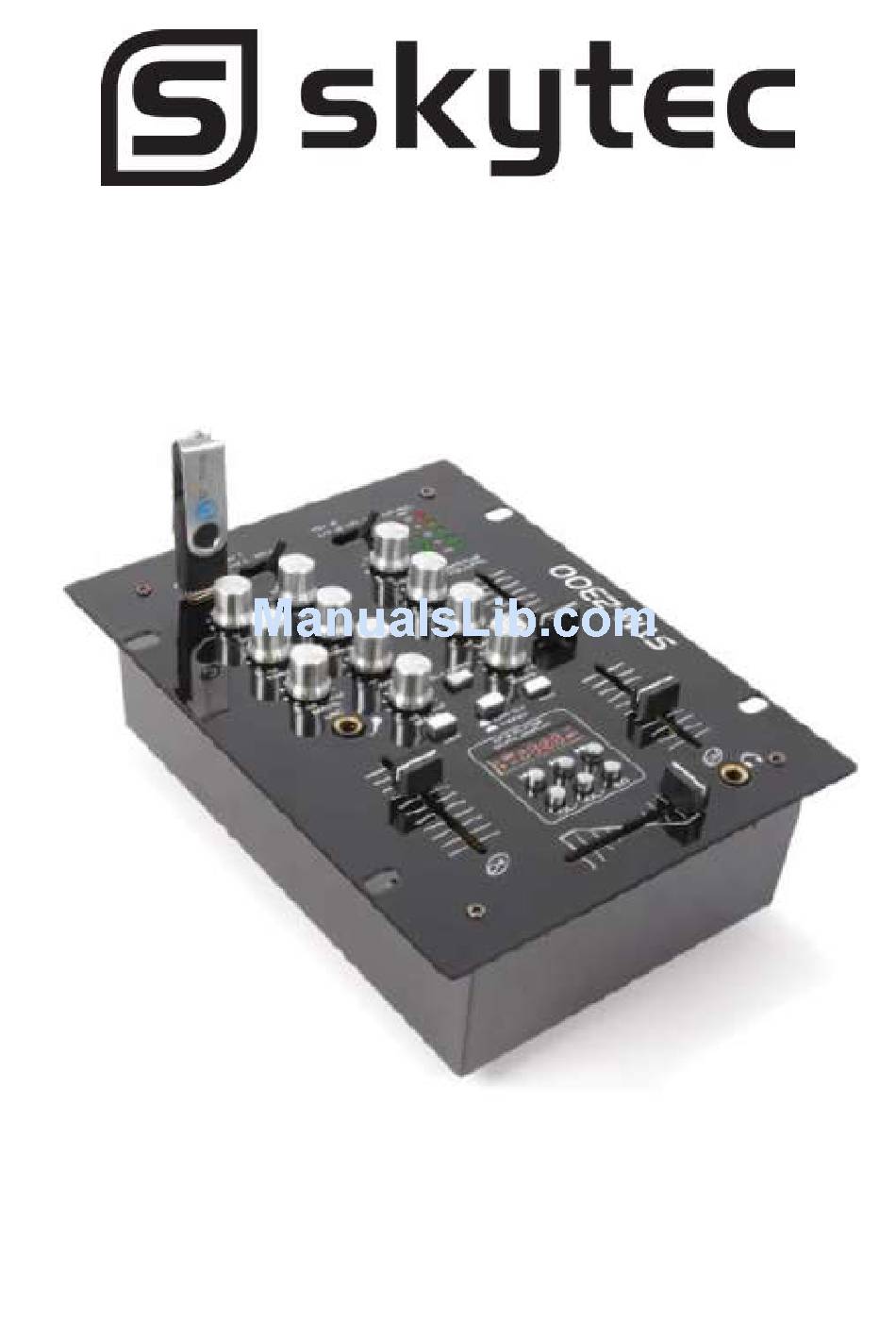

  • Page 1 STM-2300 Mixer 2Ch/MP3 172.740 USER’S MANUAL...
  • Page 3 Top and Front Panels 1. Mic 1 Socket Connect your microphone with 1/4” jack plug here. 2. MIC Level Control With this knob, you can adjust the microphone volume。...
  • Page 4 3. MIC Treble Used to increase or lower the microphone’s higher frequencies. 4. MIC Bass Used to increase or lower the microphone’s lower frequencies. 5. Talkover Button Press this button if you want to use your microphone. When the button is pressed, all other signal sources will be attenuated by 14dB, so that the microphone can be clearly heard.
  • Page 5 BACK PANEL DESCRIPTION 20. Power Switch Press down the button to turn on this unit. The LED will illuminate when the power is on. 21. AC Connection This unit comes with a 12V AC adapter. Plug into the 12V AC jack before plugging it into a proper power source. 22.
  • Page 6 SPECIFICATION INPUTS: Microphone……………………………………………………………………..3mv / 2.2 kΩ Phono…………………………………………………………………………….3.2mv / 47 kΩ Line……………………………………………………………………………...150mv / 47 kΩ OUTPUTS: Main……………………………………………………………………………0 dB / 1V 600Ω MON………………………………………………………………………………0 dB / 1V 600Ω PHONE........................300MW/16-32 Ω Tone Control Treble……………………………………………………………………………...+12dB/-12dB Middle……………………………………………………………………………..+12dB/-12dB Bass………………………………………………………………………………..+12dB/-12dB GENERAL: Frequency response……………………………………………………..20Hz～20 KHz ±2dB Distortion………………………………………………………………………………...<0.02% S/N Ratio………………………………………………………………………better than 70 dB...

  • Page 7: Ce Declaration Of Conformity

    7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands 172.740 Product number: STM-2300 Mixer 2Ch/MP3 Product Description: Skytec, EN 61558 Regulatory Requirement: EN 55013 EN 55020 EN 61000-3-2/-3-3 The product meets the requirements stated in the above mentioned Standards. This certificate does not cover the aspects that may be relevant such as performance and fitness for purpose.
  • Page 8 www.tronios.com Copyright © 2013 by TRONIOS the Netherlands...
