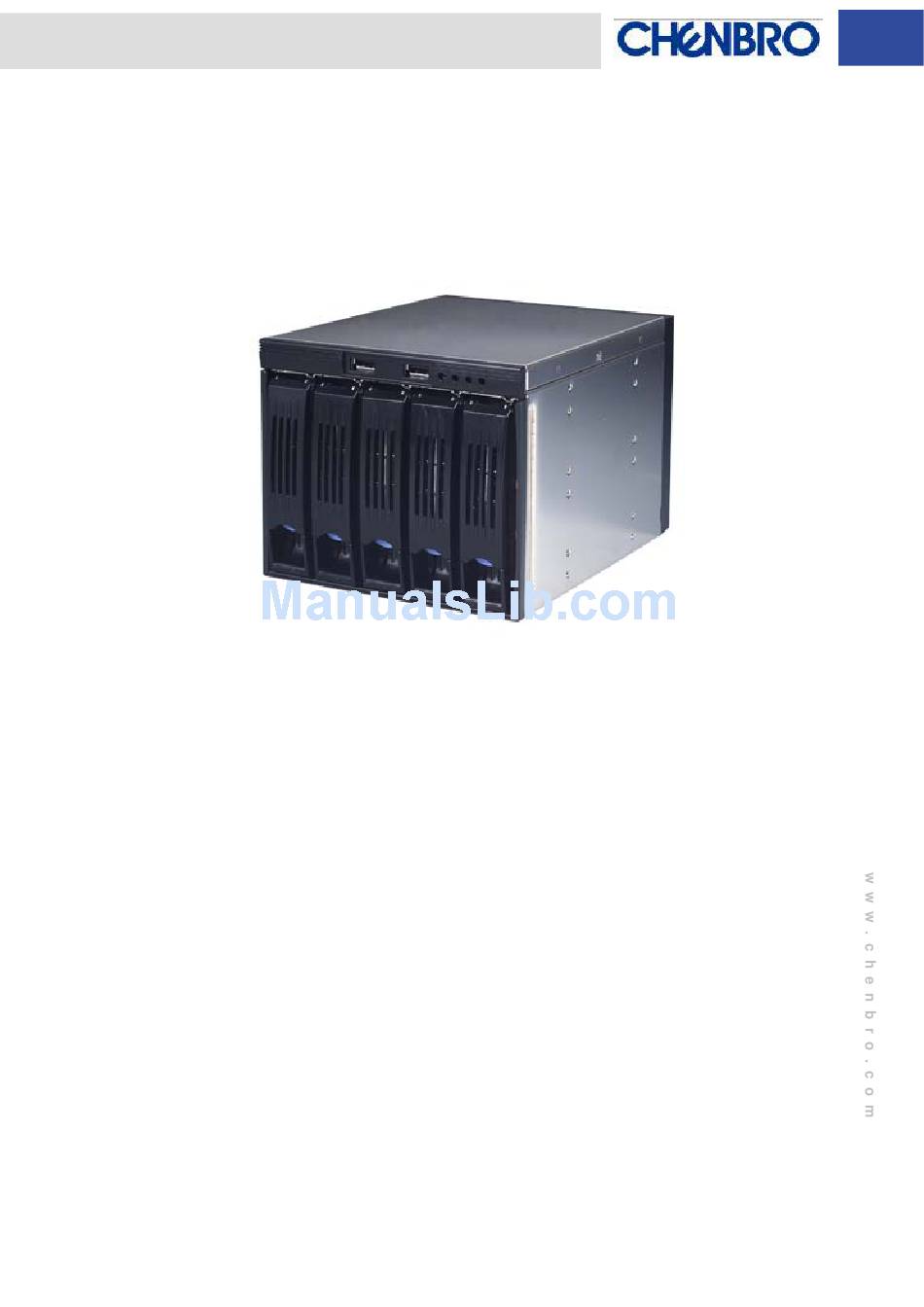

- Page 1 SK23502 ver. 1.0 User’s Manual CHENBRO User’s Manual SK23502 3-to-5 SCSI HDD Storage Kit Version 1.0 May / 26 / 2008 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392...
-
Page 2: Copyright
Copyright © 2006 CHENBRO Micom Co., Ltd.. All rights reserved. Unless otherwise indicated, all materials in this manual are copyrighted by CHENBRO Micom Co., Ltd.. All rights reserved. No part of this manual, either text or image may be used for any purpose other than internal use within purchasing company. -
Page 3: Table Of Contents
Copyright..............................2 Technical Support............................2 Contents ...............................3 Revision History............................4 Safety Information .............................5 Conventions Used in this Manual......................5 Getting Start with the SK23502 Storage Kit ..................6 Unpacking and Checking the Contents ..................6 Technical Specifications ..........................6 Compatible CHENBRO Chassis......................6 Introduction ..............................7 Functional Specification ..........................7 General..............................7... -
Page 4: Revision History
SK23502 ver. 1.0 User’s Manual Revision History Date Modifications May / 26 / 2008 First Release 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 5: Safety Information
SK23502 ver. 1.0 User’s Manual Safety Information Read the installation instructions before connecting SK23502 to the power source. Only trained and qualified personnel should be allowed to install, replace or service this equipment. Never install this product in a wet environment. -
Page 6: Getting Start With The Sk23502 Storage Kit
SK23502 ver. 1.0 User’s Manual Getting Start with the SK23502 Storage Kit Thank you for purchasing SK23502! This section covers unpacking and identifying components. Unpacking and Checking the Contents The complete SK23502 package includes the following items: Item Description Quantity SK23502 Storage Cage Hot-swap 3.5”... -
Page 7: Introduction
The CHENBRO SK23502 can house five 3.5” HDDs in a three 5.25” bays converter (Depth of 9.5” recommended). The ability for conversion allows existing servers to perform the maximum HDD density while keeping the flexibility. All in all, SK23502 is the best solution as value added feature and performance. Functional Specification... -
Page 8: Mechanical Dimension
SK23502 ver. 1.0 User’s Manual Mechanical Dimension unit: mm 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 9: Components Description
SK23502 ver. 1.0 User’s Manual Components Description Front View HDD4 HDD3 HDD2 HDD1 HDD0 Device Function USB jack Front USB port Alarm mute button Click to stop the system failure alarm Overheat Warning LED LED On - Temperature overheat Fan failure LED... -
Page 10: Rear View
SK23502 ver. 1.0 User’s Manual Rear View Devices Function SCSI jack SCSI Out jack SCSI jack SCSI In jack Power jacks 4P jack for power input USB jack USB interface between front bezel & motherboard Multifunctional Switch Refer to Page 11... -
Page 11: Multifunctional Switch Definition
SK23502 ver. 1.0 User’s Manual Multifunctional Switch Definition [DIP1/DIP2]：HDD Spin-up option DIP1 DIP2 Function Remark Spin up when power is apply Default Spin up on start command Spin up after delay SW1 Default Setting Reserved [DIP3]：HDD ID setting DIP3 HDD ID (HDD1 – HDD5) -
Page 12: Installation Procedures
SK23502 ver. 1.0 User’s Manual Installation Procedures The following is the installation procedures for HDD and rear cover assembly. Hot-swap HDD Assembly a. Push the blue latch on HDD tray and pull it out from the cage b. Attach HDD with four screws per tray 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,... - Page 13 SK23502 ver. 1.0 User’s Manual c. Insert HDD tray to the cage 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw...
-
Page 14: Accessing The Exhaust Fan
SK23502 ver. 1.0 User’s Manual Accessing the exhaust fan a. Unplug the fan power connector b. Push the tab on the right side (where have “PUSH” mark on the rear cover) c. Pull out the fan holder 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,... -
Page 15: Accessing Backplane Assembly
SK23502 ver. 1.0 User’s Manual Accessing backplane assembly a. After removing the rear exhaust fan, unscrew four screws to remove the rear cover 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392... - Page 16 SK23502 ver. 1.0 User’s Manual b. Remove two screws on the backplane 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw...
-
Page 17: Relative Part Number List
SK23502 ver. 1.0 User’s Manual Relative Part Number List CHENBRO Description Unit Remark Part Number 80H035335-001 LED Board 80H105235-002 SK23502 SCSI Backplane 26H073214-003 SCSI Cable, 500mm 26H033219-002 USB Cable, 750mm 31H040000-006 SCSI Terminator 30H080032-102 80mm (Thickness 32mm), Ball Bearing Fan...
