Page 1: Booklet Maker

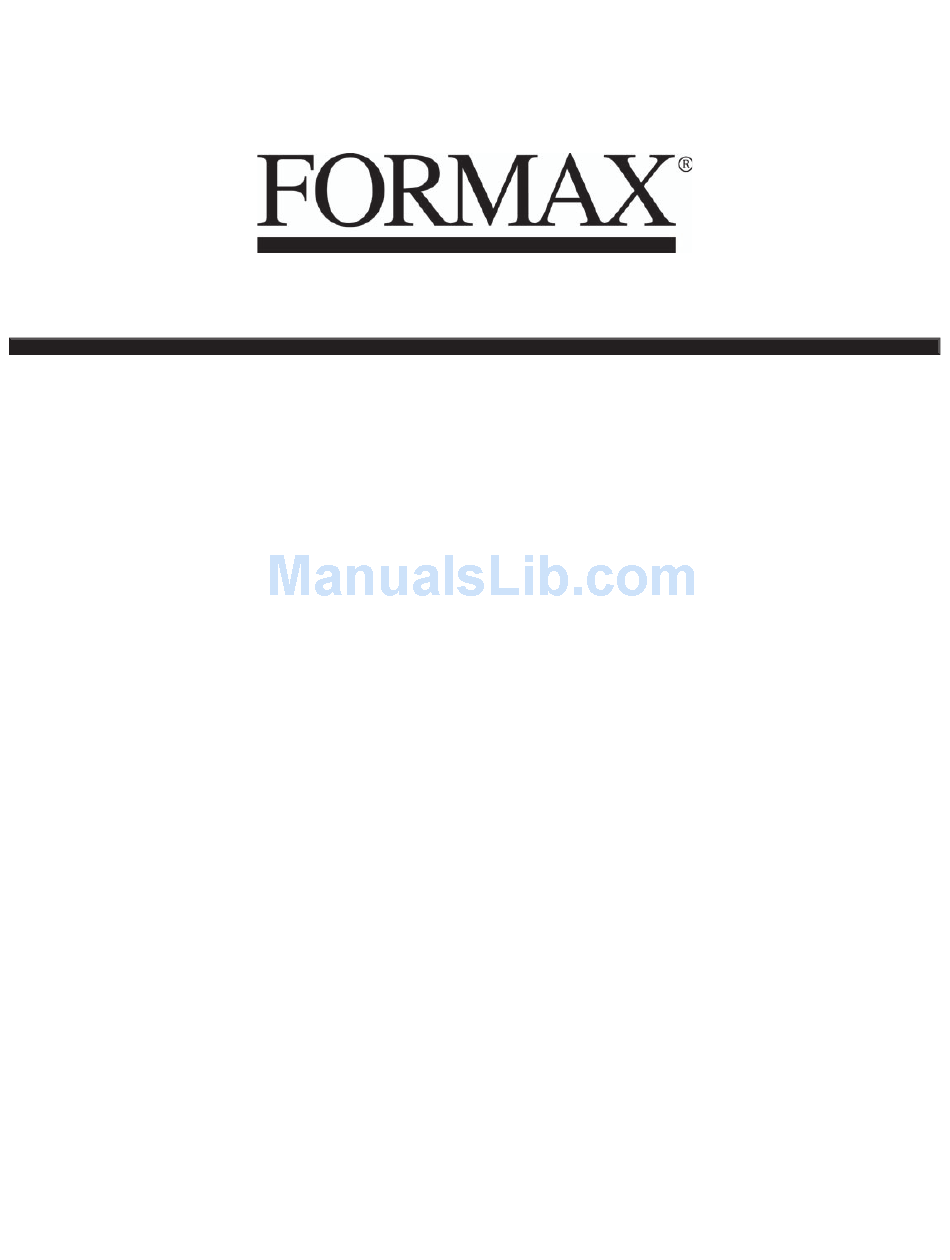

FD 160 Booklet Maker OPERATOR / MAINTENANCE MANUAL MAINTENANCE MANUAL MAINTENANCE MANUAL FIRST EDITION 11/2009... -
Page 3: Table Of Contents
TABLE OF CONTENTS TOPIC PAGE SPECIFICATIONS, UNPACKING & SET-UP OPERATION SIDE STAPLING SAFETY GUIDELINES PARTS LIST BASE SECTION BINDING & FOLDING SECTION DRIVING SECTION 1 DRIVING SECTION 2 FOLDING KNIFE SECTION EXTERIOR SECTION WIRING DIAGRAM... -
Page 5: Specifications, Unpacking & Set-Up
Stapling Head Rubber Feet FUNCTION: The Formax FD 160 Tabletop Booklet Maker offers an easy-to-use solution for creating booklets in small-run or in-plant applications. It’s lightweight, portable, and sets up in seconds. Sheet Capacity: Staples and folds up to 12 sheets of 20# bond Paper Size: 10.25”... -
Page 6: Operation
OPERATION Switch machine on to activate rollers. Choose the correct staple position according to the sheet size. They will click into place along the holding shafts. Set the paper guides. Place the sheets under the rollers and align them to side guide A. Set the sliding paper guides to hold sheets in position. -
Page 7: Base Section
PARTS LIST - BASE SECTION ITEM PART DESCRIPTION QTY. BASE ASSEMBLY PLATE PLATE SCALE (CANNOT BE ORDERED BRACKET SEPARATELY - RACK ORDER BASE FELT ASSEMBLY) SIDE GUIDE PINION BMT10 SPRING PLATE BMT13 ANVIL SCREW RUBBER FOOT... -
Page 8: Binding & Folding Section
BINDING & FOLDING SECTION ITEM PART DESCRIPTION QTY. BMT6 FOLDING ASSEMBLY SPRING C STOPPER SLIDER B (CANNOT BE COLLAR ORDERED LEVER COLLAR (BIG) SEPARATELY - LEVER ORDER BASE ASSEMBLY) ROLLER SPROCKET IV SLIDER F 1-10 ROLLER LEVER COLLAR (SMALL) COLLAR BMT1 STAPLER HEAD STAPLER ASSEMBLY... -
Page 9: Driving Section 1
DRIVING SECTION 1 ITEM PART DESCRIPTION QTY. FRAME F PLATE PLATE MOTOR (110v) SHAFT BRACKET BMT5 DOUBLE - SPROCKET ASSEMBLY BMT7 GEAR 1 CHAIN 1 BMT4 SPROCKET 1... - Page 10 DRIVING SECTION 2 ITEM PART DESCRIPTION QTY. FRAME B BLOCK SPRING T SPROCKET III CHAIN SPROCKET V BMT8 GEAR...
-
Page 11: Folding Knife Section
FOLDING KNIFE SECTION ITEM PART DESCRIPTION QTY. LEVER B FOLDING BLADE REINFORCING PLATE BALL RETAINER STOPPER LEVER F SPRING T HOLDER BLOCK BRACKET SHAFT... -
Page 12: Exterior Section
EXTERIOR SECTION ITEM PART DESCRIPTION QTY. BMT2 SIDE COVER BASE PLATE BMT3 SAFETY COVER BRACKET... -
Page 13: Wiring Diagram
WIRING DIAGRAM ITEM PART DESCRIPTION QTY. BMT9 LIMIT SWITCH...
