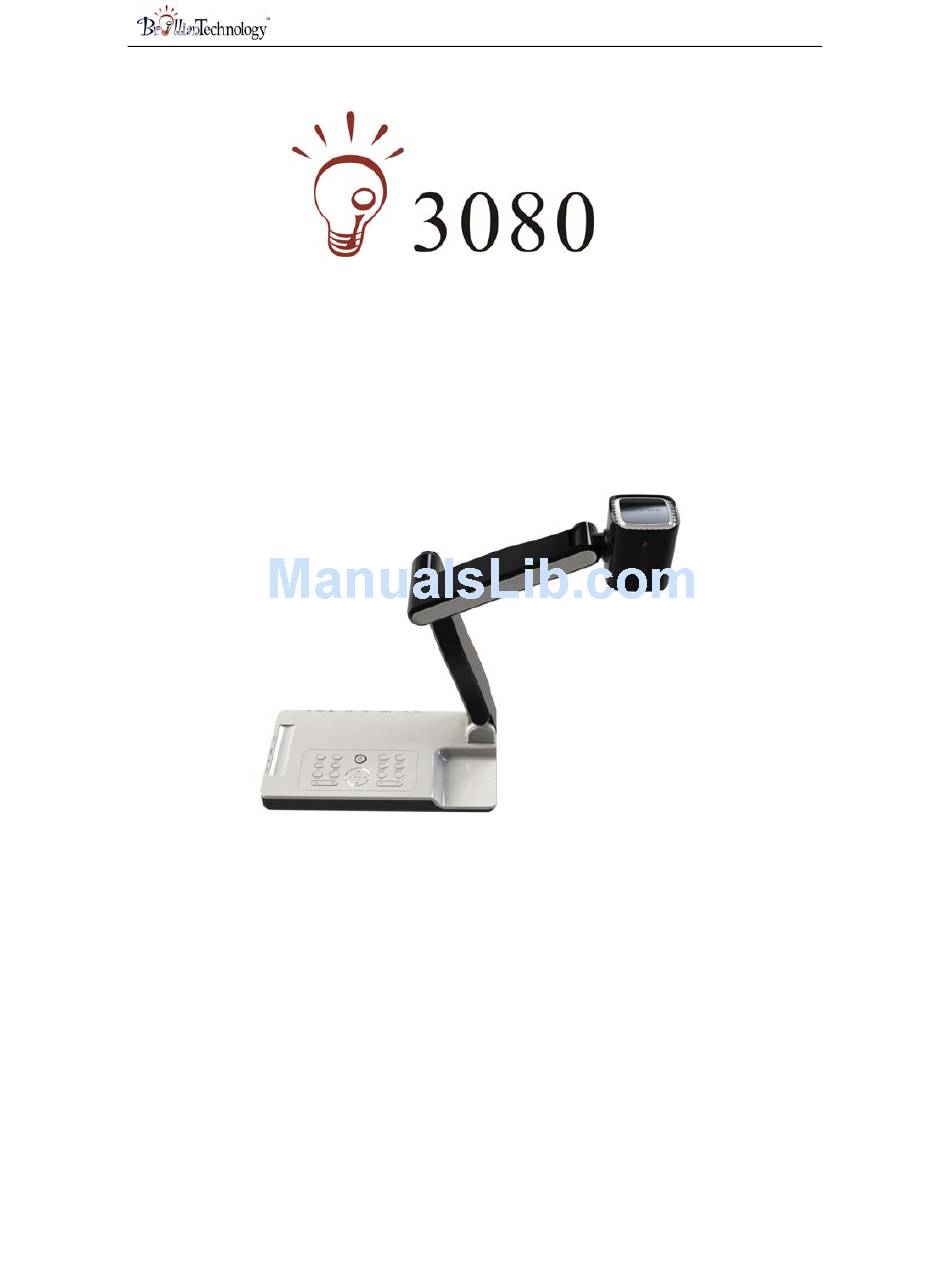

Page 1: User Manual
www.brilliantechnology.com Document Camera USER MANUAL Please read this manual carefully before operating the document camera and keep it for reference... - Page 2 www.brilliantechnology.com PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE Use the document camera under the rated electrical conditions. Do not place the document camera on any unstable surface. It may fall and cause injures or damages. Do not place this device directly under sunlight or near heaters. Do not place this device near water.
-
Page 3: Table Of Contents
www.brilliantechnology.com USER MANUAL ..................1 1. PARTS IDENTIFICATION ..............4 2. CONTROL PANEL ................5 3. INPUTS AND OUTPUTS ..............6 4. REMOTE CONTROL ................. 7 5. CONNECTIONS ................... 9 5.1. COMPUTER CONNECTION ................... 9 5.2. VGA OUTPUT CONNECTION ..................10 5.3. -
Page 4: Parts Identification
www.brilliantechnology.com 1. PARTS IDENTIFICATION 1. Remote control IR receiver 2. Camera 3. LED light box 4. Upper mechanical arm 5. Main mechanical arm 6. Side panel 7. Back panel 8. Base unit 9. Control panel... -
Page 5: Control Panel
6. SPLIT: Split screen, enable the comparison between the frozen image and the live image. 7. COMPUTER: Display the connected computer image. 8. VIDEO: Display the i-3080’s image via the C-Video or S-Video output. 9. BRIGHT+/-: Image brightness control. 10.PAGE DOWN: Saved image page down when the image recall mode is enabled. -
Page 6: Inputs And Outputs
www.brilliantechnology.com 3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera by computer via this port. 3. AUDIO OUT: Audio output. 4. VGA OUT: VGA(RGB) signal output(15 pin D-SUB). 5. C-VIDEO: Composite video output. 6. -
Page 7: Remote Control
www.brilliantechnology.com 4. REMOTE CONTROL 1. Save: Capture the image in display. 2. Recall: Image recall mode enabled, display the saved images. 3. Lamp: Turn on/off the LED light. 4. Split: Split screen, enable the comparison between the frozen image and the live image. 5. - Page 8 www.brilliantechnology.com 11. SXGA/XGA: Switch the output signal between the XGA and the SXGA resolution. 12. Home: Display the image via VGA output. 13. Sharp+/-: Image the sharpness control. 14. Auto: Carry out auto focus, color adjustment and white balance. 15. Computer: Activate the VGA input. 16.
-
Page 9: Connections
www.brilliantechnology.com 5. CONNECTIONS 5.1. COMPUTER CONNECTION... -
Page 10: Vga Output Connection
www.brilliantechnology.com 5.2. VGA OUTPUT CONNECTION To RGB Input To Audio Input 5.3. C-VIDEO OUTPUT CONNECTION Audio Cable To Audio Input To Video Input Video Cable... -
Page 11: S-Video Output Connection
6.1. CONTROL VIA RS232 The i3080 can be controlled from a computer via the RS232 interface. 1. Create a folder on the hard drive, name it i-3080. Then copy the RS232 application that is on the provided CD into this folder. - Page 12 www.brilliantechnology.com Then you will see the software setup window: Click Next>, you will see:...
- Page 13 www.brilliantechnology.com Select I accept the terms in the license agreement, click Next>, you will see: Type the User name and Organization, click Next you will see: Click Install, then you will see:...
- Page 14 www.brilliantechnology.com Click Finish to finish the installation. 4. Double click or click start->All Programs->Portable Series->Portable Series.exe to run the RS232 software, you will see a tool bar: The definition of each button is Zoom in, Zoom out, Auto focus, Functions, Minimize, Close. Click Functions, you will see the following control panel.
-
Page 15: Usb Camera
You can capture images and videos on the i-3080 from a computer via a connected USB cable. 1. Connect the computer and the i-3080 with a USB cable and turn on the power of the i-3080. 2. Open My Computer and you will see a USB Video Device: 3. - Page 16 www.brilliantechnology.com You will see the following window: 2. Please make sure the software is in the proper setting. Make sure to click Devices->USB video device and Options->Preview.
- Page 17 www.brilliantechnology.com 3. Click File->Set Capture File, to set the captured file. A. Set the location and the file name. B. Set the file size.
- Page 18 www.brilliantechnology.com 4. Click OK to finish the setup, and then click Capture->Start capture to capture video. 4. You will see the following window, Click OK to start capture.
-
Page 19: Features
6. Click Capture->Stop Capture to stop 7. FEATURES LIGHT The i-3080 is an environmentally friendly product. It is RoHS compliant, which means it meets... -
Page 20: Zoom In And Zoom Out
"ZOOM+"or "ZOOM－". FOCUS ADJUSTMENT When the i-3080 is turned on the focus automatically adjusts to the stage, it is not necessary to readjust the focus if you are only working with flat materials (text, photos, etc.). Only 3D objects require a focus adjustment. -
Page 21: Image Freeze
IMAGE SAVE The i-3080 offers the opportunity of storing 12 images on board. You can recall them by just pressing one of the numerical buttons on the front panel or remote control. IMAGE RECALL By pressing the “Recall”... -
Page 22: Usb Image Capture And Video Recording
USB IMAGE CAPTURE AND VIDEO RECORDING Simply connect the i-3080 to a computer, with the software and driver we provided, you can easily preview, capture and save images and videos to your PC and Mac. RS232 CONTROL The RS232 terminal allows you to integrate the i-3080 into any sophisticated central control system. -
Page 23: Trouble-Shooting
www.brilliantechnology.com VIDEO S-VIDEO AUDIO OTHER TERMINALS Slave×1(USB camera) USB2.0 RS232(computer controllable) Yes(360°controllable) Remote control Kensington lock Embedded LED lamp Light source 32° F to 104° F 0° C to 40° C Operating temperature Folded:12.6"×6.6"×3.7" 32cm x 16.8cm x 9.4cm Setup:19.7"×6.6"×19.3" Dimensions 50cm x 16.8cm x 4.9cm 12V DC power adapter... -
Page 24: Packing List
USB cable(2.0) Remote control User manual(CD) 11. TECHNICAL SUPPORT Brillian Technology is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-98-Brillian/1-877-982-7455. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Eastern Standard Time, Monday through Friday. Please... - Page 25 Technical support is also available online at Brillian’s web site at www.brilliantechnology.com. You can enter your questions and concerns through our online form. Or you can email us at support@brilliantechnology.com. Copyrights ©2009 Brillian Technology, LLC. All Rights Reserved. ...
