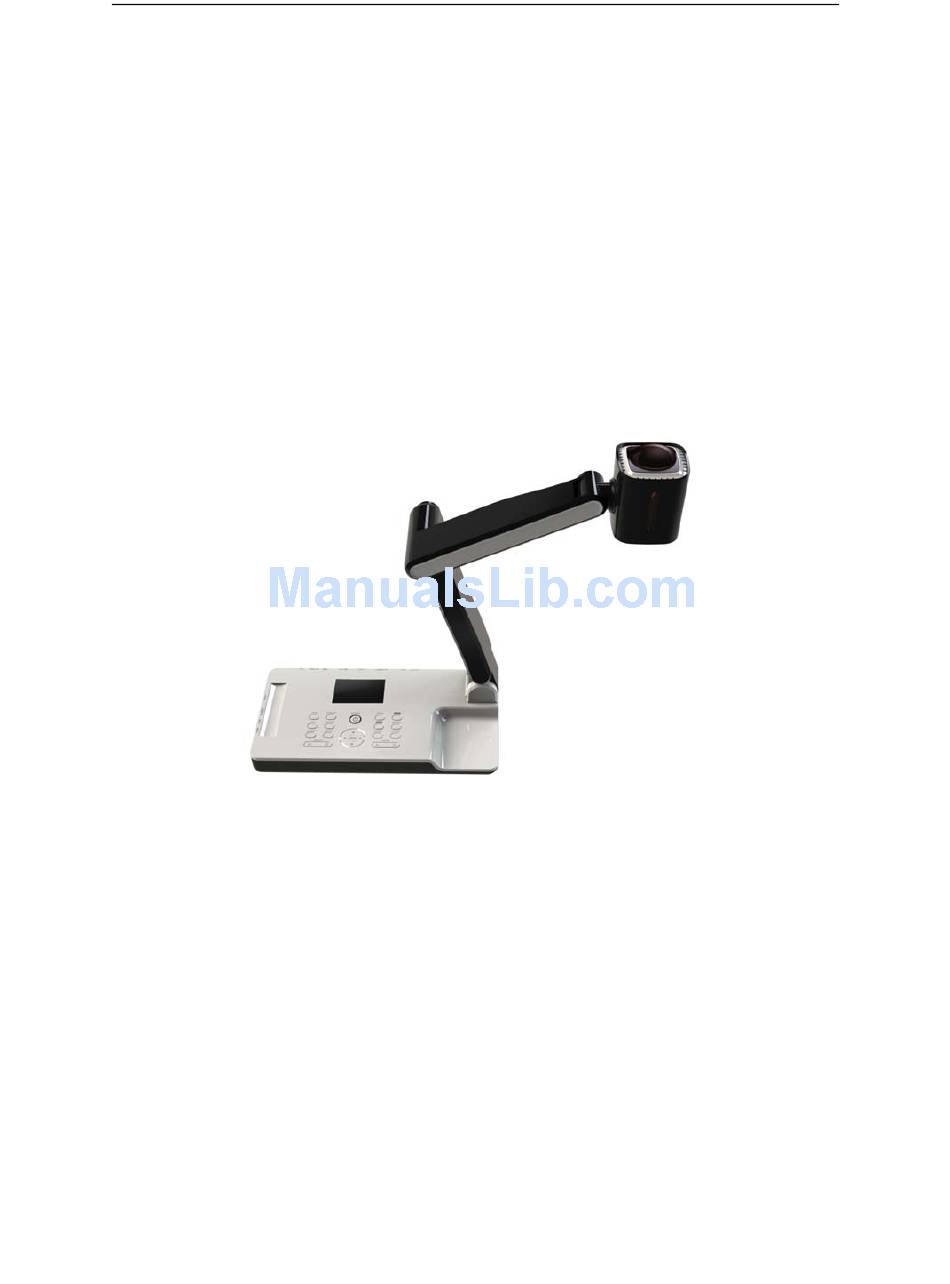

Document Camera USER MANUAL Please read this manual carefully before operating the document camera and keep it for reference... - Page 2 PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE Use the document camera under the rated electric conditions. Do not place the document camera on any unstable surface. It may fall and cause injures or damages. Do not place this device directly under sunlight or near heaters. Do not place this device near water.
-
Page 3: Table Of Contents
CONTENTS: 1. PARTS IDENTIFICATION ..............4 2. CONTROL PANEL ................5 3. INPUTS AND OUTPUTS ..............6 4. REMOTE CONTROL ................. 7 5. CONNECTIONS ................... 9 5.1. COMPUTER CONNECTION ................... 9 5.2. USB-A CONNECTION ....................10 5.3. VGA OUTPUT CONNECTION ..................10 5.4. -
Page 4: Parts Identification
10. PACKING LIST ................19 11. TECHNICAL SUPPORT ..............20 By Phone ..........................20 Online ............................20 1. PARTS IDENTIFICATION 1. Remote control IR receiver 2. Camera 3. LED light box 4. Upper mechanical arm 5. Main mechanical arm 6. Side panel 7. -
Page 5: Control Panel
2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. MENU ENTER: Enter the control Menu. 3. COMPUTER: Activate the VGA input. 4. OUTPUT: Select the output terminal (VGA or DVI), to provide the image from camera. 5. SPLIT: Split screen, enable the comparison between the frozen image and live image. 6. -
Page 6: Inputs And Outputs
3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera by computer via this port. 3. DVI: DVI signal output. 4.AUDIO OUT: Audio output. 5.VGA OUT: VGA(RGB) signal output(15 pin D-SUB). 6. -
Page 7: Remote Control
4. REMOTE CONTROL 1. Save: Capture the image in display. 2. Recall: a. Image recall mode enabled, display the saved images. b. When a memory stick was connected, press Recall to show the content in the... - Page 8 memory stick c. Back to upper level image recall mode. 3. Freeze: Freeze/unfreeze the image. 4. Split: Split screen, enable the comparison between the frozen image and live image. 5. Neg: Switch the image between the positive and negative mode. 6.
-
Page 9: Connections
5. CONNECTIONS 5.1. COMPUTER CONNECTION RS232 cable To RS232 To Audio Output Audio Cable To RGB Output... -
Page 10: Usb-A Connection
5.2. USB-A CONNECTION 5.3. VGA OUTPUT CONNECTION To RGB Input To Audio Input... -
Page 11: C-Video Output Connection
5.4. C-VIDEO OUTPUT CONNECTION Audio Cable To Audio Input To Video Input Video Cable 5.5. S-VIDEO OUTPUT CONNECTION S-Video Cable Audio Calbe To S-Video in To Audio input... -
Page 12: Usb Function
* Connect the i-3330 to your computer with the provided USB cable. * Open My computer, we will see a disk called sdboot, which is the built-in memory of the i-3330, you can download or upload images to the connected computer. - Page 13 *Click Setting to set the save location. *Click OK to finish the setup, then click Video->Play to preview the image...
- Page 14 *We will see the following window: *Click Video->Capture to capture the image to computer.
-
Page 15: Features
Press "ZOOM+"or "ZOOM-" POSITIVE/NEGATIVE CONVERSION The i-3330 is automatically set to display normal materials on the screen when the power is on. To display negatives, simply laying any film negative on the table and press the Neg button on remote... -
Page 16: Focus Adjustment
FOCUS ADJUSTMENT When the i-3330 is turned on the focus automatically adjusts to the stage, it is not necessary to re-adjust the focus if you are only working with flat materials (text, photos, etc.). Only 3D objects require a focus adjustment. Press the “AUTO” button to auto focus. Press the "FOCUS+", or "FOCUS-"... -
Page 17: Picture In Picture Function
OUTPUT SWITCH Press “OUTPUT” to toggle between DVI output and VGA output signals. USB IMAGE CAPTURE AND VIDEO RECORDING The USB port can be used to capture still images and capture live videos from the i-3330 into a computer. RS232 CONTROL The RS232 terminal allows you to integrate the i-3330 into any sophisticated central control system. -
Page 18: Specifications
8. SPECIFICATIONS Model i-3330 Sensor 1/3" CMOS 3 Megapixel Pixels 9x optical, 12x digital Zoom Frame rate Shooting area Max: 13.5" x 10.6" /34.3 cm x 26.9 cm Min: 0.1" x 0.1"/0.3 cm x 0.3 cm Focus Auto/manual Output resolution XGA，SXGA, WXGA... -
Page 19: Trouble-Shooting
Power supply 12V DC power adapter Weight(net) 5.5lbs/2.5kg 9. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. 4. The built-in fuse is broken: Change fuse. 5. -
Page 20: Technical Support
USB cable(2.0) Remote control User manual(CD) 11. TECHNICAL SUPPORT Brillian Technology is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-98-Brillian/1-877-982-7455. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Eastern Standard Time, Monday through Friday. Please... - Page 21 Brillian Technology, LLC Toll Free: 1‐877‐98‐Brillian / 1‐877‐982‐7455 E‐mail: info@brilliantechnology.com Web: www.brilliantechnology.com ...
