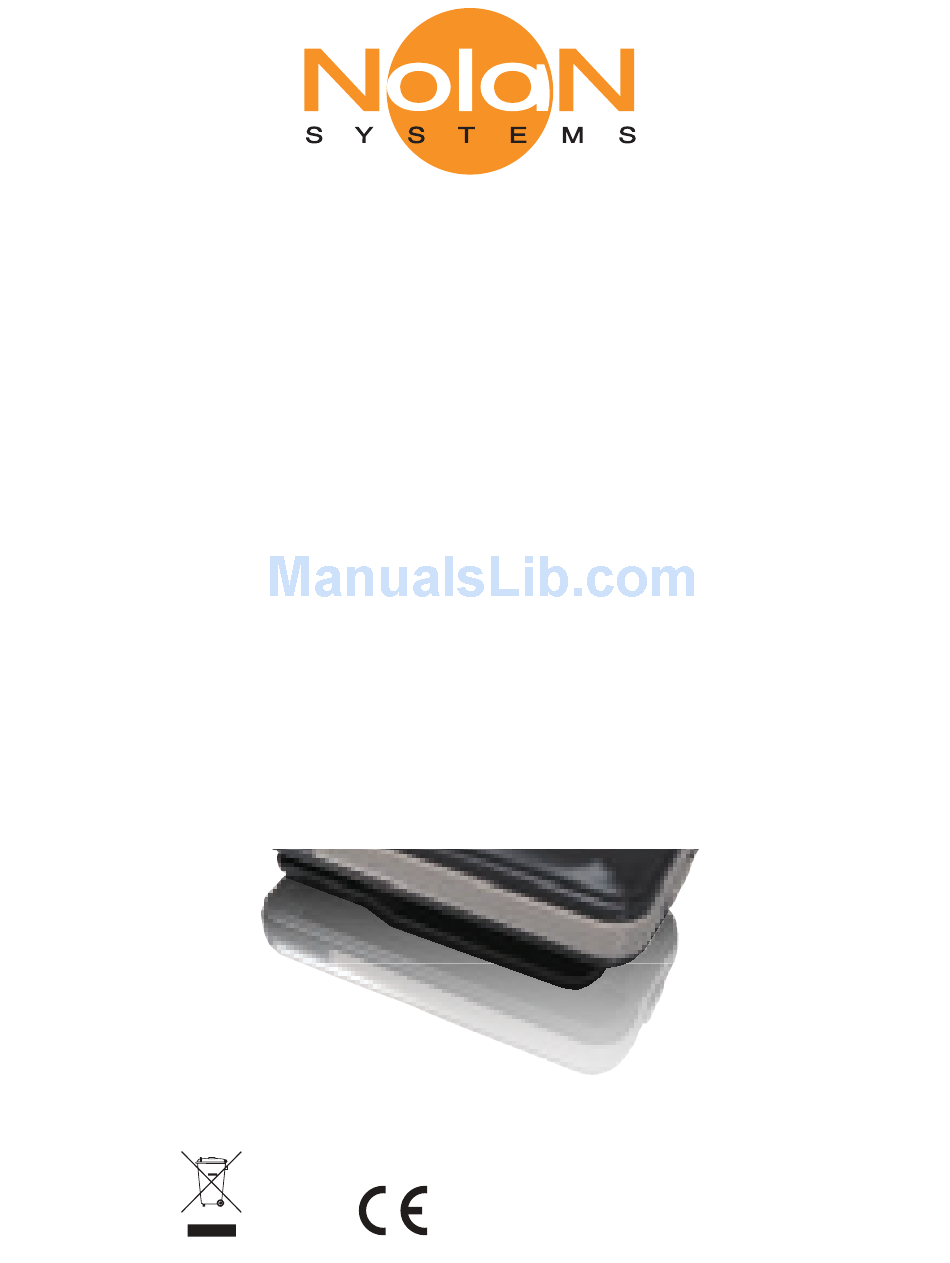

Page 1: User Guide
HearLinks Wireless Voice Receiver with Personal Sound Amplifier P/N NSRXRM3C2HL USER GUIDE Declaration Conformity. declare that product NSRXRM3C2HL conforms to the R&TTE Directive 1999/5/EC. FCC ID:TNZNSRXRM3C2XXX 0678... - Page 2 Introduction Thank you for choosing Nolan product. Nolan HearLinks Wireless Voice Receiver works as a personal sound amplifier, audio steaming, T-coil and Bluetooth phone receiver 4 in1; it can improve hearing impairments to understand more speech over a distance. Getting Started Remove all components from the package.
- Page 3 Please check the contents carefully and contact your local dealer immediately if anything is missing or damaged. Getting to Know Your HearLinks See image below. Please note some models of HearLinks will differ slightly in style, colour and the functionality may vary according to their specifica- tions.
- Page 4 Charging Your HearLinks Plug the USB charging cable into HearLinks mini USB connector. Plug the other side of the USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off.
- Page 5 Select desired working mode — Wireless or Personal Amplifier/T-coil Slide the Wireless/PA switch to select the working mode Wireless: In this mode, HearLinks works as a wireless receiver. It connects to Bluetooth mobile phone/PC or Bluetooth A2DP device such as audio streamer, remote microphone to answer phone call, listen music and voice.
- Page 6 Turn on and pairing HearLinks with your Bluetooth enabled device Select the wireless mode, then press and hold the MFB button for 2 seconds. HearLinks will be turn on and enter pairing mode with blue amber fast flashing alternatively. On other Bluetooth device, search and find the device named “HearLinks”, and then select “HearLinks”...
- Page 7 If pin code requested during pairing, please submit “0000” When pairing is completed and connecting, the blue will begin to flash slowly. Turn off HearLinks Press and hold the On/Off button for 2 seconds. amber LED will stay on for 1 second. Then, the HearLinks will be turn off.
- Page 8 Using HearLinks as wireless receiver Listen music or remote voice: When select the wireless mode, paired with Bluetooth A2DP device such as RemHearLinks, TRX_HD, TX, TxPlus, LiveMIC and BTMIC..etc, plug the earphone into the HearLinks audio jack, the audio or voice will be streamed to HearLinks and listen from earphone wirelessly.
- Page 9 “Transmitter” COAXIAL OPTICAL TRX_HD Transmitter Plus M I C R O PH O N E BTMIC TxPlus LiveMIC RemHearLinks...
- Page 10 Answer or end a call: When paired and connected with Bluetooth mobile phone, short press MFB button to answer incoming call or end ongoing call. To reject incoming call or redial last number, press and hold the MFB button for 1 second.
- Page 11 Using HearLinks for personal sound amplifier/T-coil When select the personal sound amplifier/T-coil mode, the green LED will flash slowly, the HearLinks will discard voice from wireless devices. The internal microphone or T-coil will provide sound to the earphone. PA mode T-coil sound sound source...
- Page 12 Adjust earphone volume HearLinks earphone volume can be adjusted to your desired hearing needs. The two buttons, “+” and “-”, allow you to adjust the earphone volume. User will hear a tone when reach max/min volume. To mute the earphone, long press “-” and short press “+”...
- Page 13 Enter the hearing preferences settings mode: Press and hold the MFB and L> (or <R) button simultaneously for 1 second till blue green light up at the same time.
- Page 14 Balance for L/R audio channel: Short press L>: Left channel enhance for 1 step, total 5 steps, user will hear a tone when reach max. Short press <R: Right channel enhance for 1 step, total 5 steps, user will hear a tone when reach max.
- Page 15 Hearing preference profiles setting: There are 5 different hearing preference profiles 1- Pass through by default 2- Low frequency noise reduction 3 -Speech high frequency enhancement 4- Middle and high frequency enhancement 5- Wider middle and high frequency enhancement 6- More middle and high frequency enhancement Short press + : ...
- Page 16 Exit the hearing preferences settings mode: After set to desired balance and hearing profile, you can single press the MFB button to exit. The blue green LED will be turn off and remain to the normally LED indication. All the currently volume, balance hearing profile...
- Page 17 HearLinks multi link with Bluetooth mobile phone and Bluetooth devices (A2DP) together at same time HearLinks supports multiple links to connect both Bluetooth mobile phone and Bluetooth A2DP device same time. Users receive sound/audio from Bluetooth A2DP device and answer incoming call from HearLinks directly. To pair and connect Bluetooth A2DP device and Bluetooth mobile phone at same time by using multiple links function of HearLinks, please follow...
- Page 18 4. After HearLinks and Bluetooth device are paired and connected, then you can turn on the Bluetooth function of mobile phone. In the Device list, select the name “HearLinks” to connect the HearLinks. AT&T 10:08 AM Settings Bluetooth Bluetooth DEVICES HearLinks Not Connected Now Discoverable...
-
Page 19: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of HearLinks working statues. Statues Indication Charging Amber LED is On Blue LED very slow flashing, approx. Not Connected every 5 seconds Wireless mode: Blue LED slow flashing, Connected approx. every 2 seconds Wireless mode: Amber Blue... -
Page 20: Troubleshooting
TROUBLESHOOTING Please note that you should also be familiar with the operation of your audio receiver, mobile phone or other connecting Bluetooth device. Please read the User Guide for your device carefully. Problem Likely Cause / Solution HearLinks does Distance between not reconnect. -
Page 21: Customer Service Information
CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view our website – www.nolan-sys.com or email info@nolan-sys.com or contact your local representative. DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and...
