LifeBook P1500
ESD Precautions are required when working on this LifeBook computer.
Make sure the LifeBook is turned off before beginning this disassembly
procedure.

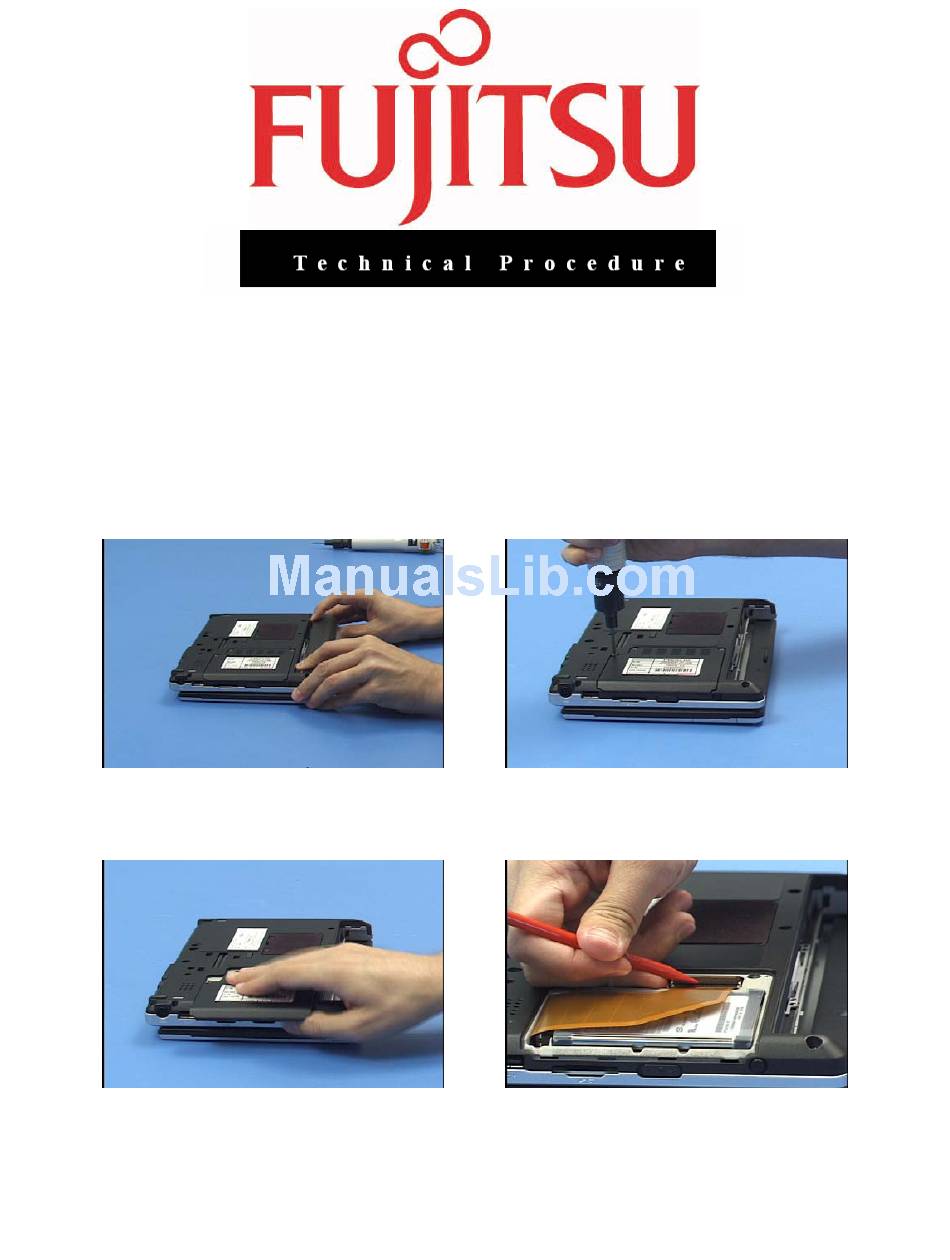

1. Turn the LifeBook over and
remove the battery.
3. Remove the cover.
Disassembly
2. Extract 3 screws from the Hard
Disk Drive cover.
4. Disconnect the drive cable.
Advertisement
Related Manuals for Fujitsu LifeBook P1500
Summary of Contents for Fujitsu LifeBook P1500
- Page 1 LifeBook P1500 Disassembly ESD Precautions are required when working on this LifeBook computer. Make sure the LifeBook is turned off before beginning this disassembly procedure. 1. Turn the LifeBook over and 2. Extract 3 screws from the Hard remove the battery.
- Page 2 6. Extract 2 screws from the RAM 5. Lift out the drive. cover. 8. Press out on the locking clips to 7. Remove the cover. release the RAM and lift it out. 10. Turn the LifeBook over, open it 9. Extract 11 lower case screws. slightly and stand it on its front.
- Page 3 14. Use a plastic screwdriver to pry 13. Open the LifeBook and lay it flat. up the keyboard upper cover and lift it out. 16. Disconnect the keyboard cable 15. Lift up the keyboard. and the TouchPoint cable and lift the keyboard out.
- Page 4 21. Lift the display off of the lower 22. Extract 6 upper case screws. assembly. 24. Lift up the upper case. 23. Disconnect the TouchPoint Buttons ribbon cable from the system board. 26. Peal the adhesive guide off of 25. Disconnect the microphone the TouchPoint Button assembly.
- Page 5 30. Press out on the locking clips to 29. Lift out the microphone and its release the WLAN card and remove cable. 32. Extract 4 screws from the 31. Disconnect the ribbon cable Daughterboard. from the Daughterboard. 34. Remove 2 hex screws from the 33.
- Page 6 38. Extract 1 screw from the metal 37. Lift it off. shield. 40. Extract 2 screws from the fan. 39. Disconnect the fan cable and lift the shield out. 41. Remove it from the metal shield. 42. Disconnect the external DC cable from the system board.
- Page 7 45. Lift it out, and disconnect the 46. Lift out the RJ45 connector. RJ45 connector’s cable from it. 47. Lift out the RJ11 connector. 48. Lift out the external DC connector. 49. Extract 2 screws securing the 50. Lift out the speaker bracket and speaker bracket.
- Page 8 53. Extract 1 screw from the stylus 54. Remove 8 screw covers from the holder and lift it out. front of the display. 55. Extract the 8 screws underneath. 56. Pry around the perimeter of the display to release the front cover from the rear and lift it off.
- Page 9 61. Extract 1 screw from the right 62. Disconnect its cable and antenna. remove it. 63. Extract 2 screws from the 64. Disconnect its cables and suspend switch PCB. remove it. 65. Disconnect the backlight cable 66. Extract 1 screw from the corner from the inverter.
- Page 10 70. Extract 2 screws from the 69. Lift out the inverter and application panel PCB. disconnect its power cable. 72. Extract 2 screws from the display 71. Disconnect its cable and latch. remove it. 73. Remove the latch. 74. Extract 4 screws from the hinge. 76.
