Camray C-300 Manual Instruction

Manual Instruction
Compact Lighting System
Contents

1. Before using

2. Name of parts

3. Functions Of Control Panel
4. Specification
5. Operation
6. Characteristics Of Camray
7. Maintainance
8. Trouble Shooting
1. Before using
This flash is a very precise photographic equipment therefore don't forget to read this operation
manual very carefully before using.
1. Please read Operation Manual before using it.
2. Input voltage should be checked before use.
3. Don't move or shock when power on. Coil of modeling lamp might be cut off in case of
moving with lamp on.
4. Connect to the properly functioning and grounded 3-pin receptacles only.
5. Attach or disattach reflector, snoot, or other accessories after halogen lamp turned off and
cooled off.
6. Be careful of electric shock when using this equipment in humid places.
7. Keep this equipment where children can not be reached.
8. Keep the subject minium 1m far from the flash.
9. Rated maximum ambient temperature : Ta 25
10. The lamp shall be change if has become damage or them ally deformed.
11. Minimum distance from flammable to all exterior surface the luminary : 1m
1
www.alb.co.kr
C-300
°C

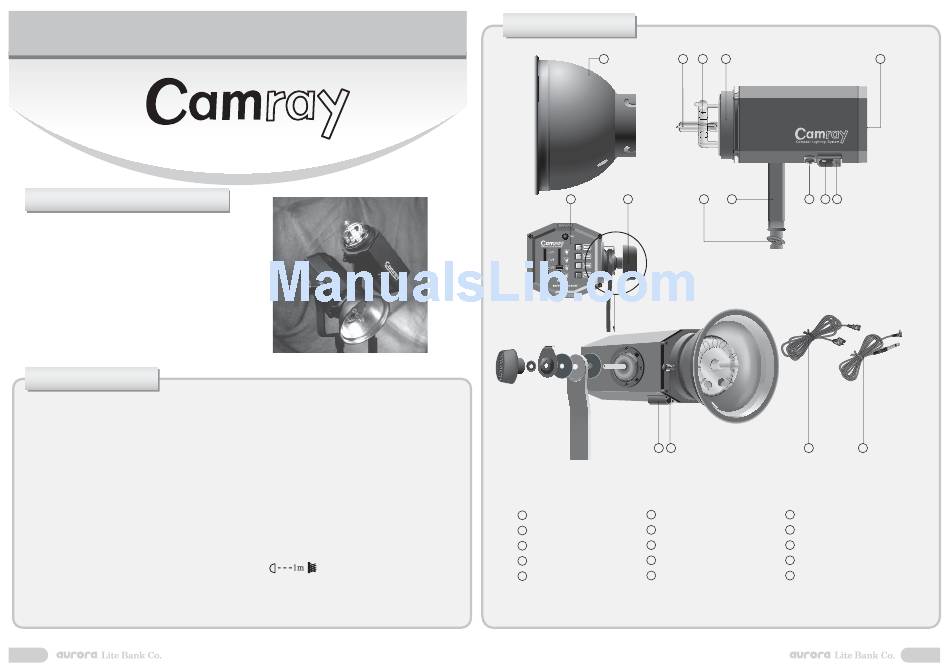

2. Name of parts
1 2
5 6
"L" Bracket Assembling
12 13
Reflector "L" bracket fixing knob
6
1
Modeling lamp Stand fixing bolt
7
2
Xenon tube "L" bracket
8
3
Synchro socket "X"
Xenon tube plate
4 9
Control panel AC input socket(220/110V)
5 10
3 4 5
7 8 9 10 11
14 15
Fuse holder & Fuse(250V/10A)
11
Umbrella Fixing bolt
12
Reflector Fixing bolt
13
AC input cord
14
Synchro cord
15
