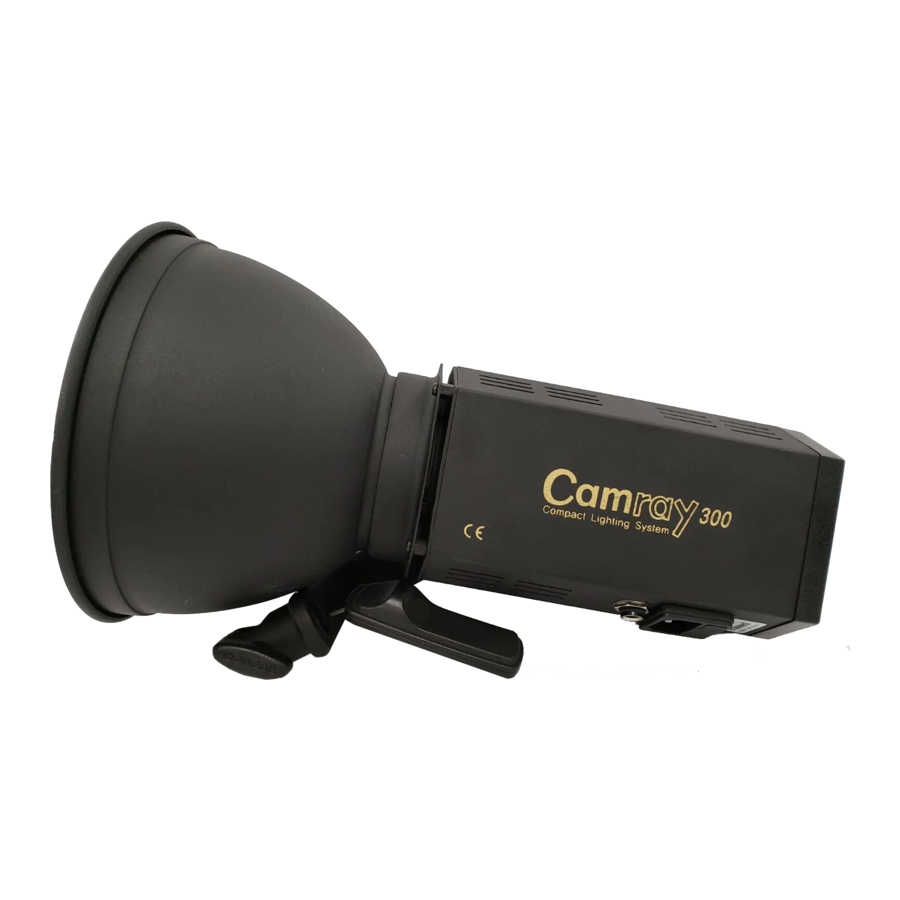

Camray C-300 - Camera Flash Manual

Before using

This flash is a very precise photographic equipment therefore don't forget to read this operation manual very carefully before using.

  1. Please read Operation Manual before using it.
  2. Input voltage should be checked before use.
  3. Don't move or shock when power on. Coil of modeling lamp might be cut off in case of moving with lamp on.
  4. Connect to the properly functioning and grounded 3-pin receptacles only.
  5. Attach or disattach reflector, snoot, or other accessories after halogen lamp turned off and cooled off.
  6. Be careful of electric shock when using this equipment in humid places.
  7. Keep this equipment where children can not be reached.
  8. Keep the subject minium 1m far from the flash.
  9. Rated maximum ambient temperature: Ta 25°C
  10. The lamp shall be change if has become damage or them ally deformed.
  11. Minimum distance from flammable to all exterior surface the luminary: 1m

Name of parts

Name of parts

  1. Reflector
  2. Modeling lamp
  3. Xenon tube
  4. Xenon tube plate
  5. Control panel
  6. "L" bracket fixing knob
  7. Stand fixing bolt
  8. "L" bracket
  9. Synchro socket "X"
  10. AC input socket(220/110V)
  11. Fuse holder & Fuse(250V/10A)
  1. Umbrella Fixing bolt
  2. Reflector Fixing bolt
  3. AC input cord
  4. Synchro cord

Functions of Control Panel

Functions of Control Panel

  1. Photocell: Sensor for lights
  2. Ready: Lighting test, lights up when pressed.
  3. Slave: On/off switch for synchro sensor.
  • On(Green lamp on): Operated by synchro sensor or synchro cord
  • Off(Green lamp off): Operated by synchro cord only.
  1. Alarm: On/off switch for alarm (checking the charging status)
  • On(Green lamp on): Beeps while being charged, stops beeping when over.
  • Off(Green lamp off): Resets alarm
  1. Power: Main power switch
  • On (Red lamp on)
  • Off (Red lamp off)
  1. Flash: Controler for output volume (1/8 Minimum - 1/1 Maximum)
  2. Model: Controler for modeling volume ( Minimum - Maximum)

Specification

Subject Max. Output C-300 300W/s
Input voltage AC 220V 50/60Hz
Recharging time 0.5~2.0sec
Flash Duration 1/700~1/1,600sec
Color Temperature 5500±100 K
Modeling lamp Halogen: 100W
Triggering method Synchro cord, Slave, Test button, IR
Working voltage Stepless volume control (50~300W/s)
Modeling lamp voltage Stepless volume control (25~100%)
Output tolerance ±0.1%
Synchro ON/OFF switch
Alarm ON/OFF switch
Chasis Titanium, Aluminium
Size 26×16×10cm
Weight 1.6kg
Items attached Standard reflector, modeling lamp, synchro cord
Options Snoot, spot, softbox, umbrella, barn-door, honeycomb grid, bag
Triggering voltage DC 12V

Operation

  1. All powers are lowered and lighting volume is minimised when the flash was released from the factory.
  2. Check the modeling lamp volume, flash volume, and the power is turned off before power on.
  3. Connect synchro cord to the synchro socket.
  4. Turn on power button(Red lamp on).
  5. Never forget to discharge the remaining electric currency before turns off the mail power.

Characteristics of Camray

  1. Small, lightweight and reasonable price compared to quality and function.
  2. Very convenient to control modeling lamp by stepless slide volume and flash volume by touch button.
  3. It easy to insert in & out PCBs.
  4. Very suitable for portrait, profile, and digital photographing.
  5. Umberella reflector, snoot, honeycomb grid, barn-door, softbox, bags are available for customers convenience.

Maintenance

  1. How to replace modeling lamp (BASE:E-11 or E-27)
    • Cool off and then take out the modeling lamp.
    • Be careful not to leave fingerprints or stains on the lamp, clean up the surface of lamp after replacement.
  2. How to replace a fuse
    • First take out the electricity cord.
    • Disassemble fuse holder and take out the fuse.
    • Check the fuse is short and replace it with a spare fuse in the fuse holder.
  3. How to keep flashes
    • Protect pirex dome and xenon tube from dust or stain while being kept
    • If there are dust or stain on the pirex dome or xenon tube which lifetime might be shortened or lead lower color temperature, clean up them with soft fabric.

Remarks: It might not recharge fully when a rated voltage is higher than input voltage.
In this case, please check input voltage.
This product can be modified for better quality without prior notice.

Trouble Shooting

STATUS ESTIMATED CAUSE TROUBLE SHOOTING


Photo cell does not operate

 Slave off. Check whether cell is on or not.
The light does not reach photo cell. Change the position of flash so that light can reach the photo cell
Too much light shines photo cell. Isolate the flash from very strong light.

Synchro cord does not operate

 Dust or stain on the synchro cord jack Remove dust or stain
Shortened synchro cord or bad connection Replace it (Check whether it turns on or not by pressing test button)

No operation

 No electricity
  • Check if the electricity cord is well inserted.
  • Check if the contact of consent is OK.
  • Check the fuse.

Others

 Please consult A/S center or manufacturer. They will provide you safety, insure proper operational functions and provide continuation of your warranty.

This product can be modified for better quality and function without prior notice.
741-1 Sangyeck-dong, Buk-gu, Korea / www.alb.co.kr ; / e-mail: alb@alb.co.kr
Tel: +82 53 384 9874 / Fax: +82 53 384 9886 / For product consulting, call us: +82 53 384 9870
