Koutech IO-FMP220 User Manual

3.5" internal floppy with card reader multi media device

Hide thumbs

Table of Contents

Quick Links

Download this manual

Trademarks ---------------------------------------------------------------------

Introductions -------------------------------------------------------------------

Package contents ----------------------------------------------------------------

Hardware requirements ------------------------------------------------------

System Supports -----------------------------------------------------------------

How to install multi media device ------------------------------------------

Card reader software installation ------------------------------------------

Windows

How to use floppy disk drive --------------------------------------------------

How to use your media memory cards --------------------------------------

Indicator description ---------------------------------------------------------

Product specifications --------------------------------------------------------

User Manual

(Rev.: V1.1)

INDEX

XP software installation ---------------------------------

Vista software installation -------------------------------

１

Table of Contents

Need help?

Do you have a question about the IO-FMP220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Koutech IO-FMP220

Page 1: Table Of Contents
” ” User Manual (Rev.: V1.1) INDEX Trademarks --------------------------------------------------------------------- Introductions ------------------------------------------------------------------- Package contents ---------------------------------------------------------------- Hardware requirements ------------------------------------------------------ System Supports ----------------------------------------------------------------- How to install multi media device ------------------------------------------ Card reader software installation ------------------------------------------ ® Windows XP software installation --------------------------------- ® Windows Vista software installation ------------------------------- How to use floppy disk drive -------------------------------------------------- How to use your media memory cards --------------------------------------...
Page 2: Trademarks

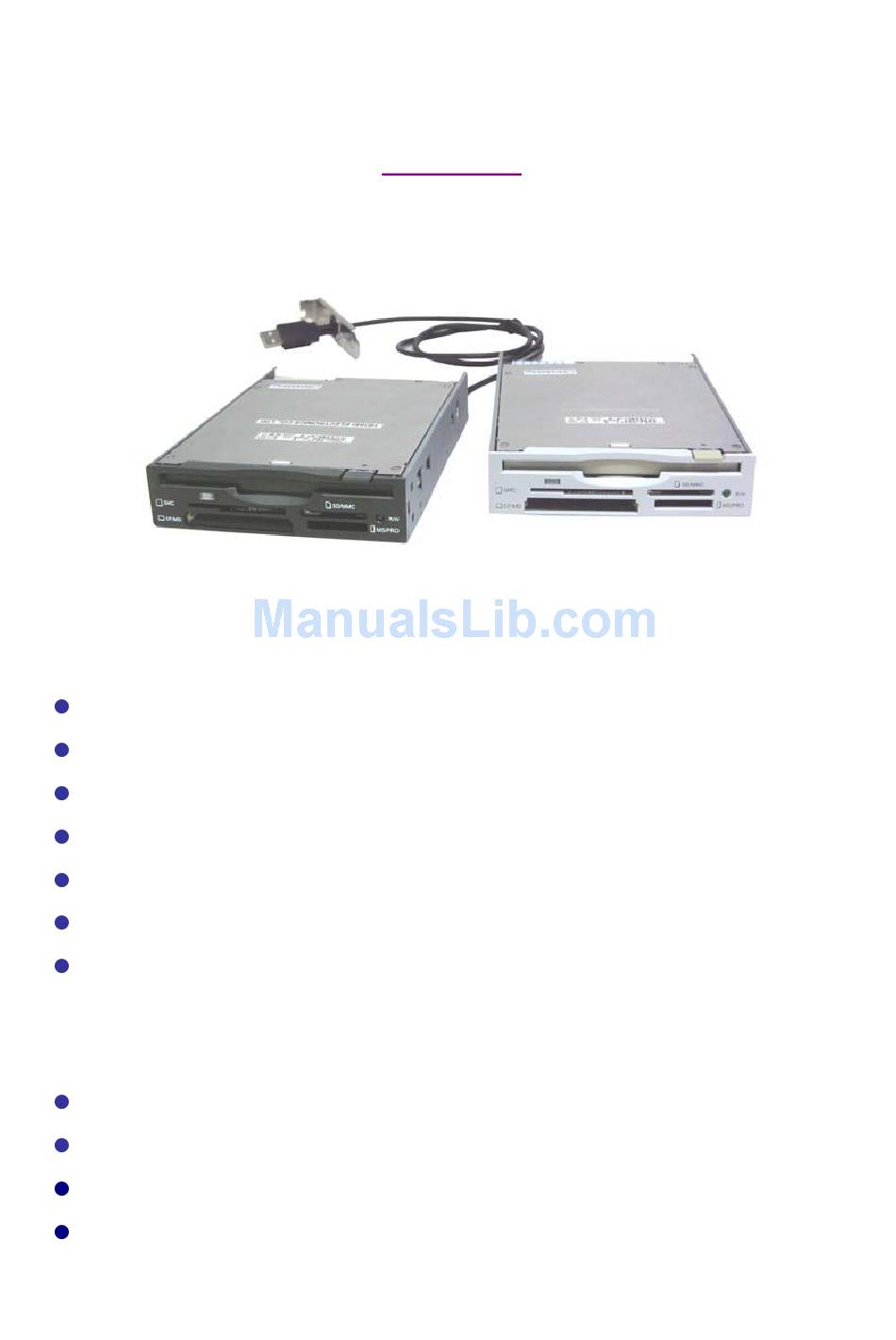

Trademarks All names and products mentioned below are registered trademarks of their respective companies. Introductions The Multi Media Device combine with floppy drive and card reader in a single 3.5" for a space saving design which can let you install into any standard floppy disk drive bay, it is ideal for replacing your existing internal 1 inch height floppy drive to a multi media computer.
Page 3: How To Install Multi Media Device
How to Install Multi Media Device --------------------------------------------------------------------------------------------------------------------- CAUTION: Always turn off and disconnect the power cord before opening the computer’s cover to avoid an dangerous electric shock. Electrostatic discharge can damaged electronic components. Be sure you are properly grounded before beging any procedure. You can touch a metal part of the computer’s chassis or power supply unit to discharge any static charge that may have built up inside your body.
Page 4 7. Connect 4-pin power cord to floppy’s power connector JP1 Note: The red wire orient towards the JP1 Pin-1. Refer to following photo. 8. Remove a free slot’s metal cover in rear side and connect the attached USB cable to an external USB port via this PCI slot.
Page 5: Card Reader Software Installation
Card Reader Software Installations The card reader need to install application driver for showing media icon on your Windows, you can find the software program in bundle disc and follow next steps to complete the software installation. Note: All installation steps may be a little different from this guide when you using a new upgrade O.S. version, in this situation please follow the Windows prompt steps to complete the installation procedure.
Page 6 6. Click “Yes” then “Finish” button to restart your computer. 7. Reboot your system, the Windows will detect reader and display four recognizable icons in “My Computer”, now you can insert your memory card for application. If you have any problem of using media card, you can refer to next “How to use your media memory cards”...
Page 7: Windows Vista Software Installation
8. When system detects an existent media card successfully in card slot, the gray media icon will change to a colorful icon for identification. (Refer to the following illustration) ® Windows Vista software installation 1. Close all of your exist executing file. 2.
Page 8 5. Plug your card reader to an USB port and click “OK” button to continue. 6. Click “Yes” then “Finish” button to restart your computer. ８...
Page 9 7. Reboot your system, the Windows will detect reader and display four recognizable icons in “My Computer”, now you can insert your memory card for application. If you have any problem of using media card, you can refer to next “How to use your media memory cards”...
Page 10: How To Use Floppy Disk Drive
How to use floppy disk drive The floppy drive doesn’t install any software driver before you use, just insert your floppy disk as following photo direction then you can read, write or delete files whatever you need. Otherwise you can push the button to eject the floppy disk out. Note: Certainly you need to format your floppy disk in first time before you use.
Page 11 SMC/xD slot: This slot place in top-left of front bezel and label as “SMC”. It can accept Smart Media™ memory card and xD™ picture card, the gold plate must be downward when you insert it. SD/MMC slot: This slot place in top-right of front bezel and label as “SD/MMC”, it can accept Secure Digital card and Multi Media card.
Page 12: Indicator Description
MS/MS Pro slot: This slot place in bottom-right of front bezel and label as “MS/Pro”, it can accept ® MS 、 MS-Pro 、 MS-DUO. The gold plate must be downward when you insert Sony Note: When you using mini memory cards such as Memory Stick DUO, mini SD, T-flash (micro SD) or RS MMC to this reader, you need to utilize an adapter then card slot can accept it.
Page 13: Product Specifications
Product specifications Specifications: Media device: Floppy disk drive with multi card reader Five Media Slots: Floppy disk drive CF/MD SMC/xD SD/MMC MS/MS Pro 720KB &1.44MB floppy disks Memory Stick Media supports: Memory Stick Pro Compact Flash™ Type I Memory Stick Duo Compact Flash™...
