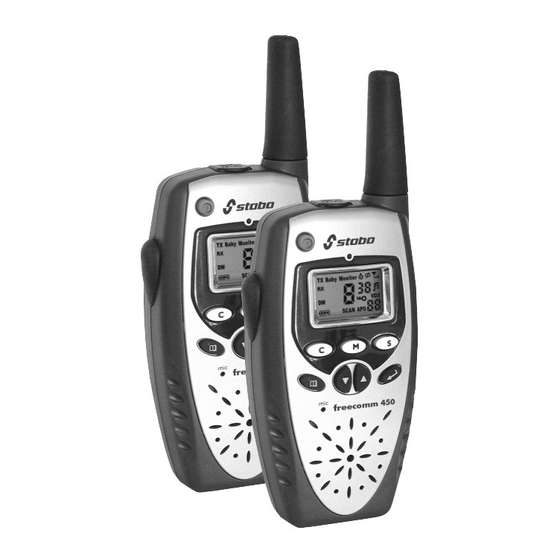

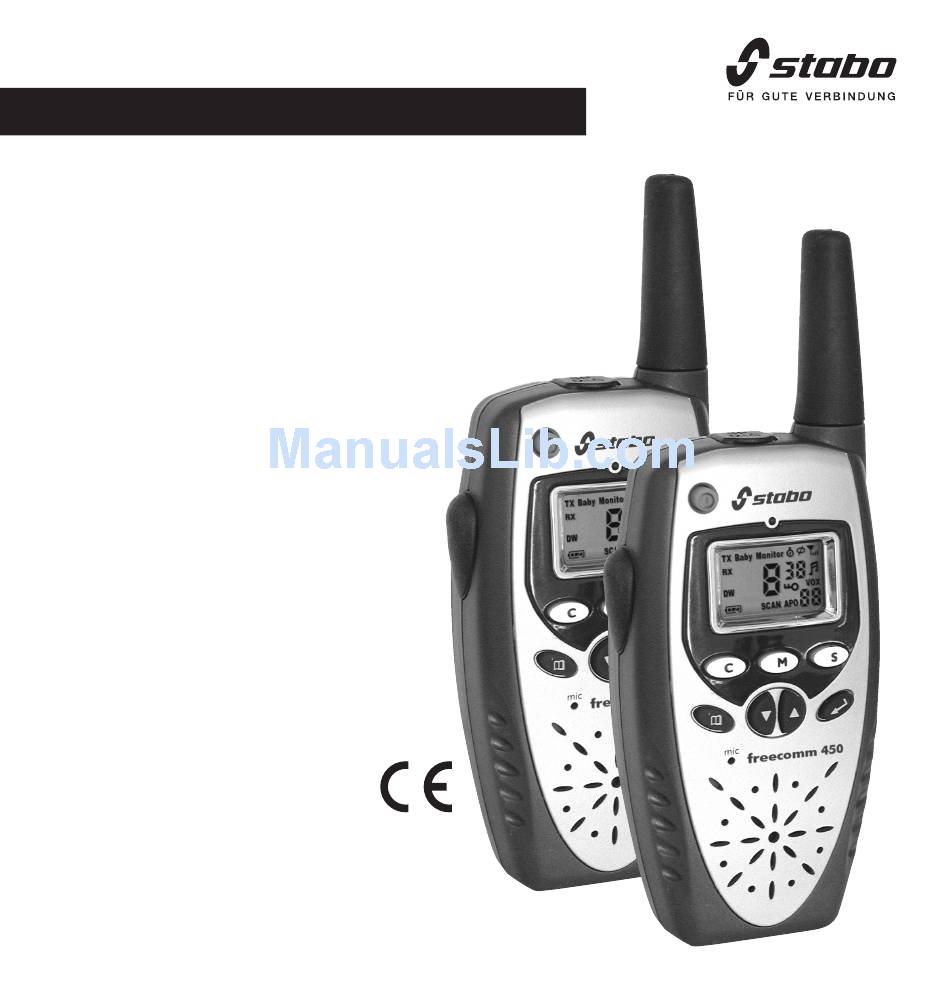

- Page 1 PMR 446 radio handheld Art.- Nr. 20455 stabo freecomm 450 Owners Manual Important Before your installation please read this manual carefully and keep it for further information...
-
Page 2: Table Of Contents
Table of contents General notes ..........................3 Safety warnings ..........................3 Important information........................4 Scope of delivery ..........................5 Control elements and connections ....................6 On the display..........................8 Important provisions for the operation ..................9 Charging of the battery packs ....................9 Safety instructions for the charger ...................9 Removing/inserting the battery pack ..................10 Operation with batteries ...................... -
Page 3: General Notes
General notes Please read this manual carefully and completely to make yourself familiar with the vari- ous functions of your radio set. Make sure to observe the safety instructions to avoid any danger for you and other persons as well as damage to the radio set. Keep the operating instructions in a safe place. -
Page 4: Important Information
450 is a PMR 446-radio set for voice radio over short distances. The radio standard PMR 446 is assigned in AT, BE, CH, DE, DK, ES, FI, FR, GB, GR, IE, HR, HU, NL, NO, PL, PT, SE, SI (free of charge and without any registration). -
Page 5: Scope Of Delivery
Scope of delivery 2 PMR 446 hand voice radio sets 2 belt clips 1 design double tabletop charger 1 power supply unit 230 V/50 Hz 2 NiMH battery packs 700 mAh/3.6 V * * Important information: Both NiMH-battery packs have already been inserted correctly into the radio sets! Before you can use the radio sets the battery packs have to be charged for 12 to 14 hours. Before the first charging you have to pull the contact protection strip out of the ... -
Page 6: Control Elements And Connections
Control elements and connections 1. Antenna The antenna is fixed to the housing; do not try to unscrew it! 2. LC display 3. Monitor key M A short keystroke bypasses the squelch (the display shows “RX“) for 15 sec. or until renewed short keystroke. 4. - Page 7 9. Battery lock 10. Battery cover 11. DOWN key t Stepwise or continuous turning down the volume In the Set menu: Stepping forward through the individual settings 12. Microphone 13. Menu key Switching over to the Set menu and stepping forward to the individual functions 14.
-
Page 8: On The Display
The display: Shows whether you are transmitting Shows when your radio set is receiving a signal Shows when your radio set is receiving a signal Dual Watch is activated Battery charge indicator (3 steps) Baby sitting: Radio set is activated as baby sitter Baby sitting: Radio set is activated as listening set for parents Shows the adjusted channel number SCAN is activated... -
Page 9: Important Provisions For The Operation
Important provisions for the operation! The battery packs included in the scope of delivery have already been inserted correctly into the radio sets! Before the commissioning of the radio sets the battery packs have to be charged (charging time approx. 12 to 14 hours). Note: Before the first charging you have to pull the contact protection strip out of the ... -
Page 10: Removing/Inserting The Battery Pack
There is explosion hazard! The charger must only be operated with the delivered power supply unit. Do not abuse it as DC voltage source for other applications. Prevent small metal parts from penetrating into the charger. Do not disassemble neither the power supply unit nor the charger. Disconnect the device from the mains if you do not use it. -
Page 11: Energy Management
Energy management The power consumption of this radio set is very small. If no signal is received, the electronic battery stand-by mode is activated. If the capacity of the battery pack is too low or if the batteries are empty, the radio set will emit an audio warning that is repeated every 15 sec. Now you have to charge the battery pack or replace the batteries. -
Page 12: Transmitting/Receiving
Transmitting/receiving Hold the PTT button pressed and speak with normal voice level and a distance of approx. 5 cm into the microphone. If your message is finished, release the PTT key, thus you free the channel and your radio partner can reply. If you receive a signal, RX will be displayed. Automatic squelch Your radio set is equipped with an automatic squelch that prevents that an annoying noise can be heard on free radio channels. -
Page 13: Call Tone
Note: You and your partner have to adjust the same speech scrambling code! Your radio set is equipped with 4 speech scrambling codes that are designated as 1, 2, 3, and 4 in the menu. The display OF means: no scrambling. Activate speech scrambling 1. -
Page 14: Automatic Scan
Display lighting A short stroke on the key activates the display lighting for approx. 5 sec. Automatic scan The automatic scan permits to find active channels quickly. It scans independently all of the 8 channels and stops as soon as a signal exceeds the squelch threshold. After having found a signal scanning will stop. -
Page 15: Vox Function
Deactivate the stop watch Push the or the key, the channel number is displayed. VOX function (phonetic transmission) This function permits to send without activating the transmit key: Voices/noises that hit the microphone thus switch on the transmitter of the radio set. In order to avoid a permanent accidental activation of the radio set by environmental noises, the VOX function is only activated in a distance of up to approx. -
Page 16: Baby Sitter Function
Note: Check (with an assistant or for instance with a portable radio as sound source), whether there is sufficient radio reception between the children’s room and the room where you stay! Optimise the position of the radio set, if required. Baby sitter function This additional function assures that the sleep of your child is not disturbed by accidental transmission (possibly from the neighbourhood). -
Page 17: Care Instructions
Activate APO 1. Push the key nine times until APO is displayed and 0 is flashing. 2. Select 1, 2, 3 or 6 by means of the keys s or t. 3. Validate by means of the PTT or key, APO is displayed. ... -
Page 18: Troubleshooting
Troubleshooting Fault Your radio set cannot be switched on. Remedy Charge the battery pack or renew the batteries. Fault You can neither speak nor hear your radio partner. Remedy Adjust the same channel and possibly the same CTCSS-tone for all radio sets. If you are out of reach, reduce the distance to your radio partner. -
Page 19: Manufacturer Warranty
Manufacturer warranty We offer a 2-year warranty for the product stabo freecomm 450 Set. The warranty period starts with the day you have bought the product (please keep the receipt as proof of purchase in a safe place!); the validity period of the warranty is not extended, if the product is exchanged or repaired. - Page 20 Errors and technical modifications reserved. Copyright © 08/2008 stabo Elektronik GmbH stabo Elektronik GmbH . Münchewiese 14 –16 . 31137 Hildesheim/Germany Tel. +49 (0) 5121-76 20 - 0 . Fax: +49 (0) 5121- 51 29 79 Internet: www.stabo.de . E-Mail: info@stabo.de...
