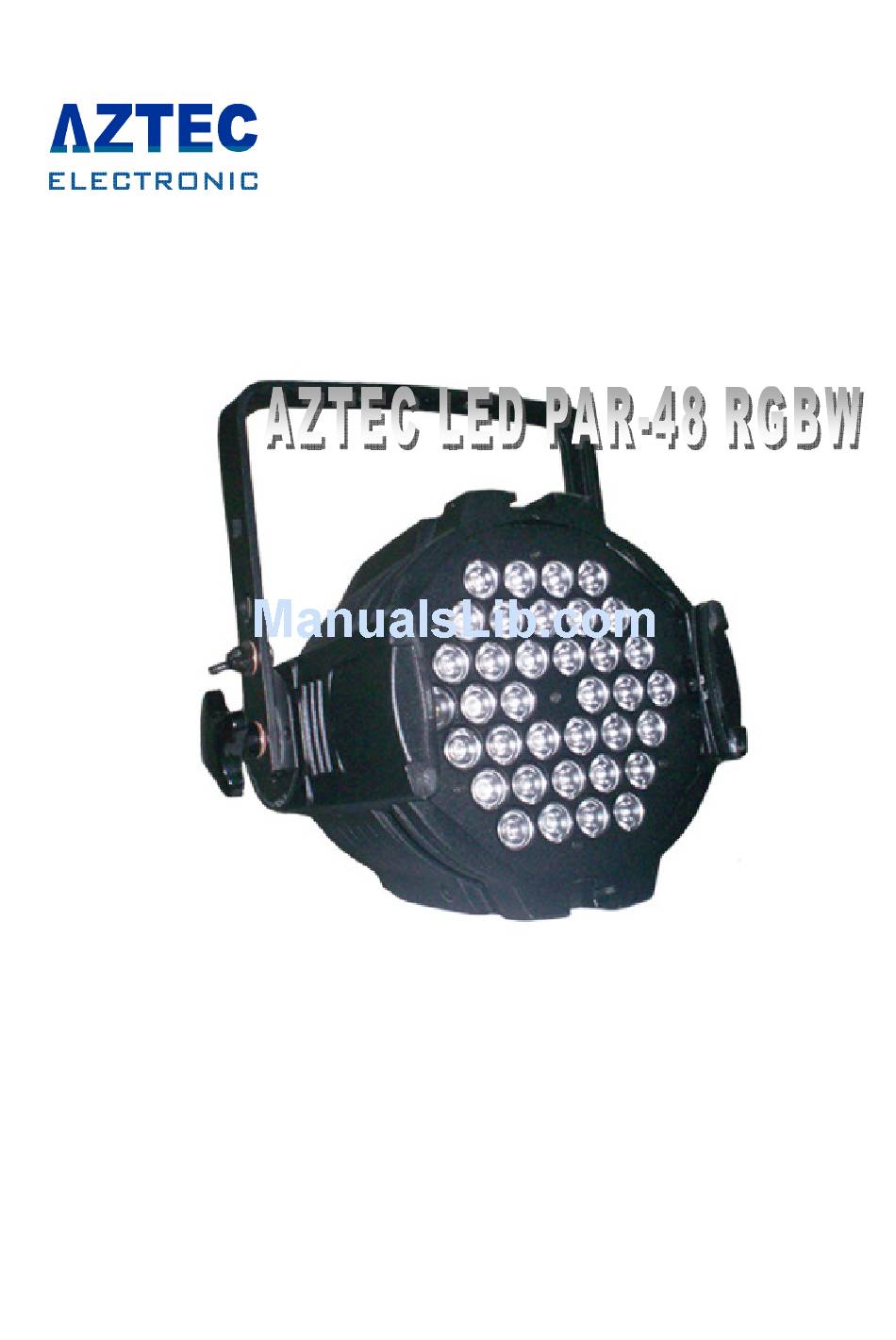

- Page 1 USER INSTRUCTION MANUAL...
- Page 2 You may also visit us on the web at www.aztec-electronics.com for any comments or suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
- Page 3 Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your AZTEC LED PAR WASH-48. The AZTEC LED PAR WASH-48 is available in 220v version. Because line voltage may vary from venue to venue, you should be sure your unit voltages match the wall outlet voltage before attempting to operate you fixture.
- Page 4 • DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller such as as the AZTEC Lighting Controller Series.
- Page 5 DMX-512 protocol. The LED PAR-48 RGBW is an eight channel DMX unit. The DMX address is set on the back panel LED Display of the LED PAR-48 RGBW. Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for data input and data output.
- Page 6 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (AZTEC part number DMX/T) will decrease the possibilities of erratic behavior.
- Page 7 DMX 512 controller such as as the Martin Light Jockey / AZTEC CX-12ii™. Sound Active Mode: In this mode the AZTEC LED PAR-48 RGBW will react to sound, and chase through the different Dimming. 1. Plug the fixture in and Change Mode to “BEBE”...
-
Page 8: Troubleshooting
Unit does not respond to sound: 1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved; Contact AZTEC-ELECTRONICS DISTRIBUTOR & DEALERS for service. www.aztec-electronic.com www.aztec-electronics.com support@aztec-electronic.com... - Page 9 CLEANING Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
