Summary of Contents for ILY Enterprise SlimDVDup

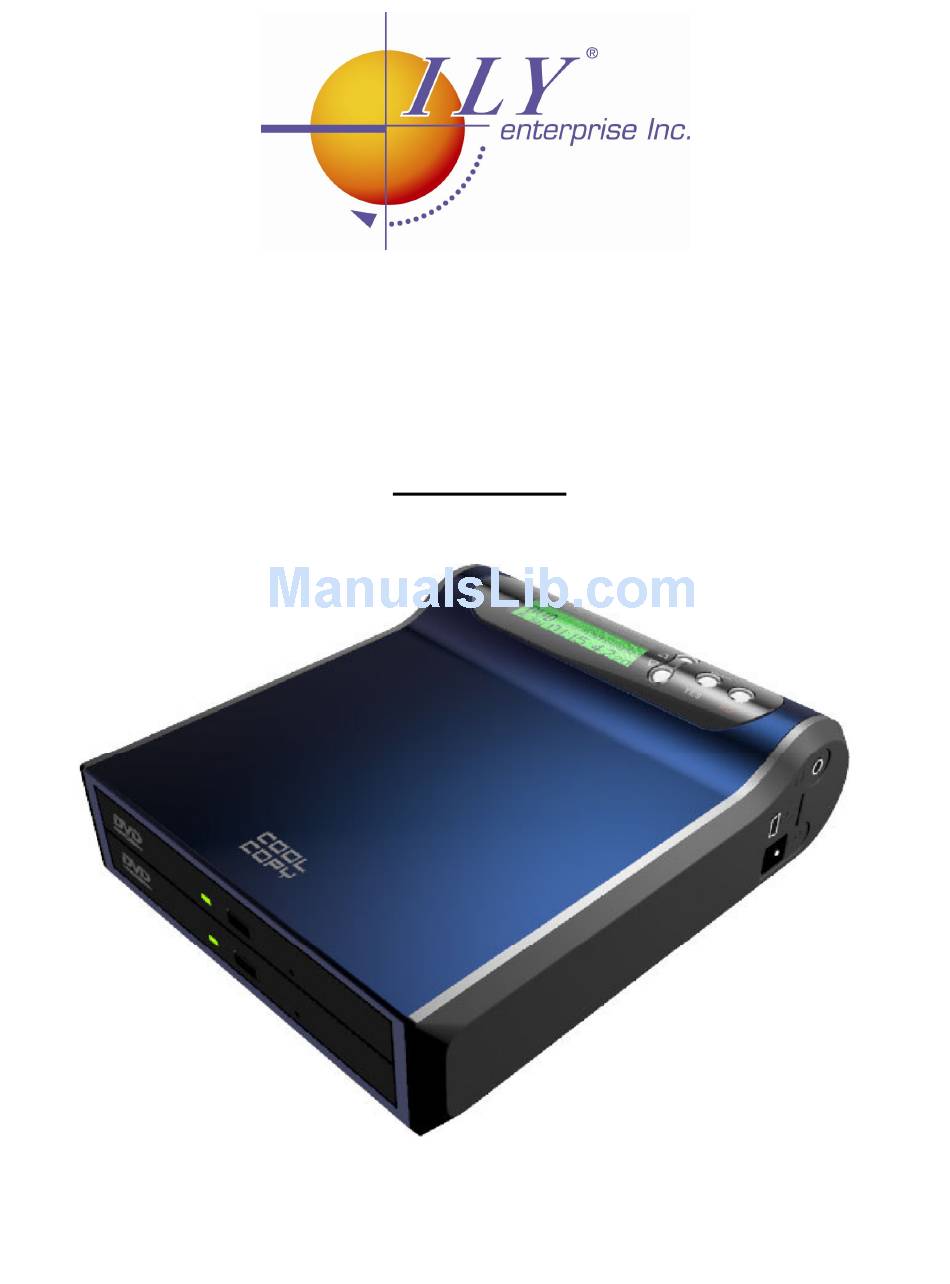

- Page 1 Single Target 1 to 1 DVD Duplicator User’s Manual Model Number: SlimDVDup Version: 2.0...
- Page 2 WARNING! The SlimDVDup is to be used legally to duplicate discs for personal use. We discourage owners of the SlimDVDup from using this product to duplicate copy-righted discs without the owner’s consent. Note: The SlimDVDup will not copy protected DVD or CD discs.
-
Page 3: Important Safety Precautions
Important Safety Precautions For U.S.A TO THE USER This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment generates, uses, and can radiate radio frequency energy and, if not installed and use in accordance with the instruction manual, may cause harmful interference to radio communications. -
Page 4: Table Of Contents
Table Of Contents: Table Of Contents:......................3 Chapter 1 Introduction....................4 1.1 General Introduction....................4 1.2 Overview of the SlimDVDup Single Target DVD Duplicator......4 1.3 Main Features......................4 1.3.1 Easy setup .......................4 1.3.2 Friendly interface....................4 1.3.3 Disc format.......................5 1.3.4 Power design....................5 1.4 Package contents:......................5 Chapter 2 Operating Instructions ................6... -
Page 5: Chapter 1 Introduction
DVD/CD disc quickly and easily. The SlimDVDup can read all kinds of DVD or CD discs. Its innovative design and multifunction LCD panel makes the SlimDVDup very user-friendly. It is a cost-efficient CD/DVDR/RW duplicator for audio, data, multimedia and video applications. -
Page 6: Disc Format
2, Multi-session Photo CD, CD-I, Video CD and CD Extra (CD Plus). 1.3.4 Power design AC 100V~220V.input range with single 5Vdc output to maximum 3.8Amp. 1.4 Package includes: 1. 1 SlimDVDup 1 to 1 DVD/CD Duplicator 2. 1 USB Cable 3. 1 User’s Manual 4. 1 Power Adapter... -
Page 7: Chapter 2 Operating Instructions
Executes the function that you select Cancel the function that you have selected Once the SlimDVDup is turned on, navigate through the menu by pressing the UP or DOWN buttons and you will find the eight major functions listed sequentially on LCD as follows: 1. -
Page 8: Power On And Off
ALL MAIN FUNCTIONS ARE DESCRIBED AS FOLLOWS: 2.0 Power ON and OFF You can turn on & turn off SlimDVDup duplicator. Press the YES button about 2 seconds and the unit will be turned ON. Press the YES button about 4 seconds and the unit will be turned OFF. - Page 9 Data length written (%) Waiting for synchronize The SlimDVDup will synchronize the disc you create and write the section Finish copying. The DVD-RW tray will automatically eject the disc when the copying process is complete. If you want more copies, all you have to do is place another blank disc into the target drive.
-
Page 10: Test Copy Disc
Place the master disc in DVD-ROM, and Blank disc in DVD-RW drive Move the cursor to the Test Copy Disc function and press OK The SlimDVDup will start to simulate the copying process and check the feasibility of data writing... -
Page 11: Copy Track
The DVD-RW tray will eject when finished testing. Please press the NO button to go back to main menu. 2.3 Copy Track You can edit your personal audio CD with Copy Track function. Put the audio CD into master drive (DVD ROM), and the recordable CD-R into target drive (DVD RW). -
Page 12: Quickerasedisc
Disc Select the Quick Erase Disc function and press The SlimDVDup will automatically process the following steps to execute the erase functions. Press to close this function and go back to main menu or you may put the next DVD-RW to continue erasing disc. -
Page 13: System
Completely remove all data from a DVD-RW disc. The more data on a DVD-RW, the longer time it will take to erase the disc. Select the Full Erase Disc from the main menu and press . The process is the same as the Quick Erase Disc function. 2.7 System This function provides information about the DVD-ROM drive, DVD-RW drive and DVD Backup. -
Page 14: Show Dvd-Rw
Function [7.1] shows the model name and version of DVD-ROM drive. Press the button then LCD will show as follows DVD-ROM Model name DVD-ROM Version 2.7.2 Show DVD-RW 2.DVD-RW. Function [7.2] shows the model name and version of DVD-RW drive. Select 7.2 Show DVD-ROW function Press the button then the LCD will shown as follows. -
Page 15: Update Bios
N o N e w B I O S B I O S version is not newer than the system. If the SlimDVDup detects the latest BIOS version in the BIOS disc, it will automatically update the old Bios to a new one. -
Page 16: Machine Info
Erase Flash ROM. Updating BIOS Process completed New BIOS Update! Restart System! System reboots. After updating new BIOS, the system will reboot. You can see the new version of DVD Backup display. 2.7.4 Machine Info Function [7.4] shows the machine information of the BIOS. Select 7.4 Machine Info function. -
Page 17: Burn In
2.7.5 Burn In 2.8 Music Player The SlimDVDup can be used as an audio CD player when you choose the Music Player function. Here is an image of the Music Player function screen This is the image you’ll see when the SlimDVDup is loading your audio CD... - Page 18 When you come to this screen, you decide which track you want to listen to. When you come to this screen, you decide whether you want to listen to it once or have the tracks repeat. You can press YES button to pause player, hitting it again will play. Hold UP/DOWN to increase/decrease volume.
- Page 19 Copyright © 2015 by ILY Enterprises, Inc. All Rights Reserved.
-
Page 20: Chapter 3 Usb 2.0 Interface
The SlimDVDup can be hooked up directly to a PC. When you hook up the SlimDVDup to a PC, it will work as two drives, one external USB 2.0 DVD-ROM drive and one DVD-RW drive. All you need to do is connect the SlimDVDup up ANYTIME to a PC with the USB cable that is included. -
Page 21: A: Faq
Appendix A: FAQ If you place the wrong type of disc in the DVD-RW drive, the LCD will show the message: Error…… No Blank Disc Target is not blank disc If you decide to duplicate a DVD-R disc, you will need to use a blank DVD-R disc. If you are using a DVD-RW disc, you will probably need to execute the [Quick Erase Disc] function to remove data on the DVD-RW disc. -
Page 22: B: Specifications
B: Specifications: DVD-ROM, DVD-R, DVD-Video, DVD-RW, DVD+R, DVD+RW, DVD-RAM, CD-DA, CD-ROM Supported Disc Format Mode 1, CD-ROM XA Mode 2, Multi-session Photo , CD-I, Video CD, CD Extra (CD Plus). DVD-R: 2 ~ 4X DVD-RW: DVD-RAM: DVD+R: 2.4 ~ 4X Maximum Recording Speed DVD+RW: 2.4 ~ 4X...
