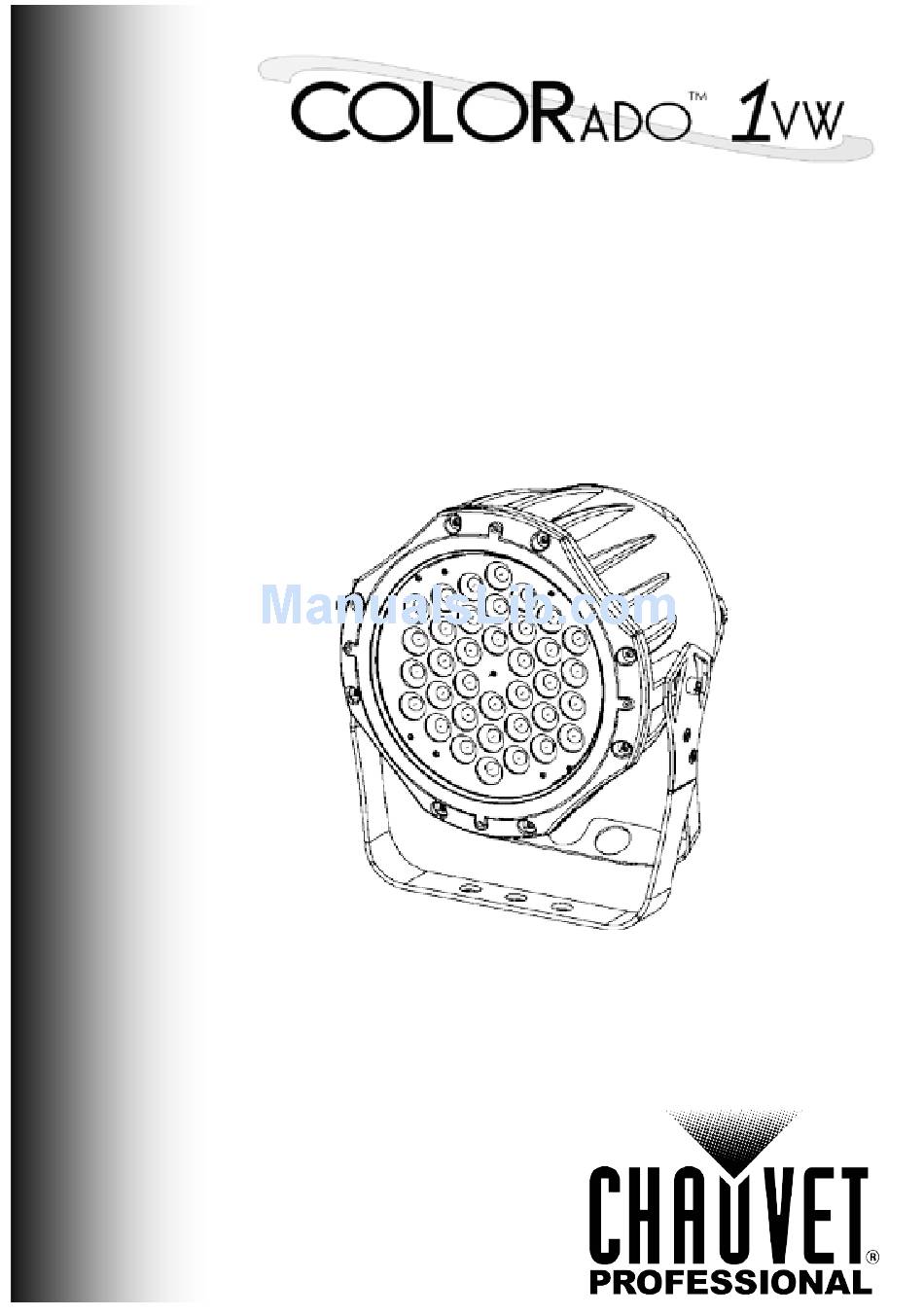

- Page 1 Quick Start Guide...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1. Before you Begin ................1 What is included ..................1 About this Guide ..................1 Unpacking ....................1 Text Conventions ..................1 Icons ......................1 Safety Notes ....................2 2. Introduction..................3 Fixture at a Glance ..................3 Features ..................... -
Page 3: Before You Begin
The COLORado™ 1 VW Quick Start Guide is a condensed version of the COLORado™ 1 VW User Manual, which users can download from the Guide CHAUVET® Web site (www.chauvetlighting.com). Unpacking Immediately upon receiving the fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Safety Notes
The COLORado™ 1 VW does not have user serviceable parts inside it. Any reference to servicing this fixture you may find within this guide or the downloaded user manual will only apply to properly CHAUVET® certified technicians. Do not open the housing or attempt any repairs unless you are one of them. -
Page 5: Introduction
Introduction 2. Introduction Fixture at Use on Dimmer Auto Programs a Glance 100~240 VAC, 50/60 Hz Outdoor Use (IP66) Auto-range Power Supply Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle · Features 2, 3 or 6-channel DMX-512 LED wash light (with ID addressing) ·... -
Page 6: Product Dimensions
Introduction Product Dimensions Recessed Width Height Control Panel DMX Out Double bracket Power Out Yoke/ floor stand DMX In Length Power In Yoke adjustment knob COLORado 1 VW Quick Start Guide Rev. 02... -
Page 7: Setup
Setup 3. Setup AC Power This fixture has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Always connect the COLORado™ 1 VW to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. Power To determine the power requirements for the COLORado™... -
Page 8: Dmx Linking
Setup DMX Linking The COLORado™ 1 VW can work with a DMX controller when linked using a regular DMX serial connection. If you are not familiar with the DMX standard, please download the COLORado™ 1 VW User Manual and refer to the DMX Primer and DMX Connectivity sections in the Appendix chapter. -
Page 9: Mounting
You must supply your own “C” or “O” clamp and make sure that the clamp is capable of supporting the weight of this fixture. CHAUVET® recommends using at least two mounting points per fixture. Adjust the angle of the fixture by loosening the knob and tilting the fixture. -
Page 10: Operation
Operation 4. Operation Control You may access the control panel functions using the four panel buttons located directly underneath the LCD Display. Panel Button Function Description Used to find a first level menu option or to return to a <MENU> previous menu option Used to select and store the current menu or option <SET>... -
Page 11: Menu Functions
Operation 1) Go to MENU > PERS and select any DMX personality. 2) Make sure to rearrange the DMX addresses of all fixtures in the current Personality DMX universe to avoid address overlapping. Menu PTION ESCRIPTION Functions Static Color Used to create different temperatures of white by using the STAI Cool, Warm and Dimmer commands. -
Page 12: Menu Map
Operation Menu Map Main Level 2nd Level 3rd Level Instructions COOL 000~255 Combines Cool white and Warm white to generate a custom white color WARM 000~255 STAI STRb 000~255 Selects a strobing frequency (0~20 Hz) diMM 000~255 Selects a dimmer setting d(001~512) N/A Sets the DMX starting address (1~512) Sets the operating mode for the fixture: to receive... -
Page 13: Dmx Values
Operation DMX Values Channel Value Percent/Setting Function 000 ó 255 0 ó 100% Cool White 000 ó 255 0 ó 100% Warm White CW + D Channel Value Percent/Setting Function 000 ó 255 0 ó 100% Dimmer 000 ó 255 0 ó 100% Cool White 000 ó... - Page 14 Operation STUDIO 2 Channel Value Percent/Setting Function 000 ó 255 0 ó 100% Dimmer 000 ó 255 0 ó 100% Cool White 000 ó 255 0 ó 100% Warm White 000 ó 010 No Function 011 ó 040 White 1: 2,800 K 041 ó...
-
Page 15: Technical Information
Repairs Download the COLORado™ 1 VW User Manual and refer to its Technical Information chapter for a description on how to troubleshoot this fixture If you need help troubleshooting your fixture, contact CHAUVET® Technical Support. Returns Download the COLORado™ 1 VW User Manual and refer to its Technical... -
Page 16: Technical Specifications
Technical Information Technical Specifications WEIGHT & DIMENSIONS Length ......................9.6 in (245 mm) Width ....................... 9.6 in (245 mm) Height......................7.9 in (200 mm) Weight ......................9.5 lbs (4.3 kg) POWER Auto-ranging ................... 100~240 V AC, 60/50 Hz Fuse (internal) ......................2 A, 250 V Power Consumption ...............
