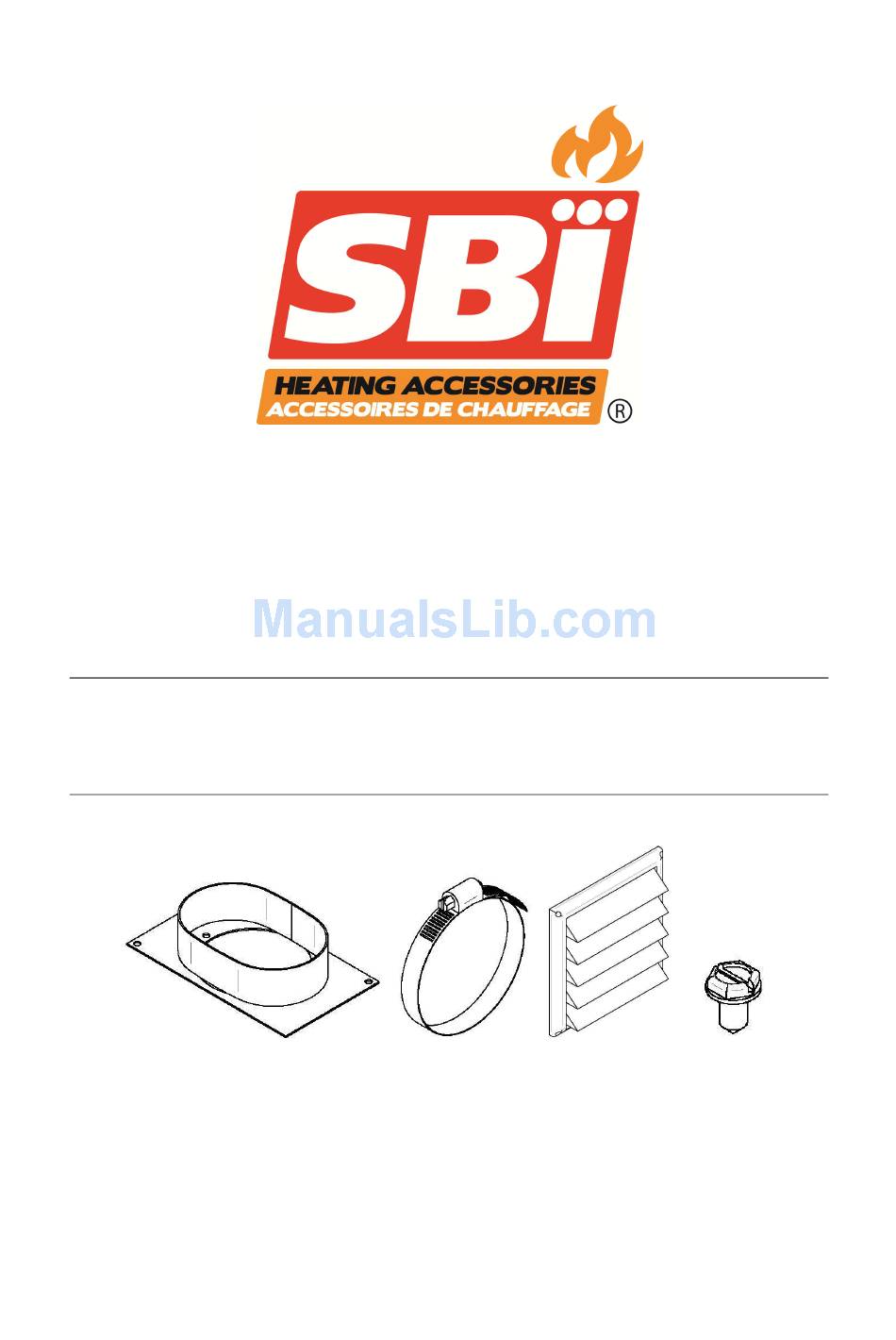

- Page 1 PEDESTAL WOOD STOVE FRESH AIR INTAKE KIT OA10500 INSTALLATION INSTRUCTIONS Stove Builder International inc. 250, rue de Copenhague Saint-Augustin-de-Desmaures Quebec, Canada G3A 2H3 45123A Printed in Canada 11-09-2015...
- Page 2 This pedestal wood stove fresh air intake kit contains the following parts: 5" (127 mm) pedestal/floor Screws. 30132 oval adapter. Outside 5" (127 mm) diameter 5" (127mm) diameter air intake finishing cap. fastening collar. 49030...
- Page 3 Other required parts (not included): 5” (127 mm) diameter Screws for outside air intake flexible insulated pipe. AC02090 finishing cap. Tools required for installation: Powered driver Flat head screwdriver Note: 5” flexible insulated pipe is not included because the length of pipe needed may vary from an installation to another.
- Page 4 Installation When combustion air is taken from outside, you can bring it directly to the pedestal or near the unit. In the second configuration we recommend that the distance between the air intake and the pedestal does not exceed 5' (1.52 m). Here are four typical methods to bring fresh air into the unit.
- Page 5 B Installation of fresh air intake kit from the floor to the base of the pedestal Note: When using configuration A or B: make sure that there are no gaps between the pedestal base and the flooring. If any, they should be sealed with extra insulation. This is especially important with models where the pedestal flanges are open at the base of the pedestal, as shown on this figure.
- Page 6 C Installation of fresh air intake kit from the wall to the inside of the pedestal D Installation of fresh air intake kit from the floor to the inside of the pedestal Periodically inspect the fresh air intake kit to make sure it is not obstructed. One evident sign of air restriction or obstruction is to see smothering effect when burning kindling with the door closed.
