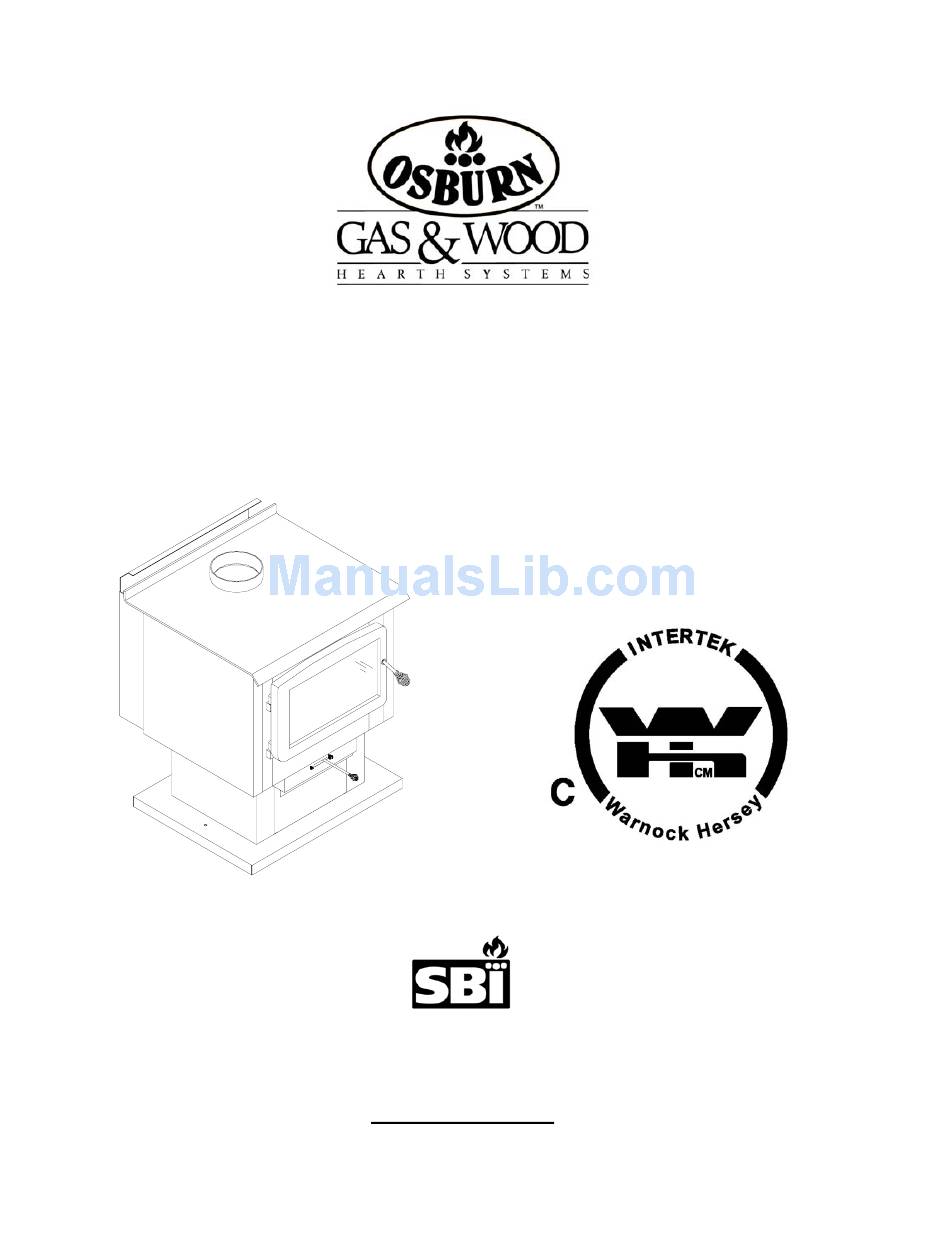

- Page 1 OWNER`S MANUAL 1000 MODEL STOVE Verified and tested following ULC S627 Standard Manufactured by : STOVE BUILDER INTERNATIONAL INC.. 1700, Léon-Harmel, Québec (Québec) G1N 4R9 Tel : (418 ) 527-3060 Fax : (418 ) 527-4311 www.osburn-mfg.com READ AND KEEP THIS MANUAL FOR REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................2 TECHNICAL SPECIFICATIONS....................3 DOOR ADJUSTMENT ......................... 4 THE BENEFITS OF INSTALLING A BLOWER ................ 4 INSTALLATION........................... 5 POSITIONING THE STOVE ......................5 FLOOR PROTECTOR........................6 RANCES FROM COMBUSTIBLES ................... 6 REDUCED CLEARANCES......................7 CHIMNEY ............................. 9 CHIMNEY CONNECTOR (STOVE PIPE) ................ -
Page 3: Introduction
INTRODUCTION SBI INC., one of the most important wood stove and fireplace manufacturers in Canada, congratulates you on your purchase and wishes to help you get maximum satisfaction from your wood stove. In the pages that follow, we will give you advice on wood heating and controlled combustion as well as technical specifications regarding installation, operation and maintenance of the model you have chosen. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL 1000 SBURN TEST STANDARDS 1. ULC S627 (CSA B366.2) RESIDENTIAL 2. UL 1482 RESIDENTIAL HEAT OUTPUT RANGE 6,000 - 41,000 BTU/HR BTU/HR OUTPUT WILL VARY WITH CORD WOOD USAGE DEPENDING ON THE TYPE AND CONDITION OF CORD WOOD USED SHIPPING WEIGHT 122.5... -
Page 5: Door Adjustment
THE BENEFITS OF INSTALLING A BLOWER A blower can be installed at the back of your OSBURN stove. This option is necessary if you wish to redistribute into a room the heat trapped at the back of your stove. By forcing hot air toward the front, the blower enables you to extend the radiation power of your stove. -
Page 6: Installation
INSTALLATION The Osburn Model 1000 is a freestanding space heater, for use in residential and mobile homes, providing installation and usage is according to the information given in this manual. SAFETY NOTICE • I F THIS STOVE IS NOT PROPERLY INSTALLED... -
Page 7: Floor Protector
FLOOR PROTECTOR Your wood stove should be placed on a non-combustible surface. The floor protector should be under the stove, eighteen inches beyond the front and eight inches beyond each side of the fuel loading and ash removal opening. If there is a horizontal section of chimney connector, the floor protector should go under it and two inches beyond each side. -
Page 8: Reduced Clearances
In Australia , the corner clearance is 152 mm (6") when installed with the Benja Mk 2 flue system and fitted with a 889 mm (35") long polished stainless steel flue shield. FLUE SYSTEM CONFIGURATION 889 mm Long Polished S/S or AL Flue Shield 4"... - Page 9 You may decrease the clearances by installing heat radiation shields between the walls or the ceiling and the stove. These heat radiation shields must be installed permanently, and can include sheet metal, a rigid non-combustible sheet or a masonry wall. Clearances of not less than 1"...
-
Page 10: Chimney
CHIMNEY Your wood stove may be hooked up with a factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or ULC S629 standards; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer's specifications. -
Page 11: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draught. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021"... -
Page 12: Typical Installations
TYPICAL INSTALLATIONS FACTORY BUILT CHIMNEY: RAIN CAP ROOF FLASHING 18" CLEARANCE RADIATION SHIELD WALL RADIATION SHIELD WALL SUPPORT CEILING SUPPORT Vertical installation Wall installation MASONRY CHIMNEY: C la y lin e r T h im b le C le a n o u t d o o r... - Page 13 FACTORY BUILT THIMBLE: BRICK THIMBLE:...
-
Page 14: Outside Combustion Air
OUTSIDE COMBUSTION AIR Your OSBURN stove is approved to be installed with an outside air intake which is necessary for a mobile home. This type of installation is also required in air tight houses and houses with negative pressure problems. You can purchase this option through your OSBURN dealer. -
Page 15: Testing Your Wood
Energy yield Wood species (millions of BTU/cord) Sugar Maple Beech High energy yield Yellow birch Larch (Tamarack) Red Maple Douglas red fir Medium energy yield Silver birch Alder Poplar Hemlock Spruce Pine Low energy yield Bass Data provided by Energy, Mines and Resources - Canada IT IS EXTREMELY IMPORTANT THAT YOU USE DRY WOOD ONLY IN YOUR WOOD STOVE. -
Page 16: The First Fires
If your wood hisses and water or vapour escapes at the ends of the piece, your wood is soaked or freshly cut. Do not use this wood in your stove. Large amounts of creosote could be deposited in your chimney, creating potential conditions for a chimney fire. THE FIRST FIRES The fresh paint on your stove needs to be cured to preserve its quality. -
Page 17: Reloading
WARNINGS • N EVER OVERFIRE YOUR STOVE F ANY PART OF THE STOVE STARTS TO GLOW RED OVER FIRING IS HAPPENING EADJUST THE AIR INTAKE CONTROL AT A LOWER SETTING • T HE INSTALLATION OF A LOG CRADLE IS NOT RECOMMENDED IN YOUR DROLET WOOD STOVE •... -
Page 18: To Prevent Creosote Build Up
AMAGE TO THE STOVE AND EVEN HOUSE FIRE MAY RESULT MAINTENANCE Your Osburn stove has been designed to reduce the amount of creosote produced. Even so, the chimney connector pipe and chimney should be inspected at least once every two months during the heating season to determine if a creosote build-up has occurred. -
Page 19: Gold Door Cleaning
• If the glass on your stove breaks, replace only with glazing supplied from the OSBURN dealer. Replace only with 255 mm x 450 mm (l0" x l6") x 5 mm Ceramic glass. -
Page 20: Paint
PAINT Only clean your stove with a dry soft cloth that will not harm the paint finish. If the paint becomes scratched or damaged, it is possible to give your wood stove a brand new look, by repainting it with a 1200 F heat resistant paint. -
Page 21: Troubleshooting
TROUBLESHOOTING Symptom Possible Cause Corrective Action Smoke in room Down draft Upgrade chimney Chimney blocked Clean chimney Chimney damper shut Open or remove damper Baffle out of position Correctly position baffle New paint is curing Refer to instructions Wood burns Low draw Upgrade chimney poorly or is slow... -
Page 22: Limited Lifetime Warranty
1 year Gold plating (tarnishing) / Brass plating not covered Shall your unit or a components be defective, contact immediately your OSBURN dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: •...
