Powering on the CR1000
For USB Cable: plug the USB end of the Affinity® cable into a USB port on the host device. After
several seconds, the reader will beep twice and the LED will turn off to indicate the CR1000 is
ready for use.
For RS232 Cable: plug the power supply into the AC outlet, plug the power supply cord into
the barrel jack of the cable, and connect the RS232 connector to the appropriate serial port on
the host device. After several seconds, the reader will beep twice, the reader will vibrate and
the LED will turn off to indicate the CR1000 is ready for use.

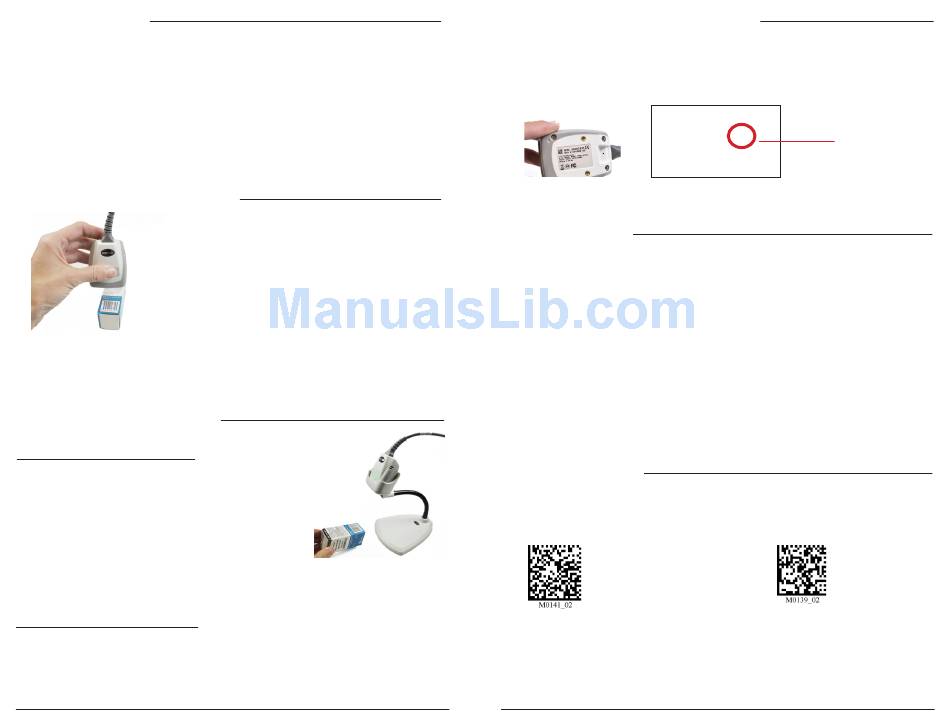

Using the CR1000 Out of a Universal Stand
Press and hold the CR1000 trigger button, the two blue bars
emitting from the reader are used for targeting. Center the
blue bars in the middle of a bar code.
The optimal reading distance from reader to bar code is
approximately 4.0" (10 cm).
Once the reader is at the optimal distance, the CR1000 will read the bar code (when the
button is pressed). The CR1000 will beep and flash a green LED to indicate a 'good read' has
occurred.
Using the CR1000 in a Universal Stand
Hardware Revisions 4+ of the CR1000s have a stand detection
feature. By default, when the CR1000 is placed in the stand, the
reader will automatically enter into motion detection mode.
When in this mode, simply place a bar code in the scan field to
activate the reader. The CR1000 will beep and flash a green LED
to indicate a 'good read' has occurred.
When the CR1000 is removed from the stand, the reader switches to manual mode and the
button must be pressed to read a bar code.
Hardware Revisions 1-3 of the CR1000s do not have an automatic stand detection feature to
enable motion detection reading when the CR1000 is in a stand. To configure these hardware
revisions for motion detection scanning, please refer to the CR1000 Configuration Guide,
located at www.codecorp.com and scan the appropriate code.
2
www.codecorp.com
Determining the Hardware Revision of a CR1000
Locate the Serial Label on the reader to identify the hardware revision. CR1000 readers with
a MFG # of _04 (or higher) have the stand detection mode.
Serial #: 20000XXXX
MFG #: CR1011_04
Designed in USA.
Made in Malaysia.
CR1000 Default Settings
The CR1000, out of the box, will read the following bar codes:
Data Matrix Rectangle
Aztec
Code 93
All GS1 DataBar
Codabar
Code 128
Interleaved 2 of 5
Data Matrix
Code 39
To configure a CR1000 to read bar codes not listed, please download the CR1000
Configuration Guide from www.codecorp.com and scan the appropriate 'Enable' bar code
reading symbology configuration code.
Suffix Enter Configuration
The default setting on the CR1000 has Suffix Enter disabled. To enable Suffix Enter, please
scan the following configuration code:
Suffix Enter - USB
For more configuration options, download the CR1000 Configuration Guide from
www.codecorp.com.
www.codecorp.com
_04 indicates
revision 4 hardware
PDF417
QR Code
UPC/EAN/JAN
Carriage Return, Line Feed - RS232
3
