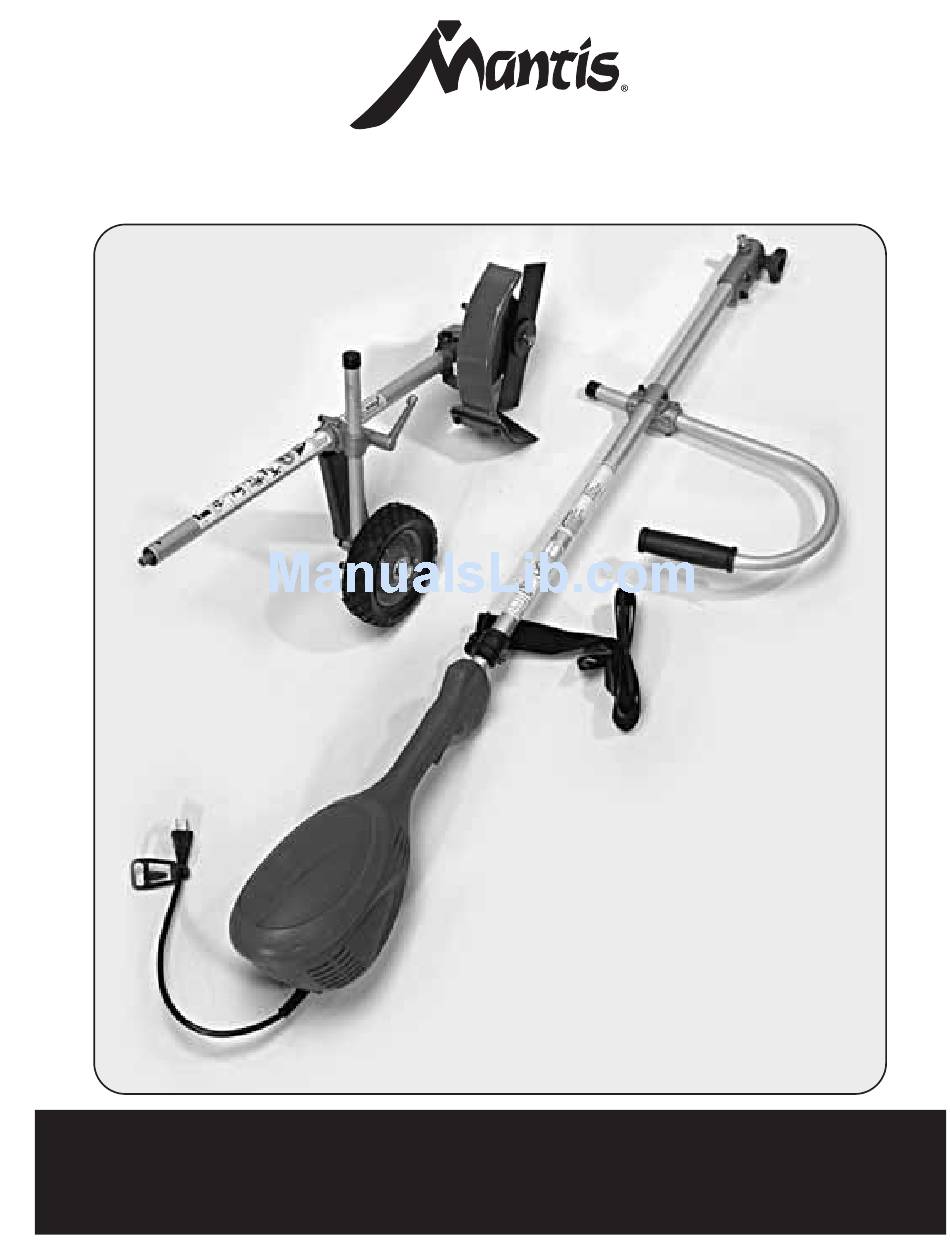

  • Page 1 Edger “E” System Owners Manual and Safety Instructions © 2006 Mantis, Div. of Schiller-Pfeiffer Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    MODEL SHAFT LENGTH 330103 24.5” C. Contents of the package 1. Edge Trimmer Attachment Assembly 2. Handle with handle bracket 3. Wheel assembly with bracket 4. Blade shield with debris flapper 5. Blade D. Service Information Contact If you have questions about any topic in this Manual, or for the name of your local dealer, call 1-800-366-6268 toll free, Monday - Friday, 8:00 a.m.

  • Page 3: Safety And Warnings

    Safety and Warnings A. Safety Decals Please pay particular attention to the warning and information decals found on various parts of this Edger Attachment unit. They are an important part of the safety system. These decals must be replaced in time due to abrasion, etc. It is your responsibility to replace the decals when they become hard to read.

  • Page 4: General Safety Rules

    General Safety Rules 1. Never edge while people, especially children or pets are nearby. 2. Before using, always visually inspect to see that the blade, blade bolts and cutter assembly are not worn or damaged. 3. Do not start the motor when a bystander is standing in front of the blade.

  • Page 5: Important Note

    32. Don’t attempt to repair any part of the extended reach “E” system. Have repairs made by a qualified repairman. See that only original “Mantis” parts are used. 33. Maintain a firm footing and good balance, do not overreach while trimming. Before you start to trim, check the work area for obstacles that might cause you to lose your footing, balance or control of the machine.
  • Page 6 CAN RESULT IN SERIOUS INJURY. MAKE SURE TO FOLLOW ALL INSTRUCTIONS CAREFULLY. IF YOU HAVE ANY QUESTIONS, CONTACT MANTIS CUSTOMER SERVICE. 34. Always disconnect power cord from power source: a. Before cleaning blockages. b. Before checking, cleaning or working on the cutting portion of the unit.

  • Page 7: Assembly Instructions

    Tools: " wrench, pin supplied with the unit or screwdriver 1. Remove the following parts from the Edge Trimmer Assembly: blade mounting bolt #1 by rotating it clockwise, clamping plate #2, gear case cover #3, holding screws #4, and cover #5. (Pictures 1 and 2) 2.
  • Page 8 Attaching the Edger to the Power Head assembly. No tools are required to attach the Edge Trimmer to the power head assembly. 1. Pull the spring pin up on the adapter of the power head shaft assembly. (Picture 14) 2. Carefully fit edger drive shaft into adapter, making sure that male spline of the inner drive shaft engages into the female spline socket of the power head shaft.
  • Page 9 Replacement Blade Installation Tools: " wrench, pin or screwdriver 1. Lock the gear shaft by inserting the pin or screwdriver through the aligned keyholes in the gear case cover and the gear case to prevent rotation (Picture 19). 2. Hold the pin or screwdriver in place and remove bolt by turning it clockwise (Picture 20), then remove clamping plate (Picture 21), and worn blade (Picture 22).

  • Page 10: Trimming Techniques

    Trimming Techniques 1. With both hands on the handles, push lockout trigger button with your thumb first, and then squeeze trigger. Start edging when blade rotates at full RPM, by lowering the blade gently into the ground. Lockout Trigger Button 2.

  • Page 11: Service Maintenance Guide

    Service Maintenance Guide Area Spline male/female connection of the inner drive shaft Lubricate Gear case Grease Nipple Screws/Nuts/Bolts Blade Area Maintenance Cutting Parts Replace if something is wrong Screws, nuts Tighten, replace bolts Blades Oiling IMPORTANT: Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance.
  • Page 12 Edger “E” System Exploded View 41 40...
  • Page 13 Edger “E” System Parts List KEY # DESCRIPTION GEAR CASE ASSEMBLY GEAR CASE O-RING BEARING 6201Z SEAL RING RETAINING SHAFT GEAR PINION BEARING 609 BEARING 609Z RING RETAINING RING RETAINING MOUNTING BOLT LOCK WASHER FLAT WASHER BOLT M5X12 BOLT M6X35 COVER BEARING BOLT M5X14...
  • Page 14 This warranty covers all portions of the Mantis Electric Edger Attachment. MANTIS will repair or replace, at its option, any part or parts of the product proven to be defective in material or workmanship under normal usage during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
