Table Of Contents; Introduction; Log Splitter Specification - Mantis Swift Split Owner's Manual And Safety Instructions

A. Introduction . . . . . . . . . . . . . . . . . . . . . . . .1
B. Log Splitter Specification . . . . . . . . . . . . .1
C. Unpacking and Assembly Instructions . .2
D. Service Information . . . . . . . . . . . . . . . . .5
E. Special Safety Information . . . . . . . . . . . .5
1. Safety Decals . . . . . . . . . . . . . . . . . . . . . . . .5
2. Safety Warnings . . . . . . . . . . . . . . . . . . . . . .7
3. Important extension cord information . . . . .8
4. Always disconnect power cord from
power source . . . . . . . . . . . . . . . . . . . . . . . . .8
5. Hydraulic Safety . . . . . . . . . . . . . . . . . . . . . .8
F. Before You Start Splitting . . . . . . . . . . . .9
A. Introduction
The SwiftSplit log splitter is designed for residential (non-
commercial) use and makes your job less physically demanding,
more efficient and safer. With a log splitter, the log is split when
pressed against a fixed splitting wedge by a pressure plate.

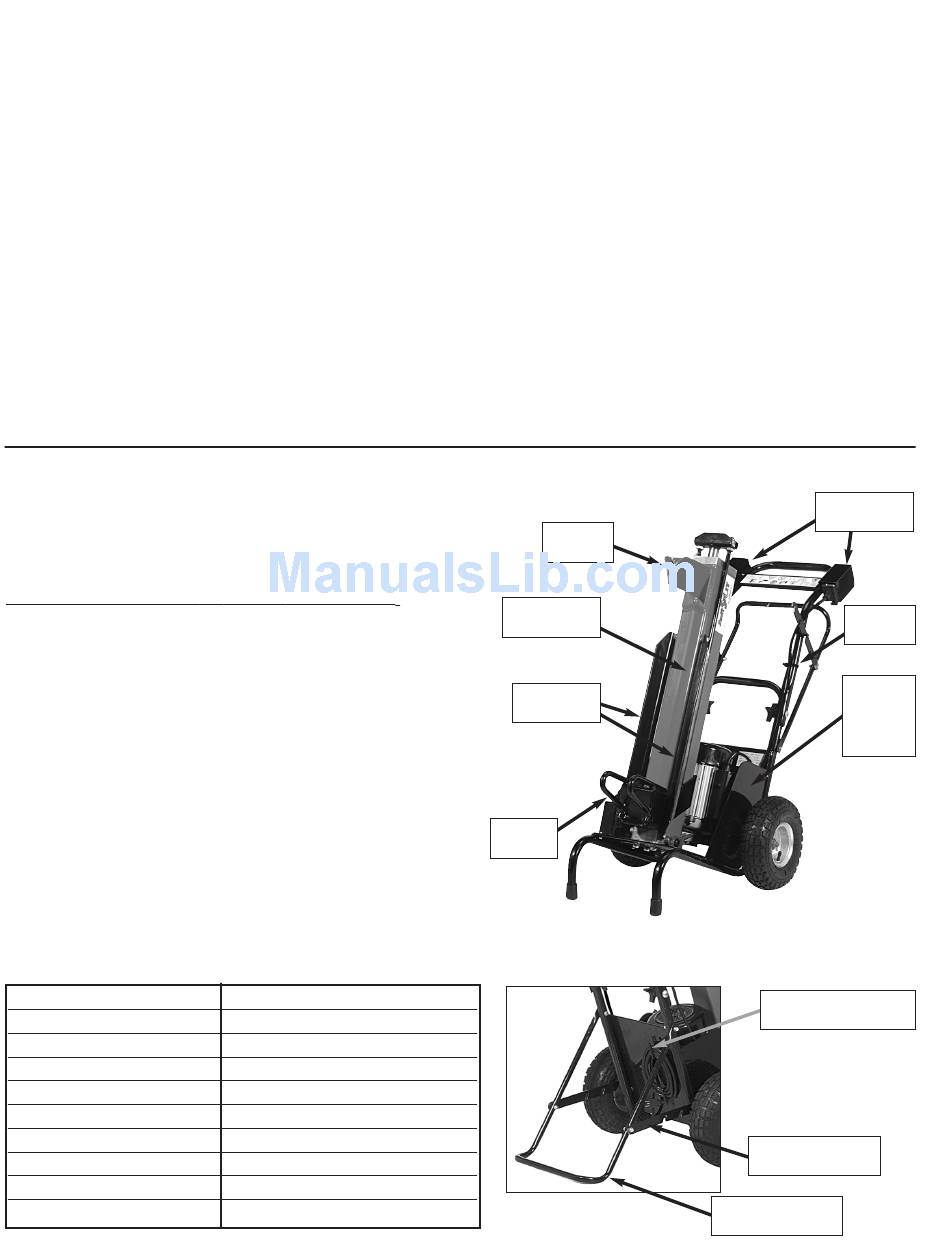

Major Components, Controls, and Features Overview:
An electric motor assembly provides the power for the system.
The motor is connected to a hydraulic oil pump that creates a flow
of high-pressure oil which runs to a solenoid valve. A switch set and
the solenoid valve let the operator actuate the hydraulic cylinder to
split a log. An internal reservoir holds the hydraulic oil that feeds
the pump. The hydraulic assembly is attached to the wheel frame
assembly, making it easy to move the log splitter around with no
lifting. The frame is equipped with folding handles for storage,
pivoting support for stability and cord storage hooks for
convenience. This log splitter is designed with two hand
operating controls (two normally open switches) for safety. The
electrical motor is protected by a 15 amp circuit breaker. The
pressure relief valve protects the hydraulic assembly. When the log
is jammed, relief valve will prevent pressure from going over its
maximum allowable level.
B. Log Splitter Specification for Model #5005
Maximum Output Force
Total Stroke (in)- Ram Travel
Total Weight
L x W x H
Voltage
Motor
Motor RPM Max
Maximum Log Length
Recomd. Maximum Log Diameter
Wheel Size
1

Table of Contents

10,000 lbs (5 tons)
15"
135 lbs (61 Kg)
40" L x 20" W x 38" H
120V
1.8 kW
3380 RPM
20" (520mm)
12" Dia.
10" Dia.
G. Operation . . . . . . . . . . . . . . . . . . . . . . . . .11
H. Removal of logs jammed on the wedge . . .12
I. How to change the hydraulic oil . . . . . .13
J. Sharpening the wedge . . . . . . . . . . . . . . .14
K. Transport . . . . . . . . . . . . . . . . . . . . . . . . .15
L. Maintenance . . . . . . . . . . . . . . . . . . . . . .15
M. Troubleshooting . . . . . . . . . . . . . . . . . . . .17
N. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . .17
O. Exploded View and Parts List . . . . . . . .18
P. Declaration of Conformity . . . . . . . . . . .20
Q. Mantis Warranty Policy . . . . . . . . . . . . .21
Wedge
Vertical Beam
Log Guides
Pressure
Plate
Two Switches
Folding
Handle
Wheel
Frame
Assembly
Cord Storage Hooks
Connecting Link
Stabilizing Bar /
Pivoting Support
