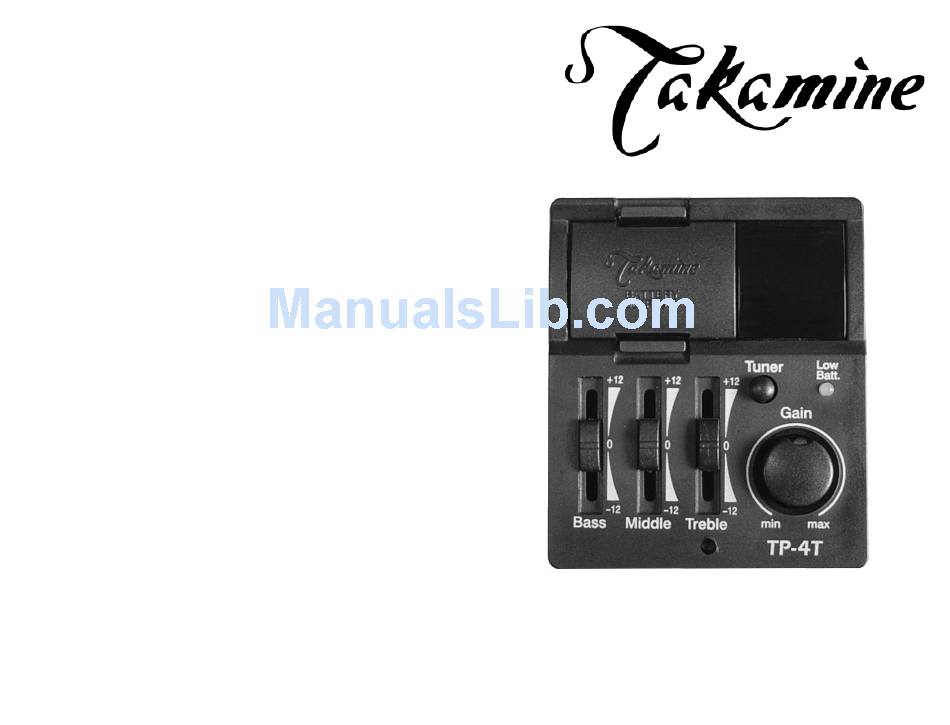

Technical Specifications TP-4T
Power Supply: 9 Volt
Output:
450mV
EQ Control:
BASS (60Hz):
MIDDLE (600Hz):
TREBLE (10KHz):
Low Battery: 6.7 Volt
Current:
4mA (tuner 13mA)
Auto chromatic Tuner
Tuning Range:
Accuracy:
Tuner auto off time: 2 minutes
Tuner switch function:
Single Press of tuner switch: TUNER ON
Second Press of tuner switch: CALIBRATE TO PITCH
Press and Hold Switch:
± 9 dB
± 10 dB
± 12 dB
C1(32.703Hz)~B7(3951.07Hz)
±1 Cent
TUNER OFF
Owner's Guide
TP-4T
Preamp
Advertisement
Related Manuals for Takamine TP-4T
Summary of Contents for Takamine TP-4T
- Page 1 Technical Specifications TP-4T TP-4T Preamp Power Supply: 9 Volt Output: 450mV EQ Control: BASS (60Hz): ± 9 dB MIDDLE (600Hz): ± 10 dB TREBLE (10KHz): ± 12 dB Low Battery: 6.7 Volt Current: 4mA (tuner 13mA) Auto chromatic Tuner Tuning Range: C1(32.703Hz)~B7(3951.07Hz) Accuracy: ±1 Cent Tuner auto off time: 2 minutes Tuner switch function:...
-

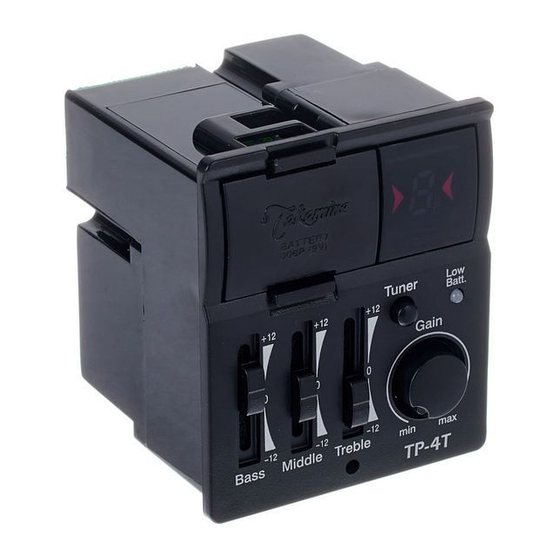

Page 2: Product View & Features
Get the Most from Your Guitar Battery Tray Releases: Pinching the tabs of the battery cover toward each The Takamine TP-4T acoustic guitar preamp is designed specifically for your Takamine otherto remove. This provides access to the battery compartment. When in- guitar to provide the flexibility and control you need in almost any performance or re- serting new batteries align the battery’s polarity with the markings inside the cording environment. The no-nonsense approach to functionality results in an amazingly battery compartment. transparent, responsive, and easy-to-use preamp that will let you “dial in” your sound in moments. Tuner: This button controls the built-in tuner’s on/off function. Simply press the button once to activate the tuner (even if the guitar is not plugged in) and The Anatomy of the TP-4T the tuner display will light. When you play a string the tuner will display the The Takamine TP-4T preamp is designed to be easy to use, yet flexible enough any ap- note name of the pitch you’re playing. Then, simply adjust the pitch of your plication. Please refer to the figure below which will provide you with an easy reference strings in the direction of the flashing up or down arrow to the right of the note for the function and use of each control and feature. name. As you approach the correct pitch, the flashing speed slows until you are in tune and both the arrows illuminate to form a diamond. When the tuner is active, pressing the tune button a second time enables you to tune to a arbitrary reference pitch. For example, if you are attempting to play with some other out-of tune instrument, tune one string of your guitar to that instrument while the tuner is on. Once tuned, press the Calibrate button and the tuner will adjust its reference frequency allowing you to tune the rest of your strings accurately. When the tuner is turned off, it will revert to the standard A=440Hz setting. To save battery power, the tuner will automatically turn off after about two minutes of operation and may be reactivated by pushing the tuner button again. If you...
