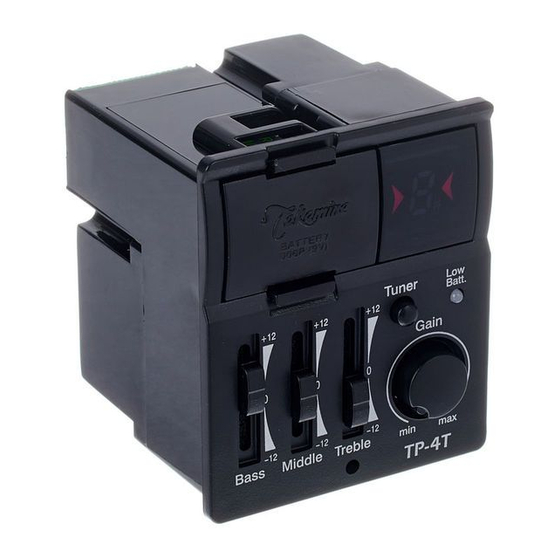

TP-4T/TP-4TD
Preamp
Technical Specifications TP-4T / TP-4TD
Power Supply : 9 Volt
Pick-up input : Single (TP-4T)
Dual (TP-4TD)
Output : 450 mV
EQ Control :
BASS (60Hz) : ± 9dB
MIDDLE(600Hz) : ± 10dB
TREBLE(10KHz) : ± 12 dB
Low Battery : 6.7 Volt
Current : 5mA (tuner on 18mA)
Auto chromatic Tuner
Tuning Range : C1(32.703Hz)~B7(3951.07Hz)
Accurary : ±1 Cent
Tuner auto off time : 3 minutes
Tuner switch function
Single Press of tuner switch : TUNER ON / OFF
Owner's Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Takamine TP-4T
Summary of Contents for Takamine TP-4T
- Page 1 TP-4T/TP-4TD Preamp Technical Specifications TP-4T / TP-4TD Power Supply : 9 Volt Pick-up input : Single (TP-4T) Dual (TP-4TD) Output : 450 mV EQ Control : BASS (60Hz) : ± 9dB MIDDLE(600Hz) : ± 10dB TREBLE(10KHz) : ± 12 dB Low Battery : 6.7 Volt...
- Page 2 Tuner: This button controls the built-in tuner’s on/off function. The Takamine TP-4T preamp is designed to be easy to use, yet flexible enough any application. Simply press the button once to activate the tuner (even if the guitar is not plugged in)
