- Page 1 I-9102 Intelligent Photoelectric Smoke Detector Installation and Operation Manual (Issue 2.01, July 2005)
- Page 2 I-9102 Intelligent Photoelectric Smoke Detector Installation and Operation Manual The Intelligent Solution CONTENTS General ......................... 1 Features ........................ 1 Technical Specifications ..................1 Structure and Operation Principle ................. 2 Mounting and Wiring ..................... 2 Operation ......................3 VII Troubleshooting..................... 3 VIII Maintenance......................

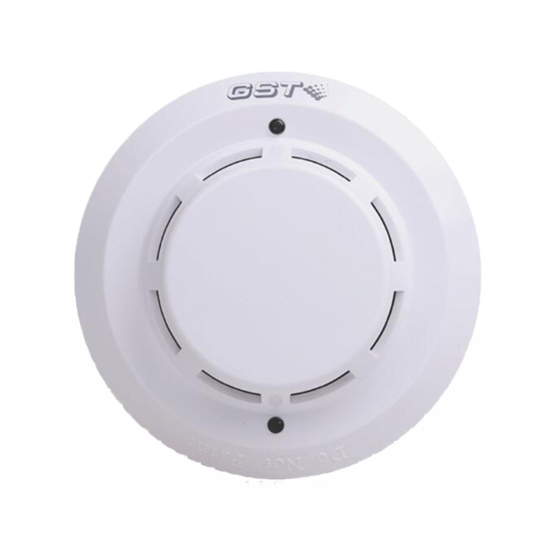

- Page 3 Installation and Operation Manual The Intelligent Solution General I-9102 Intelligent Photoelectric Smoke Detector (hereinafter called the detector) is designed on the principle of scattering of infrared beam. With novelty structure and attractive appearance, the detector has stable and reliable performance and high ability of damp-proof, applicable to hotels, restaurants, office buildings, teaching buildings, banks, warehouses, libraries, computer rooms and switch rooms, etc.
-
Page 4: Mounting And Wiring
I-9102 Intelligent Photoelectric Smoke Detector Installation and Operation Manual The Intelligent Solution IV Structure and Operation Principle 1. Appearance of the detector is shown in Fig. 1. φ100 Fig. 1 2. Operation Principle The detector detects fire by scattering of infrared beam. In smokeless condition, it only receives very weak infrared light. - Page 5 I-9102 Intelligent Photoelectric Smoke Detector Installation and Operation Manual The Intelligent Solution Mounting Hole Fig. 3 Fig. 4 2. Wiring Twisted pair for detector two-bus with cross section not less than 1.0mm . The cables connecting with remote LED should be different colors to distinguish the polarity.
- Page 6 I-9102 Intelligent Photoelectric Smoke Detector Installation and Operation Manual The Intelligent Solution Check whether the sensing chamber too dirty. VIII Maintenance The detector should be installed just before commission and kept well before installation, taken corresponding measures for dust-proof, damp-proof and corrosion-proof.
- Page 7 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Staunton Harold Hall, Staunton Harold Ashby-de-la Zouch, Leicestershire,...
