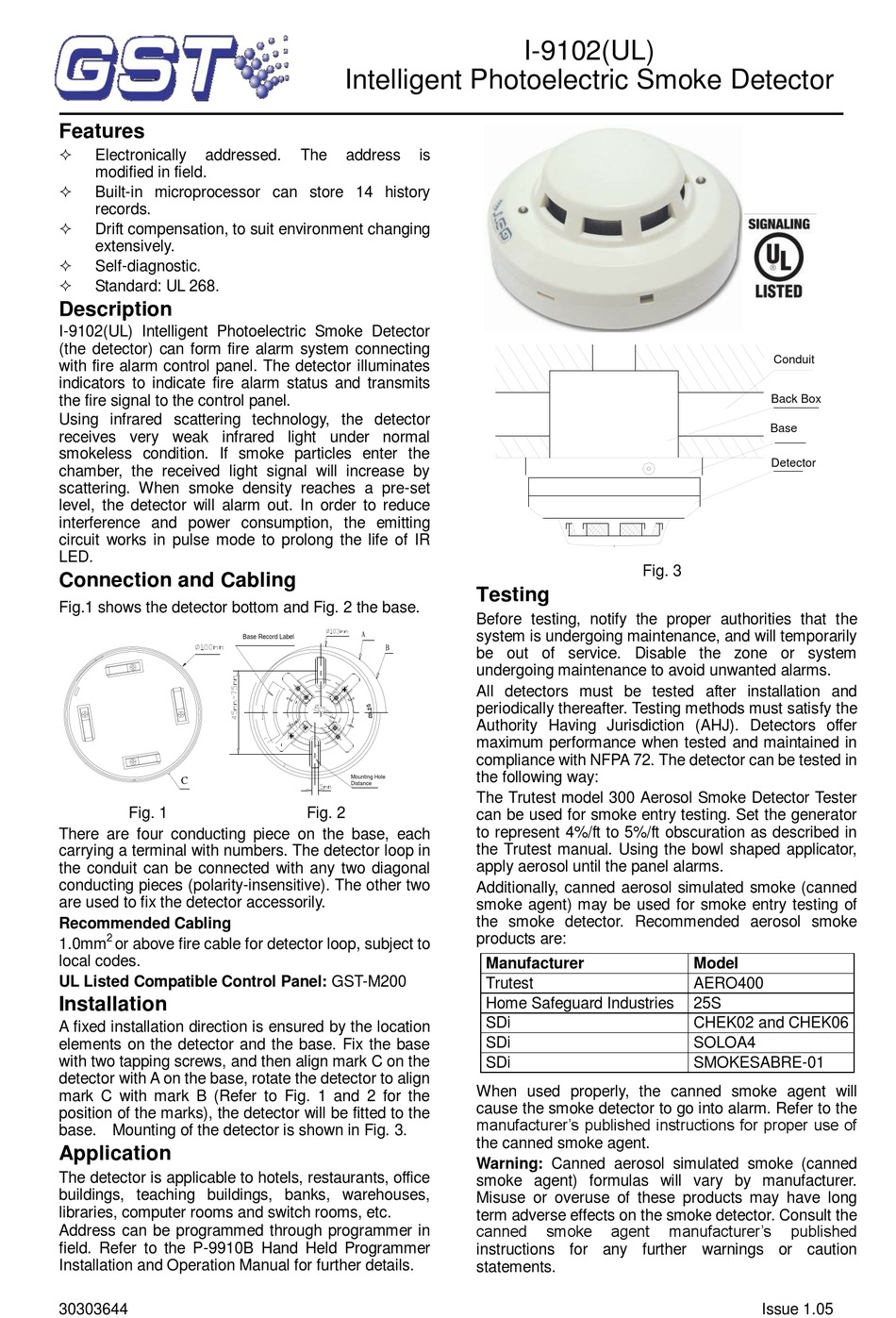

GST I-9102 Installation Instructions

Features

Electronically addressed.
modified in field.

Built-in microprocessor can store 14 history
records.

Drift compensation, to suit environment changing
extensively.

Self-diagnostic.

Standard: UL 268.
Description

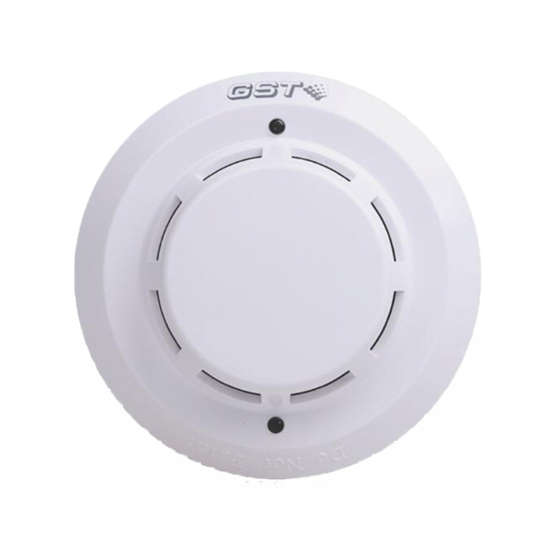

I-9102(UL) Intelligent Photoelectric Smoke Detector
(the detector) can form fire alarm system connecting
with fire alarm control panel. The detector illuminates
indicators to indicate fire alarm status and transmits
the fire signal to the control panel.
Using infrared scattering technology, the detector
螺钉
receives very weak infrared light under normal
smokeless condition. If smoke particles enter the
chamber, the received light signal will increase by
scattering. When smoke density reaches a pre-set
level, the detector will alarm out. In order to reduce
interference and power consumption, the emitting
circuit works in pulse mode to prolong the life of IR
LED.
Connection and Cabling
Fig.1 shows the detector bottom and Fig. 2 the base.
C
Fig. 1
There are four conducting piece on the base, each
carrying a terminal with numbers. The detector loop in
the conduit can be connected with any two diagonal
conducting pieces (polarity-insensitive). The other two
are used to fix the detector accessorily.
Recommended Cabling
2
1.0mm or above fire cable for detector loop, subject to
local codes.
UL Listed Compatible Control Panel: GST-M200
Installation
A fixed installation direction is ensured by the location
elements on the detector and the base. Fix the base
with two tapping screws, and then align mark C on the
detector with A on the base, rotate the detector to align
mark C with mark B (Refer to Fig. 1 and 2 for the
position of the marks), the detector will be fitted to the
base. Mounting of the detector is shown in Fig. 3.
Application
The detector is applicable to hotels, restaurants, office
buildings, teaching buildings, banks, warehouses,
libraries, computer rooms and switch rooms, etc.
Address can be programmed through programmer in
field. Refer to the P-9910B Hand Held Programmer
Installation and Operation Manual for further details.
30303644
Intelligent Photoelectric Smoke Detector
The address
上盖
防尘罩
防虫网
迷宫
探测器底部
A
Base Record Label
B
Mounting Hole
Distance
Fig. 2
I-9102(UL)
is
Testing
Before testing, notify the proper authorities that the
system is undergoing maintenance, and will temporarily
be out of service. Disable the zone or system
undergoing maintenance to avoid unwanted alarms.
All detectors must be tested after installation and
periodically thereafter. Testing methods must satisfy the
Authority Having Jurisdiction (AHJ). Detectors offer
maximum performance when tested and maintained in
compliance with NFPA 72. The detector can be tested in
the following way:
The Trutest model 300 Aerosol Smoke Detector Tester
can be used for smoke entry testing. Set the generator
to represent 4%/ft to 5%/ft obscuration as described in
the Trutest manual. Using the bowl shaped applicator,
apply aerosol until the panel alarms.
Additionally, canned aerosol simulated smoke (canned
smoke agent) may be used for smoke entry testing of
the smoke detector. Recommended aerosol smoke
products are:
Manufacturer
Trutest
Home Safeguard Industries
SDi
SDi
SDi
When used properly, the canned smoke agent will
cause the smoke detector to go into alarm. Refer to the
manufacturer's published instructions for proper use of
the canned smoke agent.
Warning: Canned aerosol simulated smoke (canned
smoke agent) formulas will vary by manufacturer.
Misuse or overuse of these products may have long
term adverse effects on the smoke detector. Consult the
canned smoke
instructions for any further warnings or caution
statements.
Conduit
Back Box
Base
Detector
Fig. 3
Model
AERO400
25S
CHEK02 and CHEK06
SOLOA4
SMOKESABRE-01
agent manufacturer's
Issue 1.05
published
