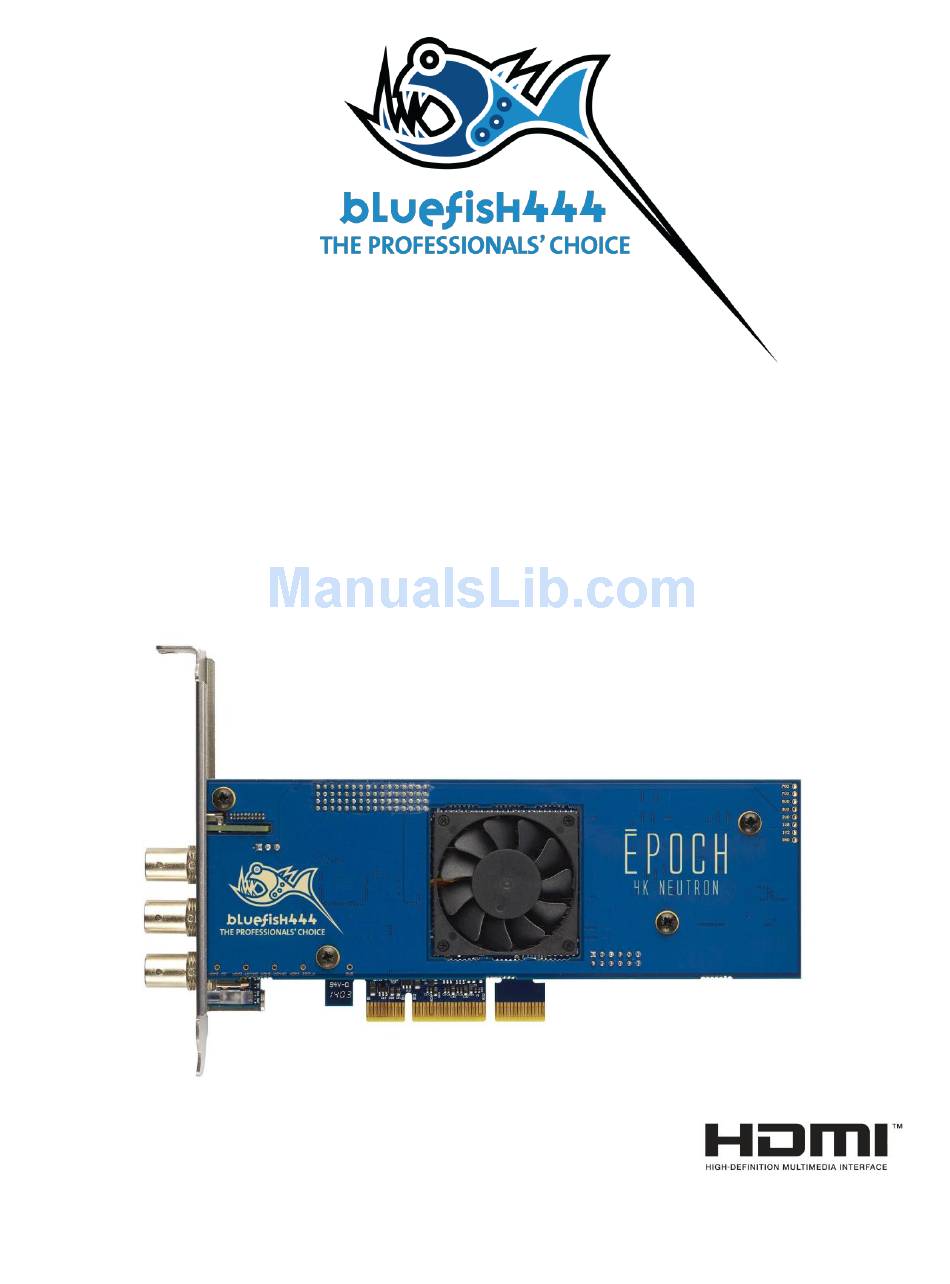

- Page 1 Epoch | Neutron Epoch | 4K Neutron End User Manual...
-
Page 2: Warranty
Bluefish444 parts or supplies, d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty... -
Page 3: Products Covered

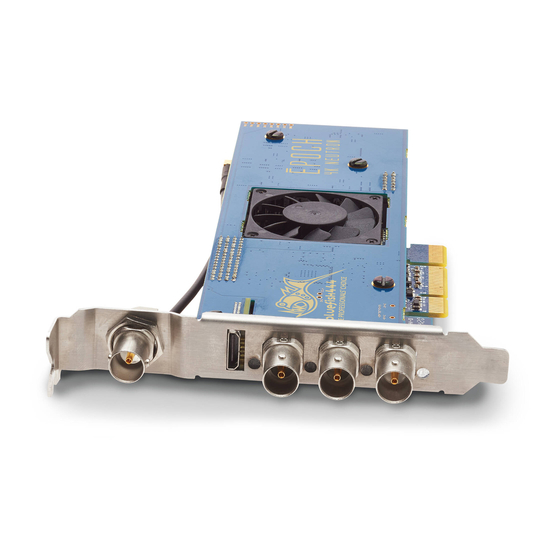

NEUTRON END USER MANUAL Products Covered Epoch | Neutron LP Epoch | Neutron Full Height with Breakout cable (See P8) Low Profile no Breakout cable Epoch | 4K Neutron LP Epoch | 4K Neutron Low Profile no Breakout cable Full Height with Breakout cable(See P8) Epoch | 4K Neutron Turbo Full Height with Breakout cable (See P8) - Page 4 NEUTRON END USER MANUAL Features Epoch | Neutron Features ● Three 1.5G SDI BNC ● 8/10/12-bit SDI I/O ● 3D Stereoscopic I/O ● Dual Link 4:4:4:4 RGBA, or 4:2:2:4 YUVA SDI I/O ● Three operating modes ○ One SDI In + One SDI Out (Second SDI out for Link B or Key channel) ○...
- Page 5 NEUTRON END USER MANUAL Epoch | 4K Neutron Features ● Three 1.5G / 3G A or B SDI BNC ● 8/10/12-bit SDI I/O ● Dual Link/ 3G 4:4:4:4 RGBA, or 4:2:2:4 YUVA SDI I/O ● 3D Stereoscopic I/O ● Three operating modes ○...
- Page 6 NEUTRON END USER MANUAL Neutron Range Feature Comparison Epoch | Epoch | Epoch | 4K Epoch | 4K Epoch | 4K Neutron Neutron LP Neutron Neutron LP Neutron Turbo HD 1.5G 3G (A+B) Dual Link 1.5G Dual Link 3G (A+B) Quad Link 1.5G Quad Link 3G (A+B) SD/HD/2K HDMI...
- Page 7 NEUTRON END USER MANUAL Neutron range supported video modes Epoch | Epoch | 4K Epoch | 4K Neutron Neutron Neutron Turbo SD/HD/2K YUV SDI Video Modes 720x486i @ 29.97fps NTSC 720x576i @ 25fps PAL 1280x720p @ 23.976, 24, 25, 29.97, 30, 50, 59.94, 60fps 1920x1080i @ 25, 29.97, 30fps 1920x1080P/PsF @ 23.976, 24, 25, 29.97, 30fps 1920x1080p/PsF @ 48, 50, 59.94, 60fps...
-
Page 8: Breakout Cable
NEUTRON END USER MANUAL Neutron range connectors Connector TWO In TWO Out 1 In 1 Out MDR20 Breakout Connector HDMI HDMI out HDMI out Input A Output A Output A Input B Output B Input A Genlock Genlock Breakout cable Neutron cards support additional IO beyond SDI through the use of the supplied breakout cable. - Page 9 NEUTRON END USER MANUAL Auxiliary Genlock and Interlock connections Neutron cards feature an additional Auxiliary Genlock connector located internally on the top edge of the card. The Auxiliary Genlock input connects to the MDR20 Breakout. Multiple Neutron cards may be locked together sharing a common clock. This is achieved by attaching the Interlock cable (Part Number CAB_ILOK) from the Interlock Output of one card to the Interlock Input of additional card(s).
-
Page 10: Installation
Please refer to the certified hardware guide section or the readme document for more information. http://www.bluefish444.com/support/compatibility/hardware/ Install 3rd party applications Supported 3rd party applications must be pre-installed before running the Bluefish444 installer. Supported applications installed after Bluefish444 software installation, will require a re-installation of the Bluefish444 installer. - Page 11 Hold the card by the top of the PCI shield and at the top of the PCB at the opposite end of the PCI shield (this will reduce any chance of damage to the bluefish444 card circuitry). Insert the card into the correctly chosen slot by firmly pressing down on the metal PCI shield and the edge of the PCB.
- Page 12 Always install 3rd party software before installing Bluefish444 software 1. With the Bluefish444 card physically installed, turn on your system. 2. You may be presented with “New Hardware Found“ dialog box. Cancel/Close this dialog 3. Run the latest Bluefish444 installer available at www.bluefish444.com...
-
Page 13: Support Resources
Software compatibility guide: Current list of released retail software that is compatible with the Bluefish444 product range. Refer to this site often as new supported products are frequently released: http://www.bluefish444.com/support/compatibility/software/ For phone support you must register your product online at:... - Page 14 NEUTRON END USER MANUAL International Support Contacts Australia - BlueFish444 (Head Office) China - UBS Consulting 17b Market Street, 601, Block 4, Wanda Square. South Melbourne 93 Jianguo Road Victoria, 3205 100022 Beijing P.R, China Australia Telephone: +86 (10) 5820 6929,...
