Summary of Contents for Parrot Jumping Sumo

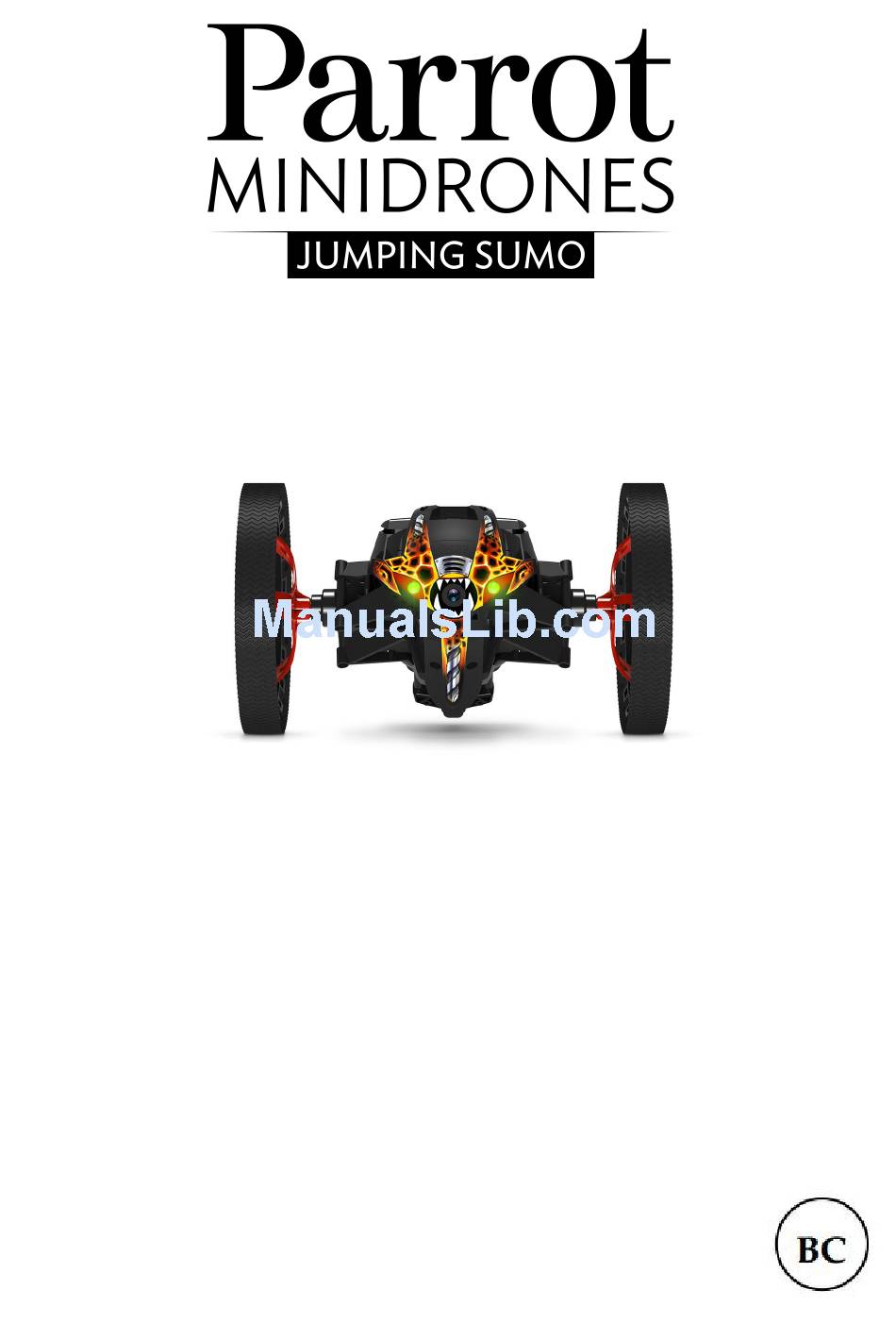

  • Page 1 User guide...

  • Page 2: Table Of Contents

    Table of Contents Before starting ...............................4 Charging the battery ...........................................4 Switching the Parrot Jumping Sumo on and off ...........................................5 Downloading the application ...........................................5 Connecting a smartphone ...........................................5 Piloting ...............................6 Piloting mode ...........................................6 Positions ...........................................6 Rolling ...........................................7 Jumping ...........................................7 Kicking ...........................................7 Pre-programmed acrobatics ...........................................8...
  • Page 3 Declaration of Conformity ...........................................18 Registered trademarks ...........................................18...

  • Page 4: Before Starting

    Charging the battery 1. Insert the battery into the battery compartment, label side downwards. 2. Connect the Parrot Jumping Sumo to your computer or to a USB charger using the USB/micro-USB cable supplied. > The light located next to the button (indicated by an arrow on the image below) lights up in red to indicate charging.

  • Page 5: Switching The Parrot Jumping Sumo On And Off

    Insert the battery into the battery compartment or press the button to switch the Parrot Jumping Sumo on. Wait until the Parrot Jumping Sumo indicates that it is ready to be used and its LED eyes turn green. Press the button to switch the Parrot Jumping Sumo off.

  • Page 6: Piloting

    Piloting mode Before you start, choose the piloting mode of the Parrot Jumping Sumo : by bringing its wheels together, you are opting for responsive piloting and will be able to weave in and out everywhere more easily by separating its wheels, you are improving its stability.

  • Page 7: Rolling

    The jump function is blocked as soon as you take hold of the Parrot Jumping Sumo . Warning: Avoid having the Parrot Jumping Sumo fall from a height greater than 1m. In order to limit the breakage risk, we recommend that you have it descend in stages, at around 80cm at a time.

  • Page 8: Pre-Programmed Acrobatics

    To do so: 1. Ensure that the pad of the Parrot Jumping Sumo is in contact with the object to be kicked.

  • Page 9: Videos

    Sumo. Videos Connect a USB or micro-USB key (not supplied) to the Parrot Jumping Sumo using, if necessary, a USB/micro-USB cable (not supplied). Ensure that the USB key connected to the Parrot Jumping Sumo has at least 100Mb of free space available.
  • Page 10 Note: If there is a USB or micro-USB key connected when you start up the Parrot Jumping Sumo,the video will automatically begin recording when you press Free ride. Piloting...

  • Page 11: Settings

    Parrot Jumping Sumo. If this value is low, the smartphone will need to be tilted significantly in order to turn the Parrot Jumping Sumo. If this value is high, a slight tilt is all that's needed.

  • Page 12: Wi-Fi

    So you should give preference to channel without curves or one which where the signal strength is low. The number of times (2 or 5) the LED eyes flash green when starting up the Parrot Jumping Sumo indicates the Wi-Fi band used (2.4GHz or 5GHz).

  • Page 13: Road Plan

    Parrot Jumping Sumo. No. Description 1 List of actions Drag your finger to the right or left to scroll through the available actions. 2 Schematic representation of the environment in which the Parrot Jumping Sumo is going to evolve Road plan...
  • Page 14 3 Actions planned on your road plan 4 Trajectory of the Parrot Jumping Sumo Press on an action and drag it into the right-hand column to add it to the road plan. The corresponding trajectory is displayed on the environment.

  • Page 15: Managing Road Plans

    Changing the position See the Positions section for further information. Performing a jump, kicking an object or loading the spring Modifying the color and luminosity of the eyes Select the eyes and define the luminosity of the selected eye. To switch the eyes off, insert an action, defining the luminosity as 0%. Performing preprogrammed acrobatics Select the acrobatics type.

  • Page 16: General Information

    Sumo may be irreversibly damaged if you allow sand or dust to penetrate it. Do not drive the Parrot Jumping Sumo on water or on a wet surface. Do not use the Parrot Jumping Sumo in wet conditions. Do not leave the Parrot Jumping Sumo in direct sunlight for long periods, this could result in irreversible damages.

  • Page 17: Modifications

    Parrot in this guide or on www.parrot.com or if the Parrot Jumping Sumo has been customised by the end-user; defects caused by repairs carried out by the end-user or an unauthorised third party, except spare parts provided by PARROT;...

  • Page 18: Correct Disposal Of This Product

    Business users should contact their supplier and the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Parrot Jumping Sumo is to be controlled via a Wifi link superior to 20 centimeters in normal conditions.
