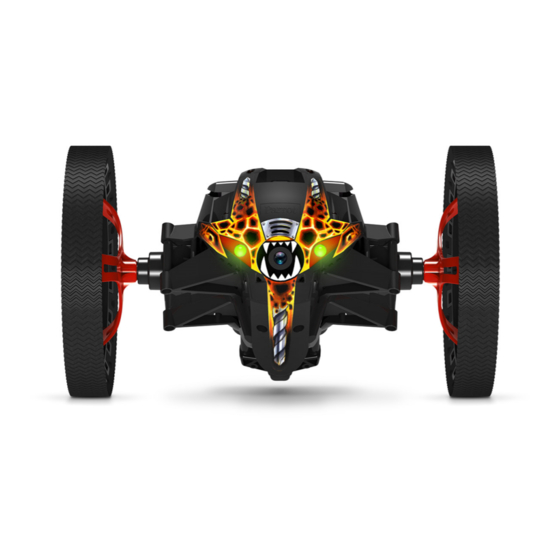

Jumping Sumo:
3D radiation pattern
Meryam ABOU EL ANOUAR, Qualification
28/05/2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jumping Sumo and is the answer not in the manual?

Questions and answers

Related Manuals for Parrot Jumping Sumo

Summary of Contents for Parrot Jumping Sumo

  • Page 1 Jumping Sumo: 3D radiation pattern Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 2 3D radiation pattern: measurement Setup • The measurement was made at Parrot radio test laboratory, with Diagray3D system • The antennas were connected to a CW signal generator: signal level @2.4GHz=5dBm; @5GHz=10dBm • Angular resolution is : 10° • Measurement uncertainty : ±1dB...
  • Page 3 3D radiation pattern: measured antennas  Jumping Sumo is integrating 2 Wifi Dual-band antennas Dual band antennas ant2 ant1 • Antennas dimensions: 12mmx10mm • Distance between antennas: 33mm • Space and radiation pattern diversity Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 4 Antenna 1: 3D radiation pattern @2440MHz Max gain @2440MHz= 1.34dBi Min gain @2440MHz= -24.8dBi Mean gain @2440MHz = -4.9dBi Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 5 Antenna 1: 3D radiation pattern @5500MHz Max gain @5500MHz = 2.67dBi Min gain @5500MHz = -12.7dBi Mean gain @5500MHz= -3.92dBi Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 6 Antenna 1: max gain VS frequency 5GHz band 2.4GHz band Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 7 Antenna 2: 3D radiation pattern @2440MHz Max gain @2440MHz = 2.72dBi Min gain @2440MHz = -17.7dBi Mean gain @2440MHz= -4.94dBi Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 8 Antenna 2: 3D radiation pattern @5500MHz Max gain @5500MHz = 3.29dBi Min gain @5500MHz = -15.9dBi Mean gain @5500MHz = -3.43dBi Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 9 Antenna 2: max gain VS frequency 2.4GHz band 5GHz band Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
  • Page 10 PARROT S.A. 174, quai de Jemmapes F-75010 Paris T: +33 1 48 03 60 60 Meryam ABOU EL ANOUAR, Qualification 28/05/2014...
