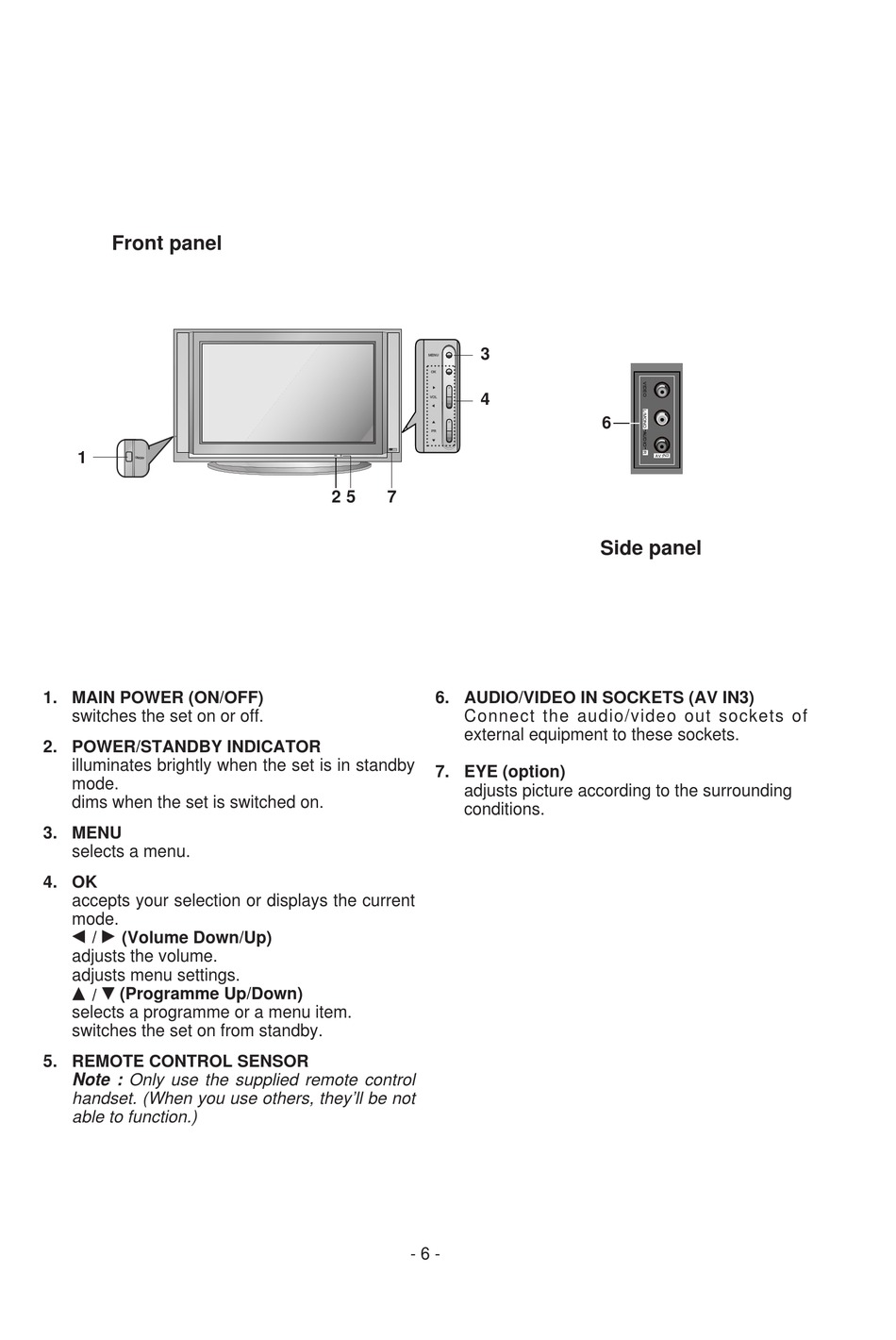

Front panel

ON/OFF
ON/OFF
1
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
F F
G G
/
(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
(Programme Up/Down)
D D
E E
/
selects a programme or a menu item.
switches the set on from standby.
5. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control
handset. (When you use others, they'll be not
able to function.)
3
4
2
5
7
6. AUDIO/VIDEO IN SOCKETS (AV IN3)
Connect the audio/video out sockets of
external equipment to these sockets.
7. EYE (option)
adjusts picture according to the surrounding
conditions.
- 6 -
6

Side panel
