Summary of Contents for thomann PA15ECO MKII

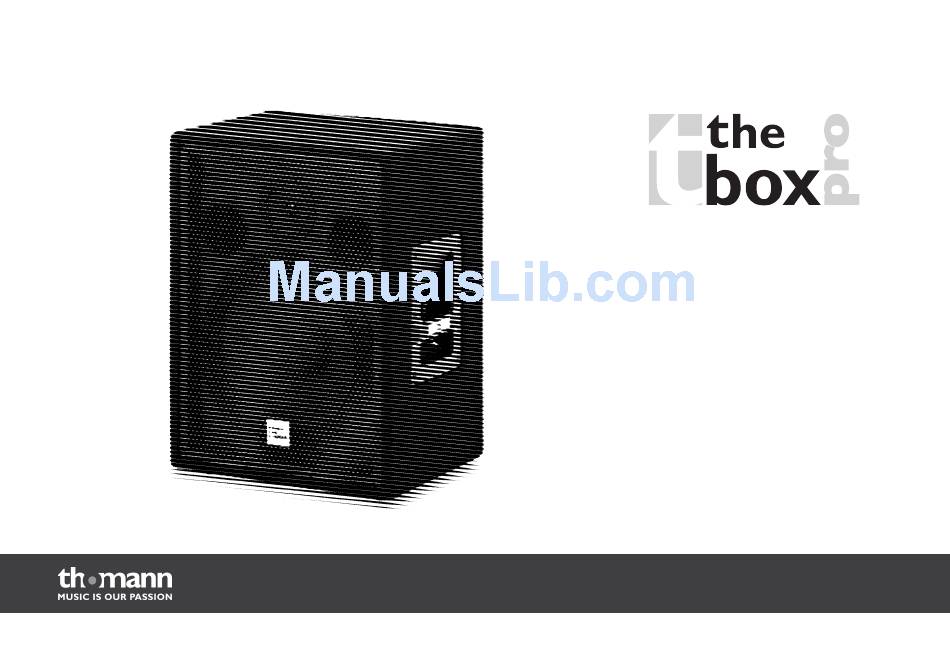

- Page 1 PA15ECO MKII passive 2 way full-range speaker user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 05.06.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................8 Installation..............................9 4.1 Tips on handling speakers......................11 4.2 Connections............................12 Technical specifications........................15 Protecting the environment......................16 PA15ECO MKII... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. PA15ECO MKII...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. PA15ECO MKII...
-
Page 8: Features
Features Features Special features of this powerful passive full-range speaker box: 1 × 15" woofer, 1 × 3" cone tweeter 2 × lockable 1/4"/NL4 combo sockets (1+/1–) Wooden cabinet with felt cover Robust protective grille Tripod mounting flange passive 2 way full-range speaker... -
Page 9: Installation
NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. PA15ECO MKII... - Page 10 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. passive 2 way full-range speaker...
-
Page 11: Tips On Handling Speakers
If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐ tortion. PA15ECO MKII... -
Page 12: Connections
Installation 4.2 Connections ö PA 15ECOMK PROFESSIONAL SPEAKER INPUT OUTPUT passive 2 way full-range speaker... - Page 13 A 1/4" / NL4 combo socket (1+/1–) serves as input. 2 OUTPUT A 1/4" / NL4 combo socket (1+/1–) serves as output for another passive speaker. NL4 mounting connectors for The drawing alongside shows the pin assignment of the lockable NL4 mounting connectors. speaker connections PA15ECO MKII...
- Page 14 Installation Phone plugs for speaker con‐ Drawing and table indicate the pin assignment of a 1/4" TS phone plug. nections Signal Ground, shielding passive 2 way full-range speaker...
-
Page 15: Technical Specifications
115 dB Maximum SPL (1 m) 70 Hz … 15 kHz Dispersion (H × V) 90° × 90° Housing Wood, felt cover Dimensions (W × H × D) 447 mm × 595 mm × 350 mm Weight 17.5 kg PA15ECO MKII... -
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes PA15ECO MKII...
- Page 18 Notes passive 2 way full-range speaker...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
