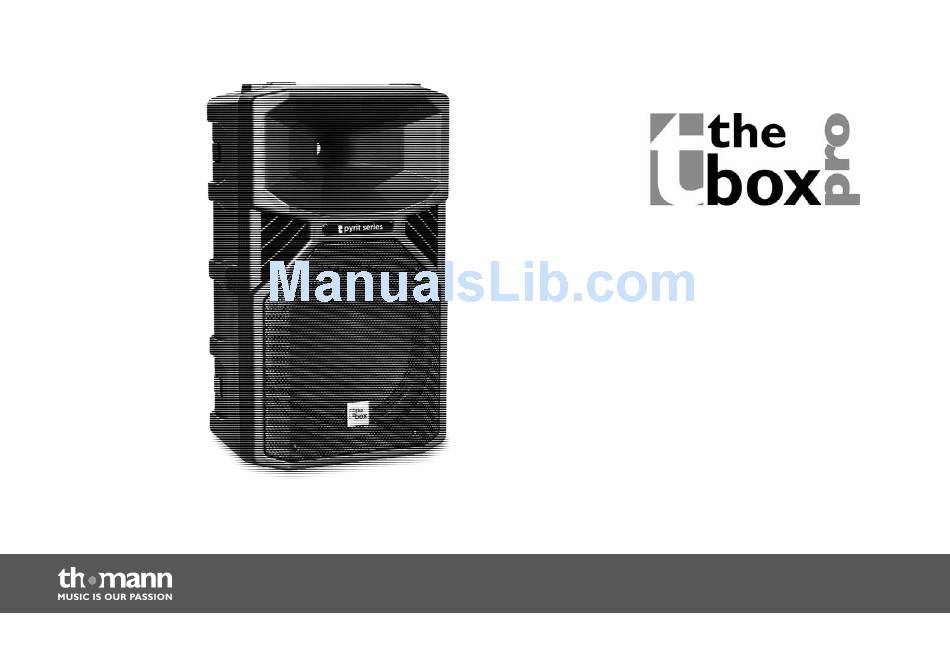

- Page 1 Pyrit 10, 12, 15 passive 2 way full-range speaker user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.11.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................13 4.2 Speaker rigging..........................14 4.3 NL4 connections..........................15 Technical specifications........................17 Protecting the environment......................19 Pyrit 10, 12, 15... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 General notes Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
- Page 6 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. passive 2 way full-range speaker...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 9 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Pyrit 10, 12, 15...
-
Page 10: Features
Features Features The device is particularly suitable for use in churches, conference rooms and multi-purpose halls. Special features of the device: Item no. 299642: 10" woofer, 1.4" tweeter Item no. 299643: 12" woofer, 1.7" tweeter Item no. 299646: 15" woofer, 1.7" tweeter 2 ×... -
Page 11: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Installation CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.
-
Page 13: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that their sound signals can reach the audience unobstructedly. Always use high grade cables to connect your equipment. Otherwise you won't reach max‐ imum sound quality. -
Page 14: Speaker Rigging
Installation 4.2 Speaker rigging For rigging the speaker box on special mounting devices, M8 threads are flush-mounted on top, bottom and sides of the box. You can insert screw eyes (double studs) into these threads. Check for secure connection of the screw eyes to the box, before rigging the box. passive 2 way full-range speaker... -
Page 15: Nl4 Connections
Installation 4.3 NL4 connections On the back of the unit are the two NL4 connectors. 1, 2 NL4 connectors wired in parallel One connector is used to connect the device to the signal source, the other is used to connect an additional speaker of the same type. - Page 16 Installation NL4 mounting connector for The drawing alongside shows the pin assignment of the lockable NL4 mounting connectors. speaker connection passive 2 way full-range speaker...
-
Page 17: Technical Specifications
Technical specifications Technical specifications Pyrit T10, item no. 299642 Pyrit T12, item no. 299643 Pyrit T15, item no. 299646 System Passive 2-way full-range Passive 2-way full-range Passive 2-way full-range speaker box speaker box speaker box Speakers 1 × 10" woofer 1 ×... - Page 18 Technical specifications Pyrit T10, item no. 299642 Pyrit T12, item no. 299643 Pyrit T15, item no. 299646 Dimensions (W × H × D) 306 mm × 516 mm × 238 mm 368 mm × 630 mm × 349 mm 460 mm × 780 mm × 396 mm Weight 13.2 kg...
-
Page 19: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Notes passive 2 way full-range speaker...
- Page 21 Notes Pyrit 10, 12, 15...
- Page 22 Notes passive 2 way full-range speaker...
- Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
