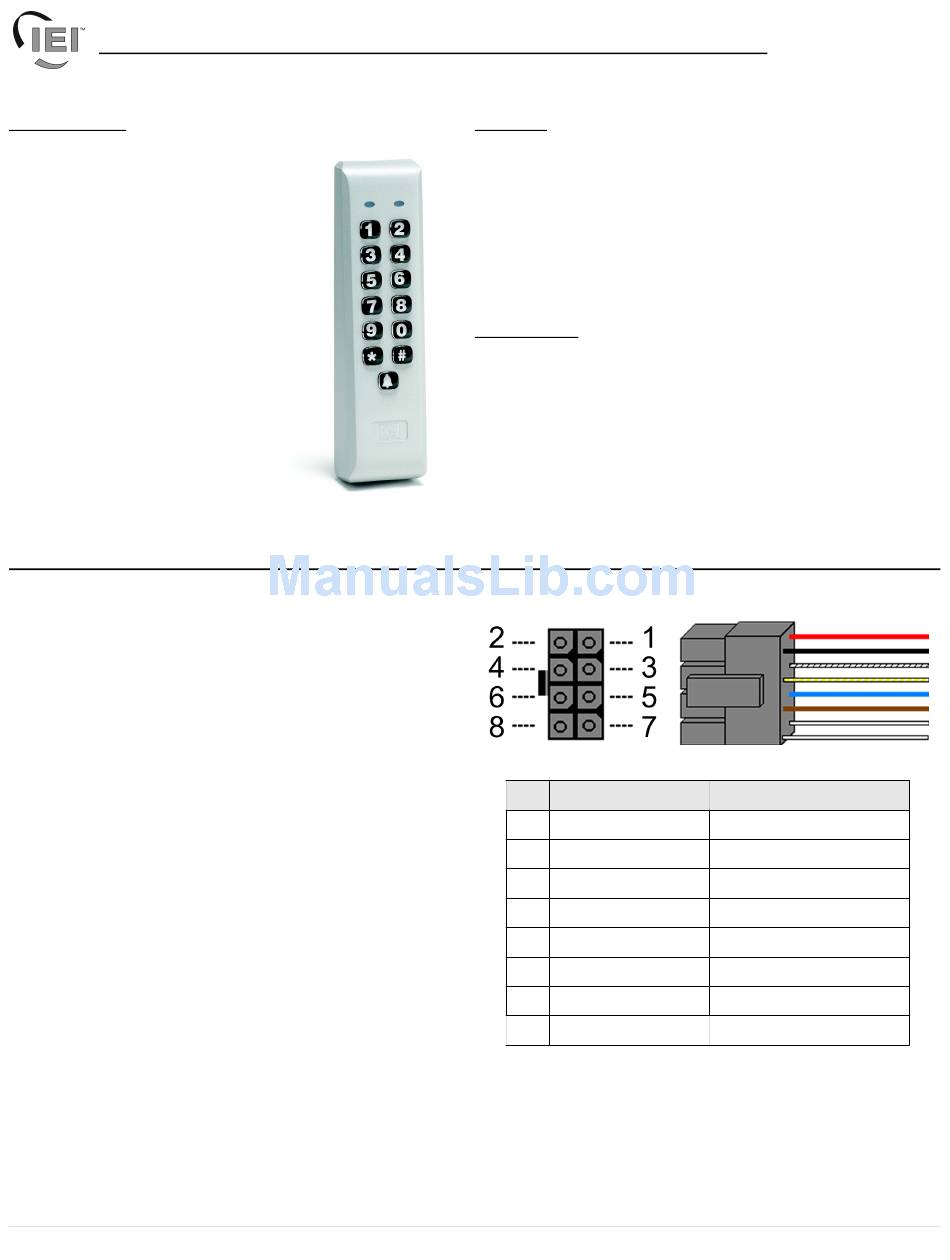

232iLM Keypad Installation and Programming Instructions
Note: This product is designed to be installed and serviced by security and lock industry professionals.
Specifications
Case Dimensions:
1
3
1
6
/
"L x 1
/
"W x 1
/
"D
2
4
8
Electrical:
Voltage: 5-12VDC (reader)
12-24VAC/DC (controller)
Current (max): 120mA
Relay Contacts:
Main Relay (controller): 2A
Aux Relays (controller): 1A
Bell Relay:
Form A; 1 Amp @ 30VDC;
500mA @ 125VAC
Environmental:
-20 º F to 130° F
Description:
The 232iLM Access Control unit consists of two pieces: an
SSWiLM keypad front end and a 232 Access Control
Module. IEI's Door-Gard Series SSWiLM keypad combines
elegant looks with a mullion mount design in a rugged,
vandal resistant case, which you can use for almost any
application. The SSWiLM has hardened backlit keys
designed to perform in medium to high traffic areas and in
rough duty environments. The electronics are also
conformal coated, which makes the keypad suitable for
indoor or outdoor applications.
Basic Operation:
To gain access through the door enter your code (1-6 digits)
followed by the * key on the keypad.
Packing List:
(1) SSWiLM Keypad
(1) IEI 232 Controller
(1) Eight-Conductor Wire Harness
(4) Three-Conductor Wire Harness
(1) Controller Hardware Pack
(1) Mullion Hardware Pack
5
(1)
/
" Allen Wrench
64
(1) Anti-Oxidant Grease Pack
(1) Installation/Programming Manual
(1) Self-Contained Access Control Programming Guide
Document # 6050800 Rev 1.1
Features
●
Vandal Resistant Case
●
Sealed for Indoor or Outdoor Applications
●
LED's for Relay Status Indication
●
Bell Output
●
Surface Mount
●
Illuminated Hardened Keys
●
Rated for Greater than One Million Key Cycles
Applications
●
Low to Medium/Heavy Traffic Areas
●
Rough Service Environments
●
Mullion Frame Mounting
●
Dimly Lit Areas
Wire Harness Configuration:
Pin Wire Color
1
Red
2
Black
3
White/Black
4
White/Yellow
5
Blue
6
Brown
7
White
8
White
Wiring Requirements:
18 AWG – 1000 Ft.
20 AWG – 500 Ft.
22 AWG – 250 Ft.
1 of 12
Signal Name
Power (+)
Power (-)
Data 0
Data 1
Not Used
Not Used
Bell Relay Contact (A)
Bell Relay Contact (B)
www.ieib.com
