QUICK START GUIDE

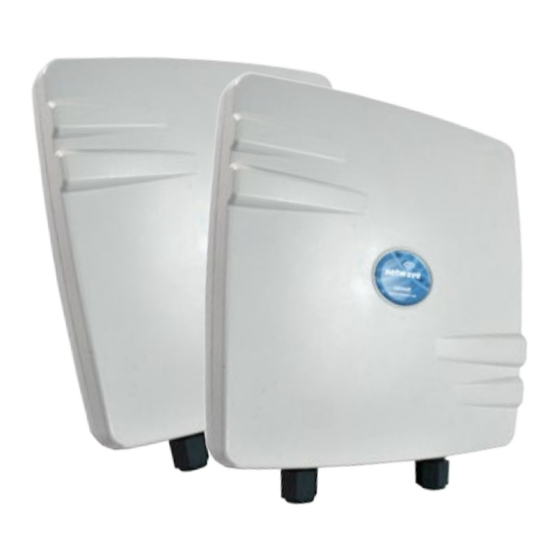

INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET KIT
Thank you for purchasing NetWave
walk you through installation.
This guide applies to the following models:
NWK1: Industrial Point to Point Kit, FCC Version (Includes NWK1_AP and NWK1_CL)
NWK2: Industrial Point to Point Kit, ETSI Version (Includes NWK2_AP and NWK2_CL)
An easy to read LED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for LED
Indicator explanations.
See Figures 3 through 5 beginning on Page 3 for mounting instructions.
from ComNet. This quick start guide is designed to
®
INS_NWK1_NWK2_QS_REV– 07/7/15 PAGE 1

Advertisement

Table of Contents
loading

Related Manuals for NetWave ComNet NWK1

Summary of Contents for NetWave ComNet NWK1

  • Page 1 QUICK START GUIDE INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET KIT Thank you for purchasing NetWave from ComNet. This quick start guide is designed to ® This manual serves the following walk you through installation. ComNet Model Numbers: NWK1 This guide applies to the following models:...

  • Page 2: Signal Strength

    QUICK START USER GUIDE NWK(1,2) FIGURE 1 – INDUSTRIAL WIRELESS ETHERNET LINK PORT 1 PORT 2 PORT 2 PORT 1 FRONT BACK IMPORTANT: Only plug PoE power to Port 1. Connecting a PoE power source to the PSE Port (#2) will cause a major device malfunction and void the warranty.
  • Page 3 QUICK START USER GUIDE NWK(1,2) FIGURE 3 – INSTALLATION INSTRUCTIONS Step 1. Unpack the mounting hardware from the box. Determine if this will be a pole or wall mount application. The included Mounting kit is designed to support poles up to 2 in (5.8 cm) in diameter. If surface or wall mounting, the optional NWBKT hardware will be required.
  • Page 4 QUICK START USER GUIDE NWK(1,2) FIGURE 4 – POLE MOUNT INSTRUCTIONS Included Hardware Vertical Mount in -45º Position Vertical Mount in +45º Position TECH SUPPORT: 1.888.678.9427 INS_NWK1_NWK2_QS_REV– 07/7/15 PAGE 4...

  • Page 5: Installation Requirements

    • Hit Save & Apply NOTE: This will be the network address for the NetWave web server. It is not necessary to set to the same subnet as the operating network but it is recommended. 8. Select the NETWORK -> WIFI tab and set: •...

  • Page 6: Reset To Factory Default

    NWK(1,2) CONFIGURING MAC LOCK FOR POINT TO POINT LINKS MAC-Filter replaces MAC-Lock on the first generation Netwave hardware. MAC-Filter is only available on devices operating as an AP. By default, it is disabled. You can locate MAC-Filter tab by going to Networking -> WIFI -> Enable.
  • Page 7 QUICK START USER GUIDE NWK(1,2) TYPICAL POINT-TO-POINT CONFIGURATION Cat5 Cable 10/100Mbps or other ComNet Gigabit NWK1_AP NWK1_CL PSE device Managed Switch Camera with 30W PoE+ POINT-TO-POINT TOPOLOGY UTILIZING DUAL PORTS PIM or other Power PSE device Ethernet Ethernet NWK1_AP NWK1_CL 10/100 Mbps IP Camera Ethernet...

  • Page 8: Agency Compliance

    QUICK START USER GUIDE NWK(1,2) AGENCY COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •...
  • Page 9 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2015 Communications Networks Corporation. All Rights Reserved. “ComNet,” the “ComNet Logo,” “NetWave,” and the “NetWave Logo” are registered trademarks of Communication Networks, LLC. INS_NWK1_NWK2_QS_REV– 07/7/15 PAGE 9...
