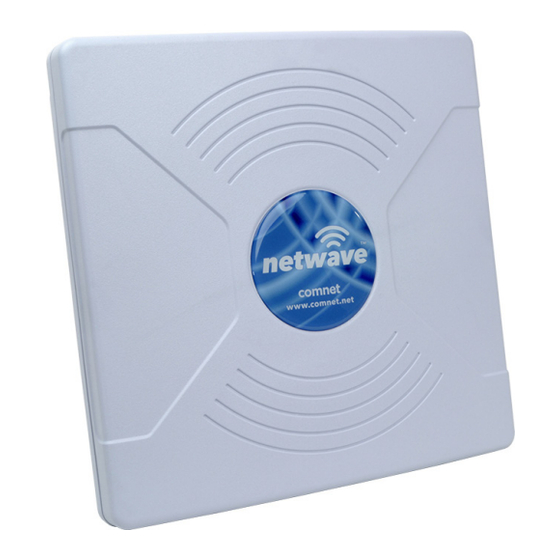

NetWave NWK1 Quick Start Manual

Industrial outdoor 802.11a/n wireless ethernet kit
Hide thumbs Also See for NWK1:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
This manual serves the following
ComNet Model Numbers:
NWK1
NWK2
NWK1 Install Demo Video
Scan or visit: bit.ly/1bMJjwW
QUICK START GUIDE
INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET KIT
Thank you for purchasing NetWave
walk you through installation.
This guide applies to the following models:
NWK1: Industrial Point to Point Kit, FCC Version (Includes NWK1_AP and NWK1_CL)
NWK2: Industrial Point to Point Kit, ETSI Version (Includes NWK2_AP and NWK2_CL)
An easy to read LED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for LED
Indicator explanations.
See Figures 3 through 5 beginning on Page 3 for mounting instructions.
from ComNet. This quick start guide is designed to
®
INS_NWK1_NWK2_QS_REV– 05/20/13 PAGE 1

Advertisement

loading

Related Manuals for NetWave NWK1

Summary of Contents for NetWave NWK1

  • Page 1 This guide applies to the following models: NWK2 NWK1: Industrial Point to Point Kit, FCC Version (Includes NWK1_AP and NWK1_CL) NWK2: Industrial Point to Point Kit, ETSI Version (Includes NWK2_AP and NWK2_CL) An easy to read LED array displays unit operational status along with received signal strength ensuring optimal installation and operation.
  • Page 2 QUICK START USER GUIDE NWK1/NWK2 FIGURE 1 – NETWAVE INDUSTRIAL WIRELESS ETHERNET LINK ® FRONT BACK FIGURE 2 – STATUS LED INDICATIONS VISUAL CUE INDICATION SOLID GREEN Power is supplied to the wireless unit POWER No power is supplied to the wireless unit...
  • Page 3 QUICK START USER GUIDE NWK1/NWK2 FIGURE 3 – INSTALLATION INSTRUCTIONS Step 1. Unpack the mounting hardware from the box. Determine if this will be a pole or wall mount application. The included Mounting kit is designed to support poles up to 3 in (7.6 cm) in diameter. If surface or wall mounting, the optional NWBKT1 hardware will be required.
  • Page 4 QUICK START USER GUIDE NWK1/NWK2 FIGURE 4 – POLE MOUNT INSTRUCTIONS Included Hardware Vertical Mount in -45º Position Vertical Mount in +45º Position FIGURE 5 – OPTIONAL POLE/WALL MOUNT HARDWARE ComNet Part NWBKT1 TECH SUPPORT: 1.888.678.9427 INS_NWK1_NWK2_QS_REV– 05/20/13 PAGE 4...

  • Page 5: Installation Requirements

    Hit Apply Settings Hit Save NOTE: This will be the network address for the NetWave web server. It is not necessary to set to the same subnet as the operating network but it is recommended. 8 Select the WIRELESS SETTINGS tab and set Country code – Only required if setting up the NWK2 (ETSI) model NOTE: It is the user’s responsibility to ensure that the correct country is chosen.

  • Page 6: Default Configurations

    TYPICAL POINT-TO-POINT CONFIGURATION NOTE: NWK1 and NWK2 point to point kits have been set up at the factory and locked to each other. No need to set Wireless Mode and may not need to set the IP address. These are designed to connect to each other once powered and properly aligned.

  • Page 7: Agency Compliance

    QUICK START USER GUIDE NWK1/NWK2 AGENCY COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •...
  • Page 8 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2014 Communications Networks Corporation. All Rights Reserved. “ComNet,” the “ComNet Logo,” “NetWave,” and the “NetWave Logo” are registered trademarks of Communication Networks, LLC. INS_NWK1_NWK2_QS_REV– 05/20/13 PAGE 8...
