Denon AVR-1912E3 Service Manual page 92

R2A15218FP
LINE IN
＋
NET/USB
ZONE2 DAC
AK4424ET
DAC
AK4424ET
Single end OUT
0dBFS=5.66Vpp
=2Vrms
+20dB
0dBFS
+10dB -10dBFS
-20dBFS(DIG.IN)
LINE IN
200mV 0dB
-20dBFS
-10dB
-30dBFS
-20dB
-40dBFS
-30dB
-40dB

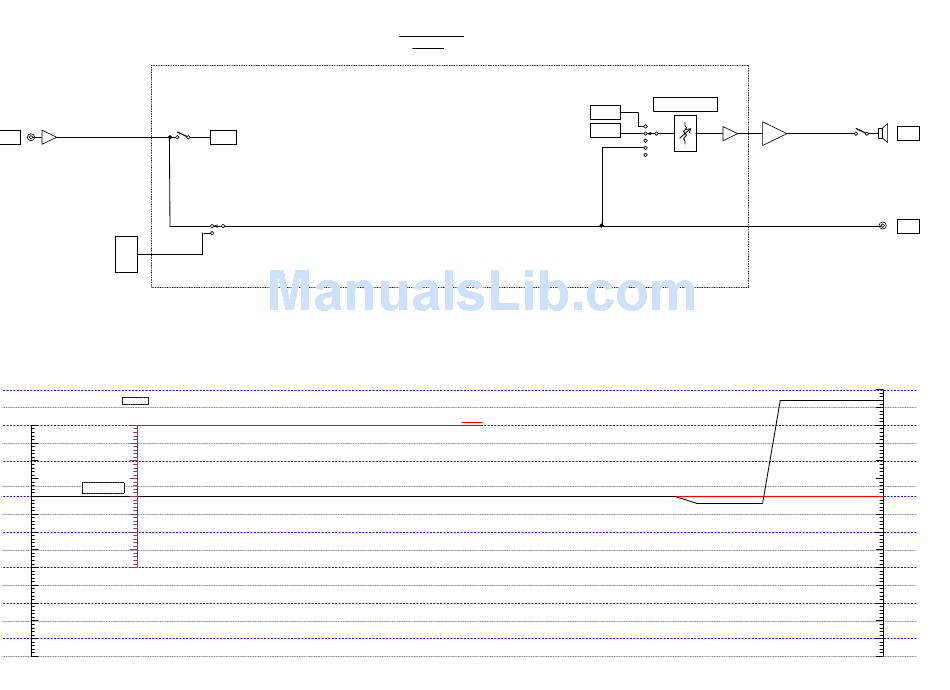

LEVEL DIAGRAM
TO
MAIN
ZONE2
MAX SIGNAL LEVEL 2.00Vrms
92
SURR.BACK
FRONT/ZONE ASSIGN
from
F-ch
from
DA SB-ch
＋
-2.0dB
SPEAKER
OUT
LINEOUT
(AVR2112 ONLY)
+30dB
SP OUT
4.24Vrms/8Ω
+20dB
+10dB
LINE OUT
0dB
200mVrms
-10dB
-20dB
-30dB
-40dB
