Denon AVR-1912E3 Service Manual page 70

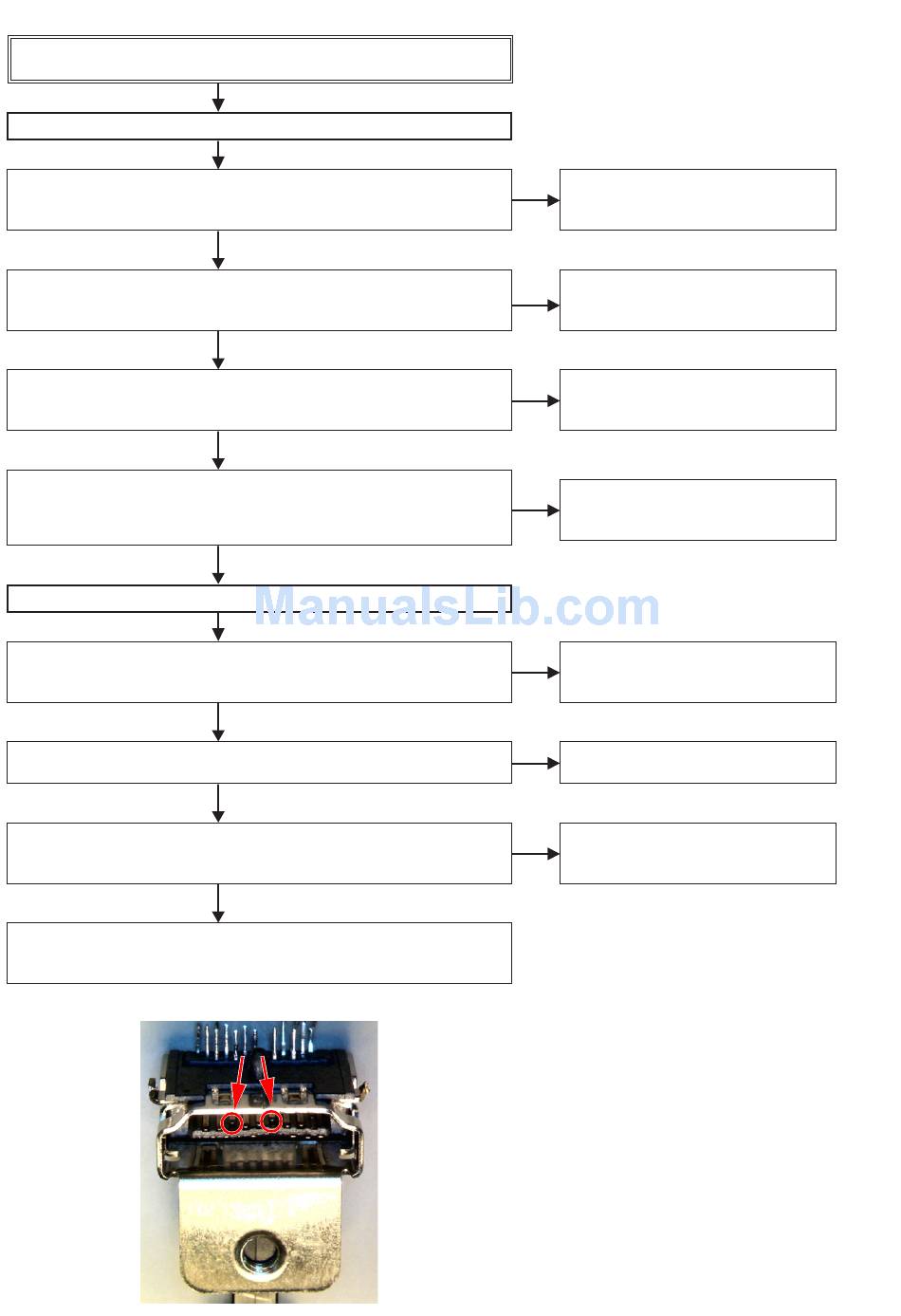

Check operation of each device.
(AMP source : BD / Video input of player : 480P / Connect the TV.)
Check operation of U1(ADV3002).
(20) Check power supply.
Are 5V or 3.3V supplied to U1 (each power supply pin)?
Refer to [Detail C] of the substrate for test point.
(21) Check RESET.
Is RESET waveform confirmed in U1 (36pin), when the power is turned on?(If
the waveform is not the reference waveform, proceed to NO.)
(22) Check Control signal (I2C).
Is waveform confirmed in TP[HSCL/HSDA], when the power is turned on? (If
the waveform is not the reference waveform, proceed to NO.)
(23) Check output signal.
Is TMDS waveform confirmed in 25pin/26pin/28pin/29pin/31pin/32pin/34pin/35pin.
Is communication waveform of DDC_SCL/DDC_SDA confirmed in
67pin/68pin? (If the waveform is not the reference waveform, proceed to NO.)
Check operation of IC9(ADV7623)
(24) Check power supply.
Are 1.8V or 3.3V supplied to IC9(each power supply pin)?
Refer to [Detail D] of the substrate for test point.
(25) Check xtal oscillator.
Is oscillation of XTAL1(28.6363MHz) transmitted?
(26) Check RESET.
Is RESET waveform confirmed in IC9 (97pin), when the power is turned on? (If
not reference waveform, proceed to "NO".)
The pattern and circuit from the HDMI connector (JACK6) to the IC(IC9) is
defective, or HDMI output circuitry is defective (IC9 and surrounding circuitry).
Replace the IC9.
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.
YES
YES
YES
YES
YES
YES
YES
NO
The power supply circuitry is defective.
NO
The RESET circuitry (Q7 and surrounding
circuitry) or U1 is defective.
NO
The pattern is defective of the HSCL/HSDA
line.
NO
The U1 is defective.
NO
The power supply circuitry is defective.
NO
The XTAL1 or IC9 is defective.
Replace the new parts.
The RESET circuitry (Q18 and surrounding
NO
circuitry) or IC9 is defective.
Replace the new parts.
