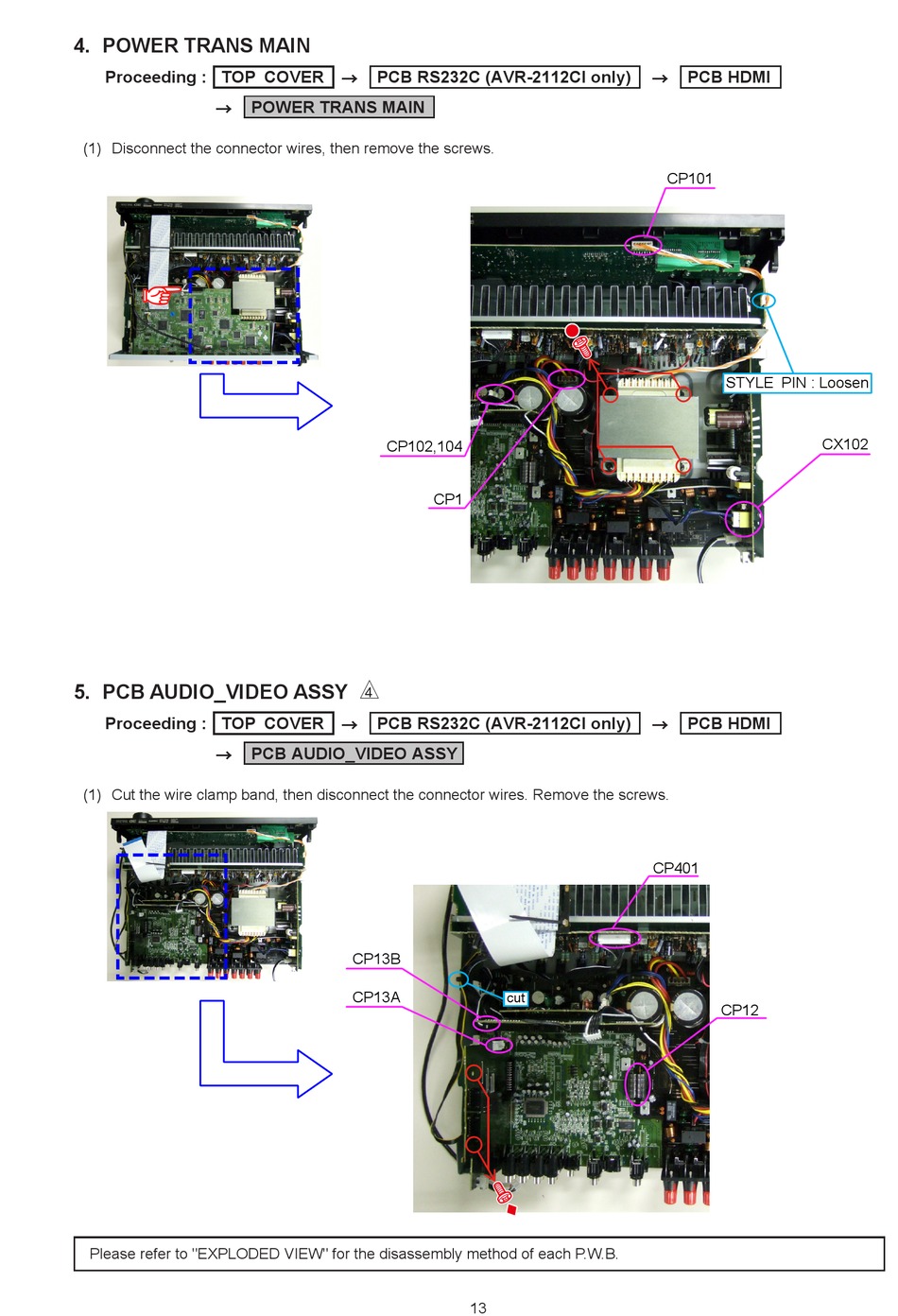

4. POWER TRANS MAIN

Proceeding : TOP COVER
→
(1) Disconnect the connector wires, then remove the screws.

5. PCB AUDIO_VIDEO ASSY

Proceeding : TOP COVER
→
(1) Cut the wire clamp band, then disconnect the connector wires. Remove the screws.
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B.
PCB RS232C (AVR-2112CI only)
→
POWER TRANS MAIN
CP102,104
f
PCB RS232C (AVR-2112CI only)
→
PCB AUDIO_VIDEO ASSY
CP13B
CP13A
CP1
cut
13
PCB HDMI
→
CP101
STYLE PIN : Loosen
PCB HDMI
→
CP401
CP12
CX102
