Jetpik JP-50 User Manual

Power floss system
Hide thumbs Also See for JP-50:

Advertisement

Quick Links

Jetpik
Model JP-50/200
Power Floss System

Advertisement

loading

Related Manuals for Jetpik JP-50

Summary of Contents for Jetpik JP-50

  • Page 1 Jetpik Model JP-50/200 Power Floss System...

  • Page 2: Table Of Contents

    1. Important safeguards. 2. Appliance description. 3. Getting started. 4. Care of your Jetpik unit. 5. Troubleshooting. 6. Specs 7. Limited warranty.

  • Page 3: Important Safeguards

    To avoid the risks of electric shock, personal injury or fire:  Do not plug the charger into a voltage that is different from the voltage specified on the device or charger.  The Adapter for Jetpik is designed to work within a range of 100 to 240 AC Volts.
  • Page 4  The charger for Jetpik is designed to be linked to standard USB output which is 4.75 to 5.25 V DC. Please don’t plug the charger to any other voltage and may cause damage of the equipment.  Do not use this appliance if it has been dropped into water or other liquid and is not working properly. Contact Jetpik or your local dealer, which can be found at www.jetpik.com.
  • Page 5  Jetpik is a personal care device and is not intended for use on multiple patients or in a dental practice or institution. ...
  • Page 6 Contact your dental professional if excessive gum bleeding occurs after using this appliance or if bleeding continues to occur after one weeks use.  Discontinue using Jetpik and contact a physician/dentist if discomfort or pain is experienced.  Consult your physician if you have any other medical concerns.

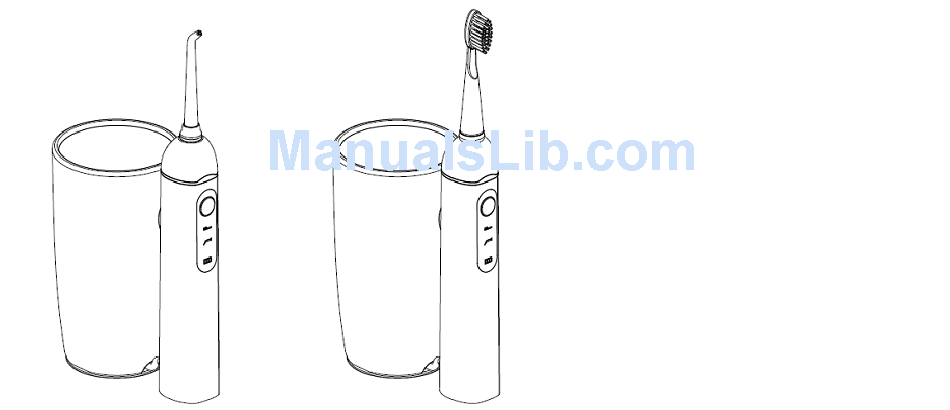

  • Page 7: Appliance Description

    2．Appliance Description. Nozzle release button On/ off button Pressure setting Brush( JP200 only) Nozzle Display Battery Water inlet...
  • Page 8 ① Nozzle ② Floss capsule ③ Handle ④ Charger ⑤AC Adapter ⑥Travel case ⑦Water supply tube ⑧UV Sanitizer ⑨ Cup...

  • Page 9: Getting Started

    Initial Battery Charging. Charge Jetpik for 24 hours before first use. To do so connect the charger to your mains socket and place the handle onto the cradle. A flashing green LED will indicate that the unit is charging and will change to a steady green when the battery is fully charged.
  • Page 10  When using the Jetpik cup supplied - insert the quick connector of the extendable hose on the lower of the cup to the water inlet on the Jetpik handle as shown and pull the tube to a comfortable length and fill cup with water. (see below Figure 1) ...
  • Page 11 Push Fig1 Fig2 Push Prime the floss: Press and move the pressure adjust button to top III position and aim the nozzle into the sink and press the “On/Off” button. Wait a few seconds and when you see water coming out from the nozzle and the floss string coming out from the capsule. Then turn off the unit by pressing the “On/Off”...
  • Page 12 Using. If you have never used a water irrigator before it is recommended to start at a lower setting by move the pressure adjust button to close to I position. You can gradually increase the pressure providing you don’t experience any gum bleeding or discomfort. Lean over the sink and place the nozzle into your mouth and position the tip towards your teeth and press the On/Off button.
  • Page 13 Using the Power brush function (JP200) 1. Clip the power tooth brush head to your Jetpik handle as showing. If you have the jet nozzle on you have to replace it with the brush head. 2. Put comfort amount of toothpaste onto brush and touch your teeth surface. Press on/off button to start the power brush.

  • Page 14: Care Of Your Jetpik Unit

    4．Care of your Jetpik unit. Empty the cup and keep your Jetpik dry if it is not going to be used for a while. Use tap or pure water to rinse your unit if you have used it to deliver mouthwash or antibacterial solutions.

  • Page 15: Troubleshooting

    When the appliance reaches “end of life” and prior to disposal, please remove the rechargeable battery from the handle by knocking and breaking the plastic cover. Then cut the wires to remove the battery from the Jetpik. Now you can recycle or dispose of the battery based on your local regulations.
  • Page 16 Jetpik doesn’t start. Battery not charged. Be sure the power charger is functioning and the red LED is on when placed in the cradle. Fully charge for 24 hours and try again. Power tooth brush is not running. Brush tip is not in position or brush motor is...

  • Page 17: Specs

    6．Specs 1. AC Adapter range: 100 to 240 V AC 2. AC Adapter output: 5V, 1000mA min. USB connector 3. Irrigator pressure range: 30 to 70 PSI adjustable 4. Irrigator jet frequency: 20 to 25 pulse per second 5. Water prove: IPX7...

  • Page 18: Limited Warranty

    7．Limited Two-Year Warranty Jetpik is warranted to the original consumer to be free from defects in materials and workmanship for 2 years from the date of purchase. Consumers will be required to submit the original purchase receipt and the entire appliance to support a warranty claim.
  • Page 19 Jetpik® www.jetpik.com Jetpik® is a trademark of Nucreatronics Electronic Technology (Shanghai) Co.,LTD registered in USA, Europe, Brazil, China. Jetpik USA: Ad:16453 Old Valley Blvd. City of Industry, CA 91744, USA. Tel: +1 626-330-0808 Jetpik Europe: 8 Westmayne Industrial Park, Bramston Way, Basildon, Essex. SS15 6TP , UK...

This manual is also suitable for:

Jp-200
