Summary of Contents for Open iConnectAccess624

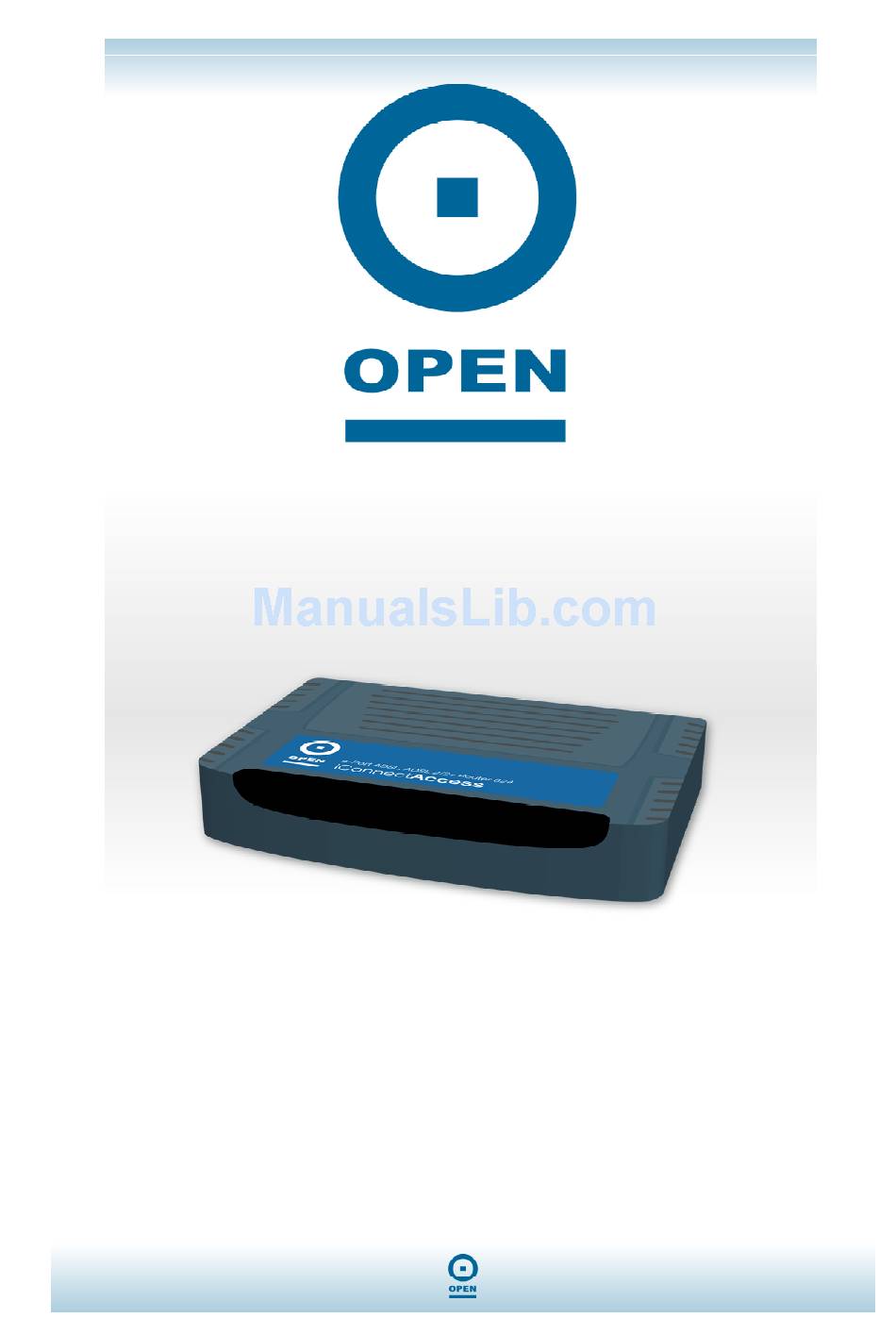

- Page 1 Technical Reference / User Guide...
-
Page 2: Technical Reference
Technical Reference Copyright© 2006 OPEN Networks Pty Ltd. All rights reserved. The content of this manual is subject to change without notice. The information and messages contained herein are proprietary to OPEN Networks Pty Ltd. No part of this manual may be translated, transcribed, reproduced, in any form, or by any means without prior written permission by OPEN Networks Pty Ltd. -
Page 3: Table Of Contents
LAN Set Up ..................... 17 Accessing The LAN Configuration Screen................17 Enabling DHCP....................18 Management IP....................21 To Change The iConnectAccess624 IP Address:............... 21 Ethernet Switch....................22 Wide Area Network (WAN) Setup ..............24 Connection Types ................... 25 PPPoE Connection Type Set Up: ..................25 PPPoA Connection Type Set Up: .................. - Page 4 Technical Reference Multicast......................58 Static Routing....................60 Dynamic Routing..................... 62 Firewall ........................ 64 Port Forwarding ....................64 Custom Port Forwarding ..................... 67 Enable Incoming ICMP Ping ................69 Access Control....................69 DMZ Configuration ..................71 IP Filters......................73 Tools ........................75 Remote Log ....................
-
Page 5: Document Conventions
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. -
Page 6: Introduction
The iConnectAccess624 is fully compatible with all computers which support an Ethernet interface and are running a TCP/IP protocol stack. So, plug in the iConnectAccess624 (refer to the Quick Start Guide), configure it (per your ISP’s instructions) and enjoy fast Internet access as never before! www.opennw.com... -
Page 7: System Requirements
Technical Reference System Requirements A Pentium MMX 233MHz or greater computer, installed with the following: ® CD-ROM drive; Ethernet card installed with TCP/IP Protocol (required only if you are connecting to the Ethernet port of your router);... -
Page 8: Your Iconnectaccess624 At A Glance
Your iConnectAccess624 At A Glance The iConnectAccess624 has different ports and LEDs. The following list details these: Ports And Buttons The phone cable connects from the ADSL port of the iConnectAccess624 to the ADSL port of your line filter. (ADSL Line) RESET This button resets your iConnectAccess624 to factory default settings. -
Page 9: Reset
During this time the reset is in progress. Do NOT power the iConnectAccess624 off whilst it resets. The iConnectAccess624 will be reset to its factory defaults and once the indicator lights have returned to green (non-blinking), the reset is complete. -
Page 10: Front Led Panel
Technical Reference Front LED Panel The following table displays the LED Status of each of the iConnectAccess624’s LEDs and the definitions of each: ADSL Front Panel LED Status Definition Steadily Lit Up Power is supplied to the iConnectAccess624. POWER... -
Page 11: Installing Your Iconnectaccess624
From the TCP/IP Properties screen, click the IP Address tab to make it active. step 6 Highlight the Obtain an IP Address Automatically radio button, and click OK to save the settings. step 7 Ensure that the iConnectAccess624 is powered on. Restart your system when prompted. www.opennw.com... -
Page 12: For Windows 2000 / Windows Xp
From the General tab of Internet Protocol (TCP/IP) Properties window, highlight the Obtain an IP Address Automatically radio button, and click OK. step 6 Click OK again to close the dialog. step 7 Ensure that your iConnectAccess624 is powered on. Restart your system when prompted. www.opennw.com... -
Page 13: Setting Up Your Iconnectaccess624
Technical Reference Setting Up Your iConnectAccess624 This section will guide you through your iConnectAccess624’s configuration via the web interface. The iConnectAccess624 is shipped with a standard PPP configuration. Default Settings The following table lists the default settings for your iConnectAccess624. These settings may change depending on your DSL Provider / ISP. -
Page 14: Log Into Your Iconnectaccess624
Login screen appears, you may need to delete your temporary Internet files. (ie, basically flush the cached web pages). Logging in allows you to access the iConnectAccess624’s web interface. This consists of the following six tabs that provide all the options you need to configure your... -
Page 15: Home Tab
Technical Reference Home Tab After you have logged in, the first screen to appear will be the Home tab screen. This is the screen from which you navigate to all other modem configuration options, by clicking the appropriate tab. -
Page 16: Setup Tab
Technical Reference Setup Tab The Setup tab allows you to set up the LAN and WAN sides of your networks, including: DHCP Configuration; Management IP; New WAN Connections; Modem Configuration. Accessing The Setup Main Screen: From any screen of the web interface, Click Setup. -
Page 17: Lan Set Up
Technical Reference LAN Set Up By default, your iConnectAccess624 has the DHCP server (LAN side) enabled. If you already have a DHCP server running on your network, you must disable one of them; if you connect a second DHCP server into the network, you will experience network errors and the network will not function normally. -
Page 18: Enabling Dhcp
Technical Reference Enabling DHCP step 1 Follow steps 1 to 2 of the Accessing The LAN Configuration Screen procedure. step 2 In the Enable DHCP Server area of the screen, highlight the Enable DHCP Server radio button. step 3 Enter the Start IP Address in the Start IP: field. - Page 19 Check this checkbox if the 624 is acting as a DHCP client. The 624 will Obtain an IP address automatically receive an IP Address from the specified DHCP server. This field will be populated when the iConnectAccess624 receives an IP IP Address Address from a DHCP Server.
- Page 20 Highlighting the Enable DHCP Relay radio button configures the Enable DHCP Relay iConnectAccess624 to forward the DHCP request to a remote DHCP server. Enter the remote DHCP server address in the Relay IP field. This will disable the iConnectAccess624’s DHCP server and relay Server and Relay Off functionality.
-
Page 21: Management Ip
If you change this address from the default, you will need to reconnect using your new IP Address. To Change The iConnectAccess624 IP Address: step 1 Follow steps 1 to 2 of the Accessing The LAN Configuration Screen procedure. The following appears:... -
Page 22: Ethernet Switch
Technical Reference NOTE: The Domain Name is used in conjunction with the Hostname to identify the iConnectAccess624 uniquely. To access the iConnectAccess624’s web pages you can type the IP 192.168.1.254 or mygateway.ar7 in the web browser. Using the Hostname in the browser requires the workstation to have its DNS server set to the iConnectAccess624. - Page 23 Technical Reference step 2 From the Physical Port1 drop-down list, select the ethernet port for which you wish to change the hardware setting. The options are: Auto, 10\Half Duplex, 10\Full Duplex, 100\Half Duplex and 100\Full Duplex. step 3 Edit each Ethernet port as required.
-
Page 24: Wide Area Network (Wan) Setup
Before the router will pass any data between the LAN and WAN interfaces, the WAN side of the iConnectAccess624 must be configured. Depending on your DSL service provider or ISP, you will need some (or all) of the information outlined below before you can properly configure the WAN. -
Page 25: Connection Types
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. - Page 26 Technical Reference step 6 Enter your DSL Provider / ISP username and password in the Username and Password fields. step 7 Enter the DSL Provider / ISP-provided VPI and VCI settings. step 8 Click Connect. step 9 Click Apply, then click Save / Restart Menu. The following appears: step 10 Click Save All to save the changes permanently.
- Page 27 Delivery of good-quality audio or video streams typically requires QoS capabilities. Three different Quality Of Service options are available in the iConnectAccess624: UBR, CBR and VBR. The QoS selected here must be supported by your ISP. By default this is set to UBR.
-
Page 28: Pppoa Connection Type Set Up
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. - Page 29 Technical Reference step 8 Enter the VPI and VCI settings as supplied by your DSL service provider / ISP. step 9 Click Connect. step 10 Click Apply then click Save / Restart Menu. The following appears: step 11 Click Save All to save the changes permanently.
- Page 30 Delivery of good-quality audio or video streams typically requires QoS capabilities. Three different Quality Of Service options are available in the iConnectAccess624. These are UBR, CBR and VBR. The QoS selected here must be supported by your ISP. By default this is set to UBR.
-
Page 31: Bridged Connection Type Set Up
If you need to use the VPI and VCI values in an existing connection, you will need to open the connection and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values unless sharing is enabled. - Page 32 Technical Reference step 7 From the QoS drop-down list, select the quality of service. Leave the default value if you are unsure of this. step 8 Click Apply. NOTE: If you have added a Bridged connection and need to edit it, once you make a change and click the Apply button, and DHCP is enabled, the following warning message may appear.
- Page 33 Delivery of good- quality audio or video streams typically requires QoS capabilities. There are three different quality of service options available in the iConnectAccess624. These are UBR, CBR and VBR. The QoS selected here must be supported by your ISP. By default this is set to UBR.
-
Page 34: Static Connection Type Set Up
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. - Page 35 This will be provided by your ISP. The default gateway is a host to which local computers send data that is destined for a non-local machine. On the iConnectAccess624, configure the Default Gateway default gateway address here to reach all computers that are not on the same local IP subnet.
- Page 36 Delivery of good-quality audio or video streams typically requires QoS capabilities. Three different quality of service options are available in the iConnectAccess624. These are UBR, CBR and VBR. The QoS selected here must be supported by your ISP. By default this is set to UBR.
-
Page 37: Dhcp Connection Type Set Up
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. - Page 38 Technical Reference NOTE: You can renew the DHCP address at any time by clicking Renew. However, in most cases you will never need to use this button as the process runs automatically. step 9 Click Apply then click Save / Restart Menu. The following appears: step 10 Click Save All to save the changes permanently.
- Page 39 Delivery of good-quality audio or video streams typically requires QoS capabilities. Three different quality of service options are available in the iConnectAccess624. These are UBR, CBR and VBR. The QoS selected here must be supported by your ISP. By default this is set to UBR.
-
Page 40: Classical Ip Over Atm (Clip) Connection Set Up
If you need to use the VPI and VCI values in an existing connection, you will need to open it and edit the setting. It is not possible to have more than one connection using the same VPI/VCI values. -
Page 41: Modify An Existing Connection
Technical Reference step 11 Click Save All to save the changes permanently. Modify An Existing Connection To Modify An Existing Connection: From any web interface screen, Click Setup, then click the connection you wish to modify from the menu ... -
Page 42: Modem Set Up
Leave the default setting if you are unsure of this value. NOTE: The iConnectAccess624 is pre-configured to detect the ADSL modulation standard automatically. In most cases, this screen should not be modified. step 3 Click Apply then click Save / Restart Menu. The following appears: step 4 Click Save All to save the changes permanently. - Page 43 Technical Reference The following table lists the ADSL Handshake screen fields and their definitions: Field Description T1413 ANSI T1.413-1998 GDMT G.dmt (G.992.1) GLITE G.lite (G.992.2) MMODE Multi-Mode (the modulation is automatically detected) Asymmetric Digital Subscriber Line has the ability to transmit data at high ADSL speeds over a phone line while remaining available for (voice) phone use.
-
Page 44: Advanced Tab
Technical Reference Advanced Tab The iConnectAccess624 supports a host of advanced networking and routing features including security, port configuration, and plug and play capability. UPnP Universal Plug and Play is a networking architecture that provides compatibility among networking equipment, software and peripherals such as games consoles, digital cameras, and other systems that connect by TCP/IP. - Page 45 Description Universal Plug and Play (UPnP) is a standard that uses Internet and Web protocols to enable the iConnectAccess624 to be plugged into a network and automatically know about each other. With UPnP enabled, when a user plugs Enable UPNP...
-
Page 46: Sntp
SNTP Simple Time Network Protocol ensures that computer clock times can be synchronised in a network of computers to the millisecond. To Configure SNTP For The iConnectAccess624: From any web interface screen, step 1 Click Advanced, then SNTP. The following appears: step 2 Click the Enable SNTP checkbox. - Page 47 The IP Address or fully qualified name of a backup time Tertiary SNTP Server source. Time in seconds that the iConnectAccess624 will wait for an Timeout SNTP server to respond. Polling period in minutes that the iConnectAccess624 checks Polling Interval time with the SNTP server.
-
Page 48: Snmp
Technical Reference SNMP SNMP stands for Simple Network Management Protocol. It is used to monitor the state of the network remotely, collecting information about Internet traffic events and device status and storing these in a database. For example, SNMP can be used to monitor the amount of traffic passing through the network. - Page 49 Technical Reference step 8 Click Save All to save the changes permanently. The following table lists the SNMP Management screen fields and their definitions: Field Description Check this checkbox to enable SNMP (Simple Network Management Enable SNMP Agent Protocol) on this device. Enter the SNMP settings in the Community area of the screen.
-
Page 50: Ip Qos
IP QoS is often critical to maintain VoIP session quality. IP QoS services in the iConnectAccess624 are applicable to the output device (LAN side). This means that the IP QoS is associated with any transmitted traffic from the iConnectAccess624. - Page 51 The following table lists the IP QoS screen fields and their definitions: Field Description Choose a This lists the connection names that are configured on the iConnectAccess624. Connection Select a WAN or LAN connection here. Low Priority Weight / These two fields allow you to select the weights of the Medium and Low Priority...
- Page 52 The IP QoS page appears when you click the Add button in the QoS Setup screen. When setting rules, each rule is a matching criterion that identifies the application traffic to be transmitted by the iConnectAccess624 using one of the three priority queues – High, Medium or Low.
- Page 53 Technical Reference The following table lists the IP QoS Traffic Rule screen fields and their definitions: Field Description This lists the connection names that are configured in the Rule Name iConnectAccess624. Source IP The IP address of the device that is the sending the information.
-
Page 54: Lan Clients
Technical Reference LAN Clients If DHCP is used, all current DHCP clients are automatically registered in the LAN Client database. However, if a Static IP Address is used on a LAN device and you need this to be visible via the WAN, you must add its IP address to the LAN Clients list. Once the IP address has been added you will be able to apply Port Forwarding, IP Filtering and QoS rules to it. -
Page 55: Bridge Filters
An optional hostname can be assigned to the above address. Bridge Filters The Bridge filtering mechanism enables users to define rules which allow/deny access through the iConnectAccess624 via the hardware (MAC Address) of network devices. The User Interface for Bridge Filter allows the following functionality: Adding/Editing/Deleting filter rules;... - Page 56 Technical Reference NOTE: Entering 0s or blanks in the Source or Destination fields means ALL MAC Addresses are specified. step 9 Select the protocol to be used from the Protocol drop-down list. step 10 Select the mode with desired filtering type from the Mode drop-down list.
- Page 57 Technical Reference Click Save All to save the changes permanently. Hidden Bridge Filter Rules: The Bridge filter table contains 3 hidden rules, which are entered automatically by the system to ensure you do not "lock" yourself out of the system. These include: Any ARP frames are permitted to pass through the system.
-
Page 58: Multicast
Technical Reference Multicast Multicasting is a form of limited broadcast. UDP is used to send datagrams to all hosts that belong to what is called a "host group." A host group is a set of one or more hosts identified by the same destination IP address. - Page 59 IGMP (Internet Group Multicast Protocol) is a session-layer (layer-3) protocol used to establish membership in a Multicast group. Checking this will enable the iConnectAccess624 to receive multicast traffic. Refer to RFC 1112 and RFC 2236 for information on IGMP versions 1 and 2 respectively.
-
Page 60: Static Routing
Technical Reference Static Routing If the iConnectAccess624 is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway down which network information must travel to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the iConnectAccess624. - Page 61 This is the IP address of the next hop router in the path of the destination network. When a packet is ready to be sent to a destination, the iConnectAccess624 sends it on to the Gateway. The gateway examines the destination address in the header and passes the packet along to another Gateway router, chosen by a route-finding algorithm.
-
Page 62: Dynamic Routing
Technical Reference Dynamic Routing Using Routing Information Protocol (RIP), dynamic routing allows the iConnectAccess624 to adjust to physical changes in the network automatically. It determines the route through which the packets travel based on the fewest number of hops between the source and destination. - Page 63 RIP V1-Compatible is selected, routing data will be sent in RIP v2 format using multicasting. The direction determines the means through which RIP routes will be updated. Selecting In means that the iConnectAccess624 will only incorporate received RIP information. Selecting Out means that the iConnectAccess624 will only Direction send out RIP information.
-
Page 64: Firewall
Internet, or play Internet games. When users send this type of request to your network via the Internet, the iConnectAccess624 will forward those requests to the appropriate computer. Port Forwarding can be used with DHCP-assigned addresses but remember that a DHCP address is dynamic (not static). - Page 65 Technical Reference To Configure Port Forwarding: From any screen in the web interface, step 1 Click Advanced, then Port Forwarding. The following screen appears: step 2 From the WAN Connection drop-down list, select the connection type for which you wish to add the firewall rule.
- Page 66 Technical Reference step 9 Click Save All to save the changes permanently. The following table lists the Port Forwarding screen fields and their definitions: Field Description WAN Connection This is the list of connections defined in the WAN Setup area of the interface.
-
Page 67: Custom Port Forwarding
Technical Reference Custom Port Forwarding step 1 From the Port Forwarding screen, click Custom Port Forwarding to define Port Forwarding rules. The following screen appears: step 2 From the Connection: drop-down list, select the connection name for which you wish to set up port forwarding rules. - Page 68 The Network Mask of the device that is receiving the traffic. The port number/port range between which the traffic will arrive at the Destination Start Port iConnectAccess624 WAN interface. The port range must be between 1 – Destination End Port 65535.
-
Page 69: Enable Incoming Icmp Ping
Access Control The iConnectAccess624’s Access Control management feature opens access from the Internet (WAN) or (LAN) to the router’s management ports (Web, Telnet, SSH, FTP, TFTP, SNMP). Note that there are security risks associated with this action, and for this reason, remote management is restricted to computers on the network that are specified in the IP Access Control List. - Page 70 Global Enable / Disable that enables or disables the ACL. Services that can be opened on the LAN and WAN sides of the Service Name (WAN / LAN) iConnectAccess624. The options are: Telnet, Web, FTP, TFTP, SNMP. Select as many as required. IP Access List List of allowed IP Addresses.
-
Page 71: Dmz Configuration
Technical Reference DMZ Configuration Setting a computer (on your local network) as a De-Militarised Zone (DMZ) forwards any network traffic that is not redirected to another computer via the port-forwarding feature to the computer's IP address. This opens access to the DMZ computer from the Internet. - Page 72 Technical Reference step 8 Click Save All to save the changes permanently. The following table lists the DMZ Settings screen fields and their definitions: Field Description Enable DMZ Enables / Disables DMZ feature. Select your WAN Connection List of connections defined in the WAN Setup.
-
Page 73: Ip Filters
Technical Reference IP Filters IP Filters allow you to block network access based on a user’s computer IP Address on the local LAN. You can use this option to block specific traffic (eg, to block web access) or any traffic from a computer on your local network. If the traffic type is set to Any, all network traffic from that computer will be blocked. - Page 74 Technical Reference step 6 Click Save All to save the changes permanently. The following table lists the IP Filtering screen fields and their definitions: Field Description Select LAN Group Select a LAN (as specified in the LAN Configuration screen) from the drop-down list.
-
Page 75: Tools
Technical Reference Tools The Tools tab of the iConnectAccess624 web interface allows you to customise and debug your iConnectAccess624, update the firmware and perform network diagnostics. Its options include: Remote Log; User Management; Update Firmware; Ping Test;... -
Page 76: Remote Log
Technical Reference Remote Log Remote Log enables logging in information to be sent to an external Syslog server. This allows for logging information to be retained for an extended period, depending on the capacity of the Syslog server. When selecting a logging level, Panic will log only major events, where Info will log all events from Panic to Info. - Page 77 Technical Reference step 6 Click Save All to save the changes permanently. The following table lists the Remote Log Settings screen fields and their definitions: Field Description Select the level of logging required. The selected option will Log Level include the following: Panic, Alert, Critical, Error, Warning Notice, Information or Debug.
-
Page 78: User Management
Technical Reference User Management You can change your iConnectAccess624’s username and password by clicking User Management from the Tools menu list. From here you can change the login name and password. You can also change the idle timeout; you will need to log back onto the iConnectAccess624 once the timeout expires. - Page 79 Click Save All to make the changes permanent. NOTE: If you forget your password, press and hold the reset to factory defaults button for 10 seconds (or more). The iConnectAccess624 will reset to its factory default configuration and all customised configurations will be lost. www.opennw.com...
-
Page 80: Update Gateway
NOTE: The firmware upgrade should take around five minutes to complete. Once complete, the iConnectAccess624 will reboot, and you will then need to log back into it. Do not remove power from the iConnectAccess624 during the firmware upgrade procedure. -
Page 81: Ping Test
This can be used on a LAN or across the Internet. Once you have configured your iConnectAccess624, it is a good idea to ensure you can Ping a network device. If your ISP has provided its gateway address, you can try to ping this address. -
Page 82: Modem Test
Technical Reference Modem Test The Modem Test menu item allows you to check whether your iConnectAccess624 is properly connected to the WAN Network. There are four test types, each of which may take a few seconds to complete. The OAM loopback cells are used to verify the connection between the iConnectAccess624 and the ATM network. - Page 83 Technical Reference The following table lists the Modem Test screen Test Type field and its definitions: Field Options Description Connectivity to the BRAS server can be verified by Test Type F5 End initiating a F5 Seg loopback via the DSLAM and to the authentication server.
-
Page 84: Save / Restart Menu
The following table lists the Save / Restart screen buttons and their definitions: Field Description Click this button to save the current configuration of the iConnectAccess624 Save All permanently. If you do restart the system without saving your configuration, the iConnectAccess624 will revert back to the previously saved configuration. -
Page 85: Status
Technical Reference Status The Status tab of the iConnectAccess624 web interface allows you to view the Status/Statistics of different connections and interfaces, and consists of the following: Network Statistics; Connection Status; DHCP Clients; Modem Status; ... -
Page 86: Network Statistics
Technical Reference Network Statistics The Network Statistics area will show you details of transmitted and received packets. To View Network Statistics: From any screen in the web interface, Click the Status tab, then click Network Statistics. A screen with details ... -
Page 87: Connection Status
The WAN IP Address is displayed here when the connection is established. ADSL connection status is displayed here. This is the connection between your State iConnectAccess624 and the DSLAM at your ISP. In normal operation, this must be connected. Online The duration of the Internet connection time for the Connection type specified. -
Page 88: Dhcp Clients
Technical Reference DHCP Clients Select the DHCP Clients menu item from the Status menu list to view the list of DHCP clients on your LAN. To View DHCP Clients: From any screen in the web interface, Click the Status tab, then click DHCP Clients. -
Page 89: Modem Status
Technical Reference Modem Status Select the Modem Status menu item from the Status menu list to view the Status and Statistics of your broadband (DSL) connection. To View The Modem Status: From any screen in the web interface, Click the Status tab, then click Modem Status. A screen with details ... -
Page 90: Product Information
You can verify product information such as model, driver, hardware and software versions in the Product Information area of the web interface. To View iConnectAccess624 Product Information: From any screen in the web interface, Click the Status tab, then click Product Information. A screen with ... -
Page 91: System Log
System Log You can view all logged information in the System Log area of the web interface. To Display The iConnectAccess624 System Log: From any screen in the web interface, Click the Status tab, then click System Log. A screen with details ... -
Page 92: Index
Front LED Panel, 10 Connection, Modification Of, 41 Home Tab, 15 DHCP Connection, 37 iConnectAccess624 Log In, 14 PPPoA Connection, 28 iConnectAccess624 Ports and Buttons, 8 PPPoE Connection, 25 Static Connection, 34 iConnectAccess624 Ports And Buttons WAN, Configuration Of, 24 ADSL, 8 iConnectAccess624, Installation Of, 11 www.opennw.com...
