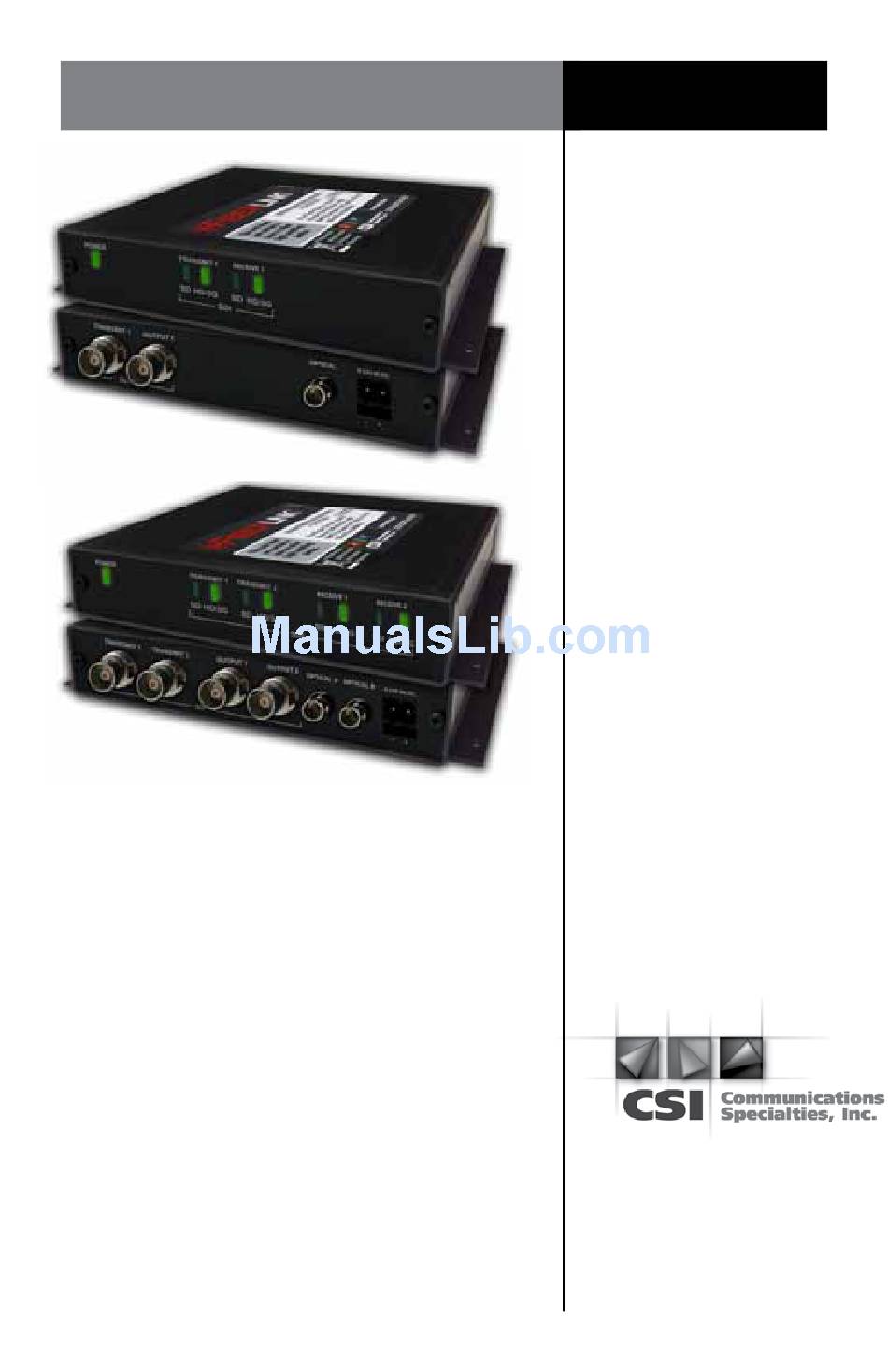

Communications Specialties' Fiberlink® 3500
Fiberlink®
3500 Series
2 or 4 Channel 3G/HD/SD-SDI Transmission
over one or two single mode or multimode
fibers.
User's Manual
This manual covers the
following models:
3516 Tx & 3517 Rx: 2 channels
bi-directional, one each way, one MM
or SM fiber.
3518 Tx & 3519 Rx: 4 channels bi-
directional, two each way, one MM
or SM fiber.
3526 Xr: 2 channels bi-directional,
one each way, two MM or SM fibers.
3528 Xr: 4 channels bi-directional,
two each way, two MM or SM fibers.
Download Specific Data Sheet
For Your Model at
www.commspecial.com
2 or 4 Channels of Broadcast quality
3G/HD/SD-SDI transmission over one
or two single mode or multimode
fibers.
The 3500 Series offers re-clocked
outputs, and the signal fidelity you
have come to expect from Fiberlink®!
World Headquarters
125 Comac Street
Ronkonkoma, New York 11779 USA
Tel:
(631) 273-0404
Fax: (631) 273-1638
info@commspecial.com
commspecial.com
Advertisement
Table of Contents
Related Manuals for Fiberlink 3500 Series
Summary of Contents for Fiberlink 3500 Series
- Page 1 2 or 4 Channels of Broadcast quality 3G/HD/SD-SDI transmission over one or two single mode or multimode fibers. Fiberlink® The 3500 Series offers re-clocked 3500 Series outputs, and the signal fidelity you have come to expect from Fiberlink®! 2 or 4 Channel 3G/HD/SD-SDI Transmission over one or two single mode or multimode fibers.
-
Page 2: Table Of Contents
Fiberlink® 6650 Optical Power Meter ......... . . 14 Fiberlink® 6652 and 6654 Dual Wavelenth Light Source ......14 Related Products . -
Page 3: Welcome
4 channels of 3G/HD/SD-SDI with or without pre-embedded audio and data over a single or dual fiber optic core. The Fiberlink 3500 Series is compatible with single mode or multimode fiber. The system delivers noise-free transmission that retains all of the signals’... -
Page 4: Part Number Specifications
LC ..........-L Page 4 Fiberlink® 3500 Bi-Directional Series User’s Manual P/N 129913 Rev B... -
Page 5: General Specifications
0V ±0.5V Rise/Fall Time <135 ps at 2.97 Gbps per SMPTE 424M; <270ps at 1.485 Gbps per SMPTE 292; 0.4 to 1.5ns at 270 Mbps per SMPTE 259M Fiberlink® 3500 Bi-Directional Series User’s Manual Page 5 P/N 129913 Rev B 01/23/14... -
Page 6: Optical Output
Number of Outputs * 2 or 4 BNC, 75 Ohms, non-inverting Signal Level 800mv ±10% DC Offset 0V ±0.5V * See Specific Data Sheet For Your Model Page 6 Fiberlink® 3500 Bi-Directional Series User’s Manual P/N 129913 Rev B 01/23/14... -
Page 7: Operating Loss Budget
** Distance specifications are approximate, based upon connecting a 3500 Transmitter to a 3500 Receiver, and are not guaranteed. CSI cannot estimate or guarantee operating loss budgets when the 3500 Series is used with other, non-Fiberlink devices. Operating loss budget must not be exceeded. See data sheet for your specific model(s). -
Page 8: Installation Instructions
Fiberlink® 3500 Series Installation Instructions The Fiberlink® 3500 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment. However, an Optical Power Meter, such as the Fiberlink® 6650, can be useful in determining optical loss budgets during your systems design and maintenance. -
Page 9: Alarm Switch Settings & Options
Disabled 3 (3518 & 3528 Only) Ch 3 Loss of Optical Signal Enabled Disabled 4 (3518 & 3528 Only) Ch 4 Loss of Optical Signal Enabled Disabled Fiberlink® 3500 Bi-Directional Series User’s Manual Page 9 P/N 129913 Rev B 01/23/14... -
Page 10: Indicator Leds
LED Indicators Fiberlink® 3500 Series Indicator LEDs The Fiberlink® 3500 Series has four integral indicator LEDs that are used to monitor the state of the unit. Card versions have an additional Alarm LED. Transmitter LEDs (For Each Channel) Status Definition Power Indicates that correct power has been applied. -
Page 11: Operating Pointers
An optical power meter, such as the Fiberlink® 6650, a visible light source, such as the Fiber- link® 6656, and a Dual Wavelength Light Source, such as the Fiberlink® 6652 for Multimode or 6654 for Single Mode, can greatly assist and expedite troubleshooting of fiber optic trans- mission systems and are recommended tools all installers should have available. -
Page 12: Maintenance And Repairs
Please see the Troubleshooting section of this manual for additional information. An optical power meter, such as the Fiberlink® 6650, a visible light source, such as the Fiberlink® 6656, and a Dual Wavelength Light Source, such as the Fiberlink® 6652 for Multimode or 6654 for Single Mode, can greatly assist and expedite troubleshooting of fiber optic transmission systems and are recommended tools all installers should have available. -
Page 13: Warranty
RMA numbers and repairs can be obtained from: Communications Specialties, Inc. 125 Comac Street Ronkonkoma, New York 11779 USA Tel: (631) 273-0404 Fax: (631) 273-1638 Please have your serial number available. Fiberlink® 3500 Bi-Directional Series User’s Manual Page 13 P/N 129913 Rev B 01/23/14... -
Page 14: Fiberlink® 6656 Visible Light Source
Accessories and Related Products Fiberlink® 3500 Series Fiberlink® 6656 Visible Light Source The Fiberlink® Visible Light Source provides a visible 650 nm laser output that can be used for identifying fiber breaks and individual fibers within fiber bundles, allow- ing for convenient, on-site testing of fiber networks dur- ing construction and maintenance procedures. -
Page 15: Related Products
Fiberlink® 3360 3G/HD/SD-SDI & 4 Pair AES Audio Series The Fiberlink® 3360 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to embed up to 8 channels (4 pairs) of AES/EBU digital audio. - Page 16 2 or 4 Channels of Broadcast quality 3G/HD/SD-SDI transmission over one or two single mode or multimode fibers. The 3500 Series offers re-clocked outputs, and the signal fidelity you have come to expect from Fiberlink®! Fiberlink® 3500 Series 2 or 4 Channel 3G/HD/SD-SDI Transmission...
